Description
Description
Manufacturer
CommScope
Product Description
890-960 MHz 6dB Fiberglass Omnidirectional Antenna
Product Narrative

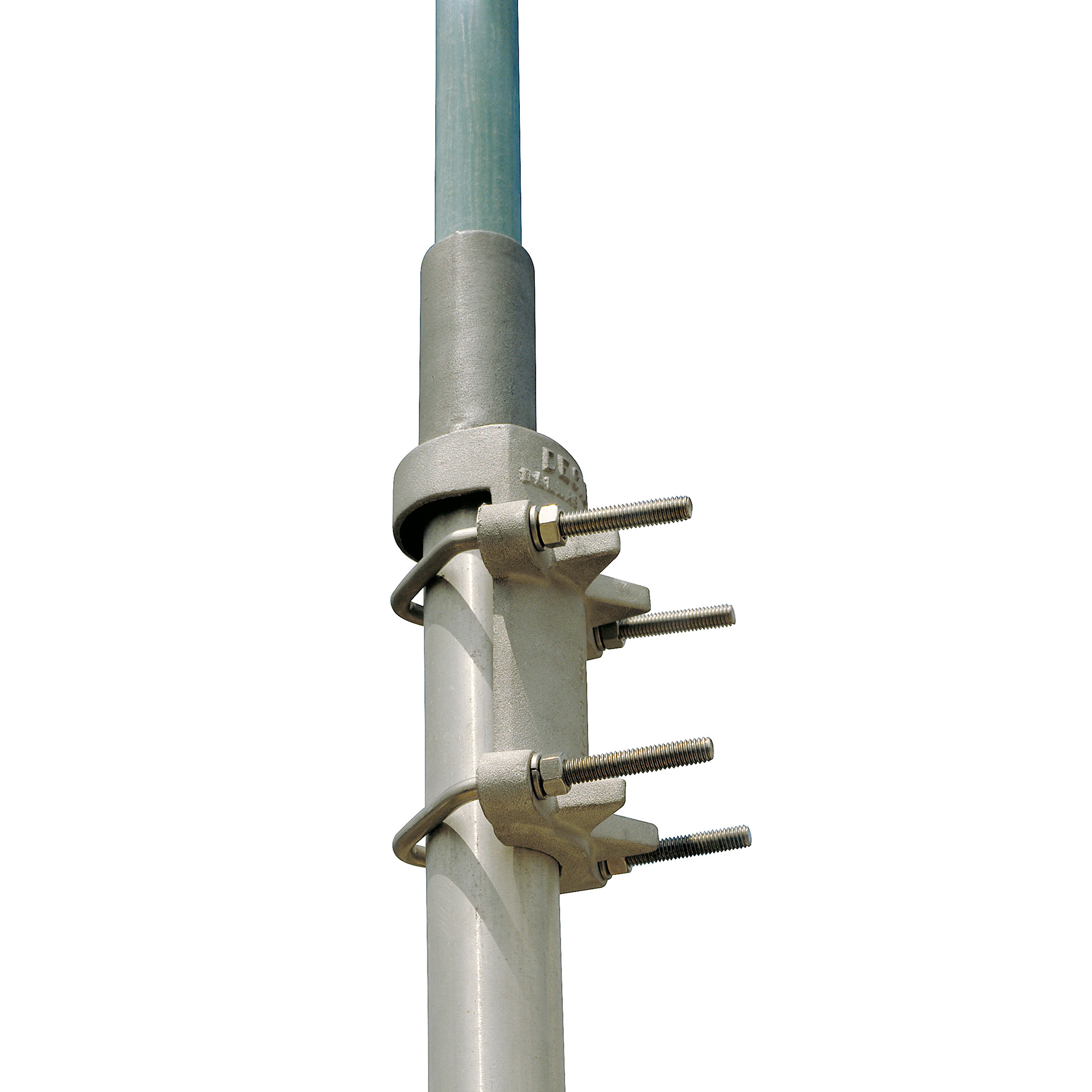

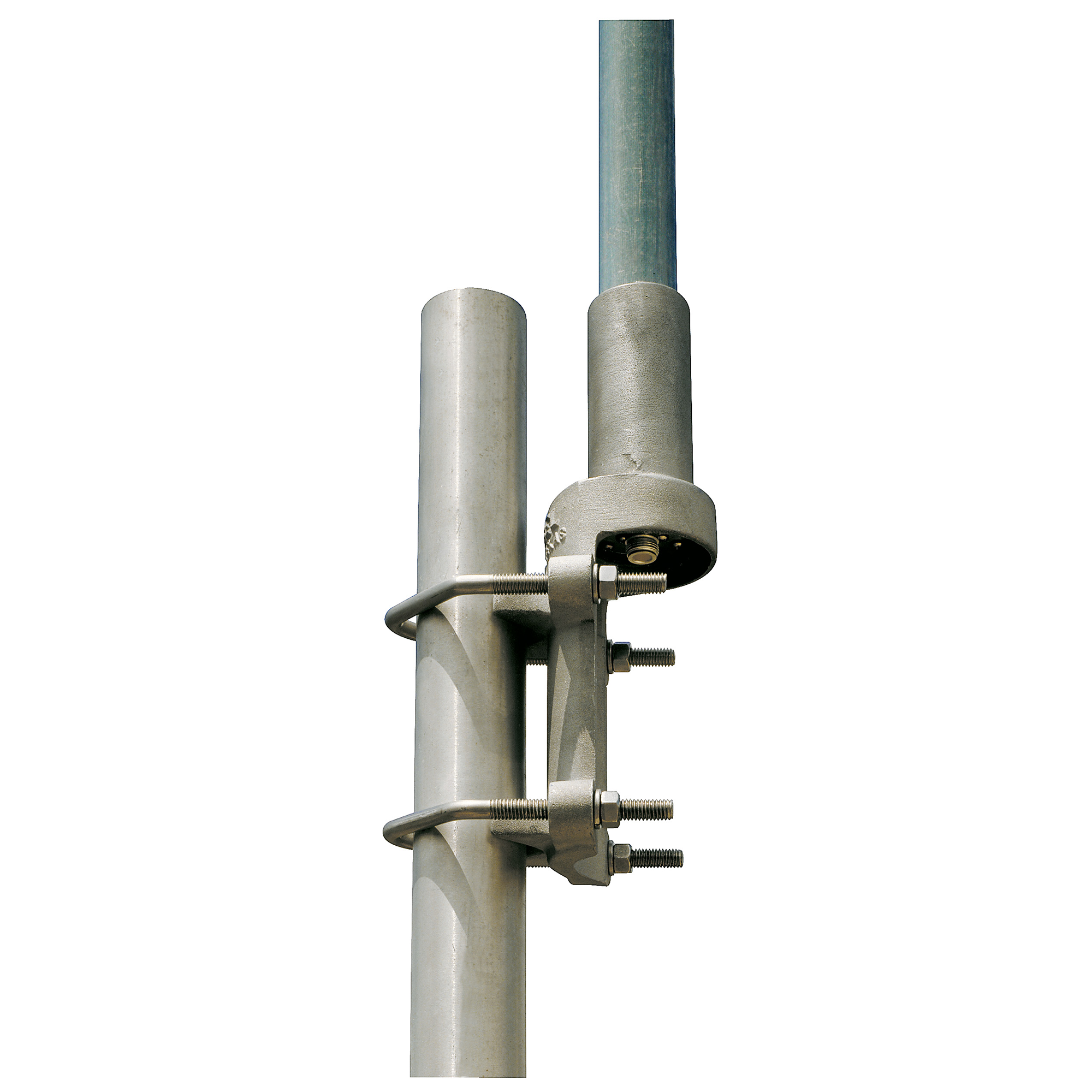

CommScope's DB586-Y fiberglass omni antenna operates in the 890 – 960 MHz frequency range. This lightweight, low-profile omni antenna is ideal for low to moderate gain applications. The DB586-Y provides 6 dBd gain, has a maximum power input of 300 W and is terminated with an N Female connector at the bottom of the antenna. V-bolts are included for mounting. This Omni antenna meets RoHS 2002/95/EC.
CommScope's DB586-Y base station antenna can be used for point-to-multipoint applications. This mirage collinear antenna is designed with horizon blue fiberglass radome for increased durability. Drain plugs are included on both ends of this base station antenna.
CommScope's DB586-Y base station antenna can be used for point-to-multipoint applications. This mirage collinear antenna is designed with horizon blue fiberglass radome for increased durability. Drain plugs are included on both ends of this base station antenna.
Specific Freq. (MHz)
890-960 MHz
Item Height: 1.5 in
Gain dBd: 6 dBd
Fixed Electrical Downtilt: 0 deg
Item Weight: 8.25 lb
Polarization: Vertical
Lightning Protection: DC Ground
Item Length: 59 in
Maximum Rated Wind Velocity: 125 MPH
RF Connectors: N Female
Specific Frequency: 806-960 MHz
Electrical Downtilt: Fixed
Maximum VSWR: 1.5:1
Connector Placement: Bottom
Maximum Power: 300 W
Item Width: 1.5 in
Gain dBi: 8.15 dBi
Type of Hardware Included: Dual Purpose Mount
Gain dBd: 6 dBd
Fixed Electrical Downtilt: 0 deg
Item Weight: 8.25 lb
Polarization: Vertical
Lightning Protection: DC Ground
Item Length: 59 in
Maximum Rated Wind Velocity: 125 MPH
RF Connectors: N Female
Specific Frequency: 806-960 MHz
Electrical Downtilt: Fixed
Maximum VSWR: 1.5:1
Connector Placement: Bottom
Maximum Power: 300 W
Item Width: 1.5 in
Gain dBi: 8.15 dBi
Type of Hardware Included: Dual Purpose Mount
