CommScope R2HH-6533A-R5
Regular price
$000
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
CommScope
Product Description

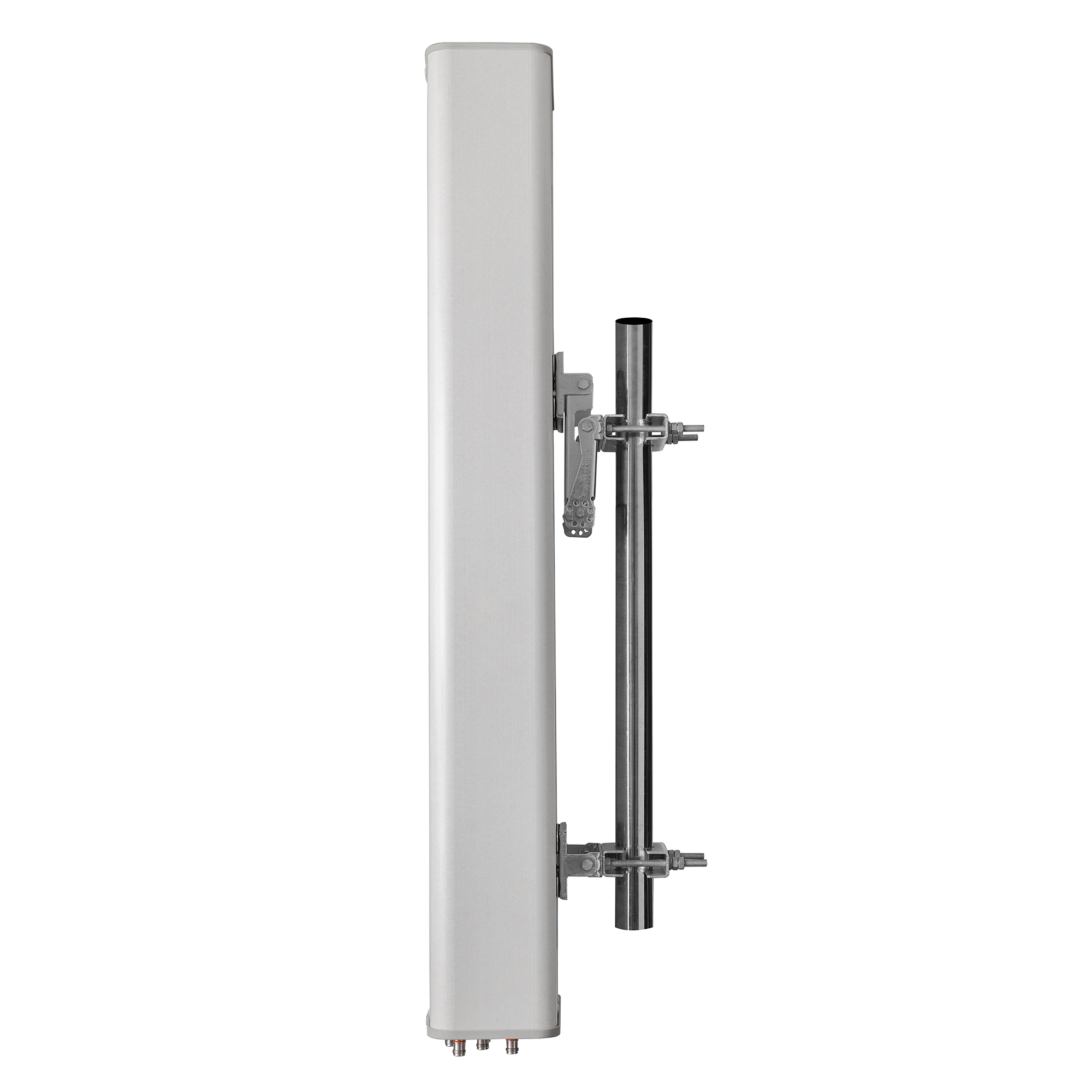

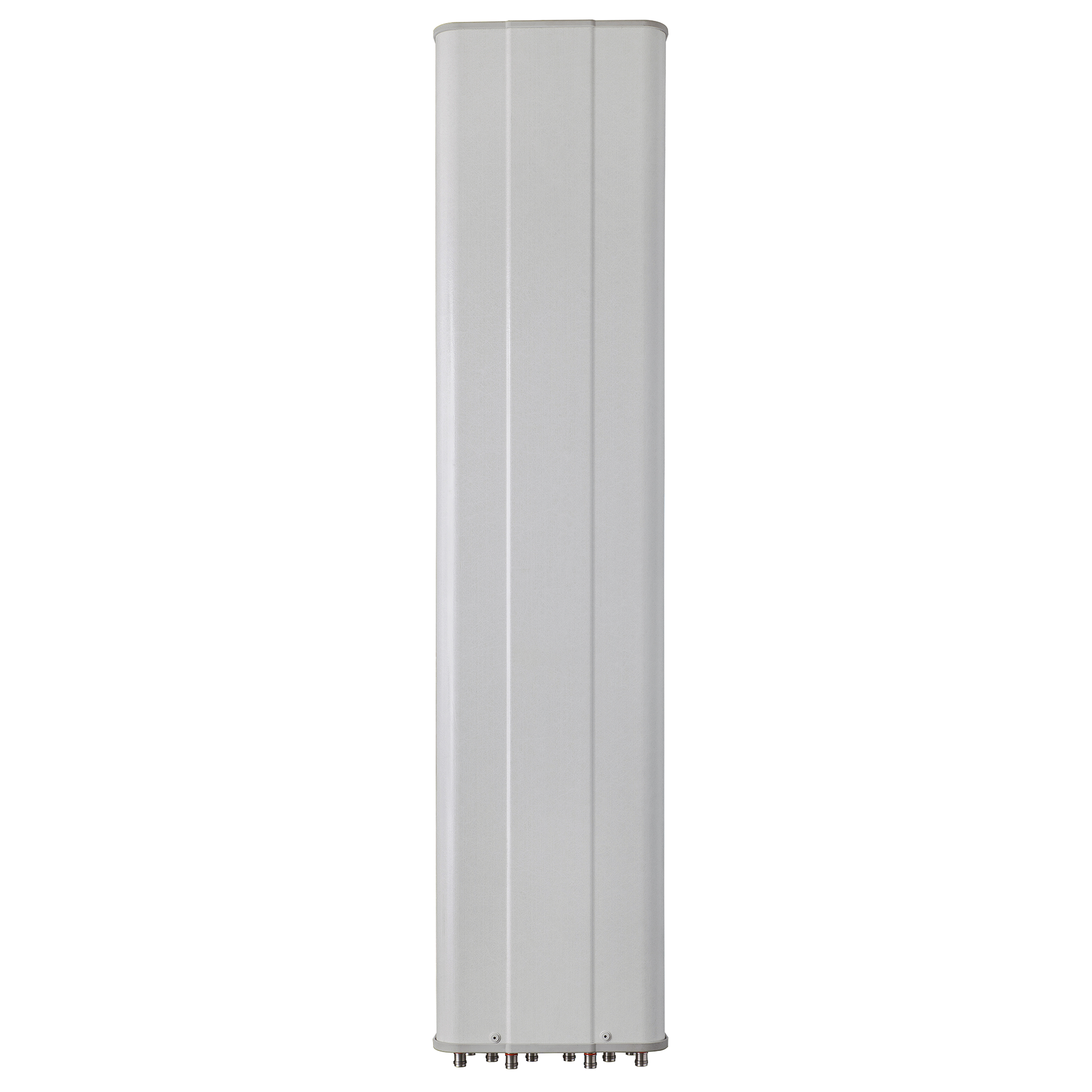

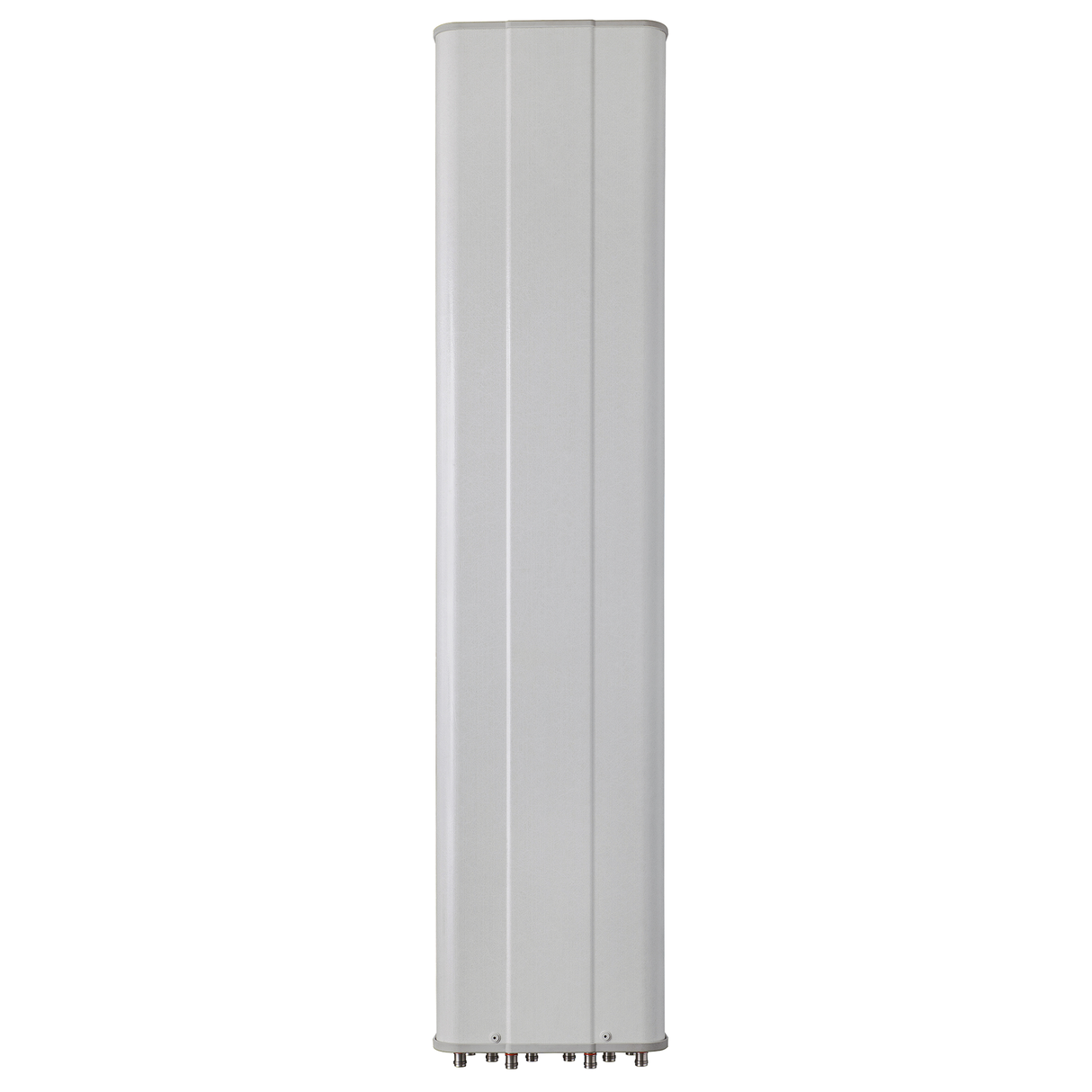

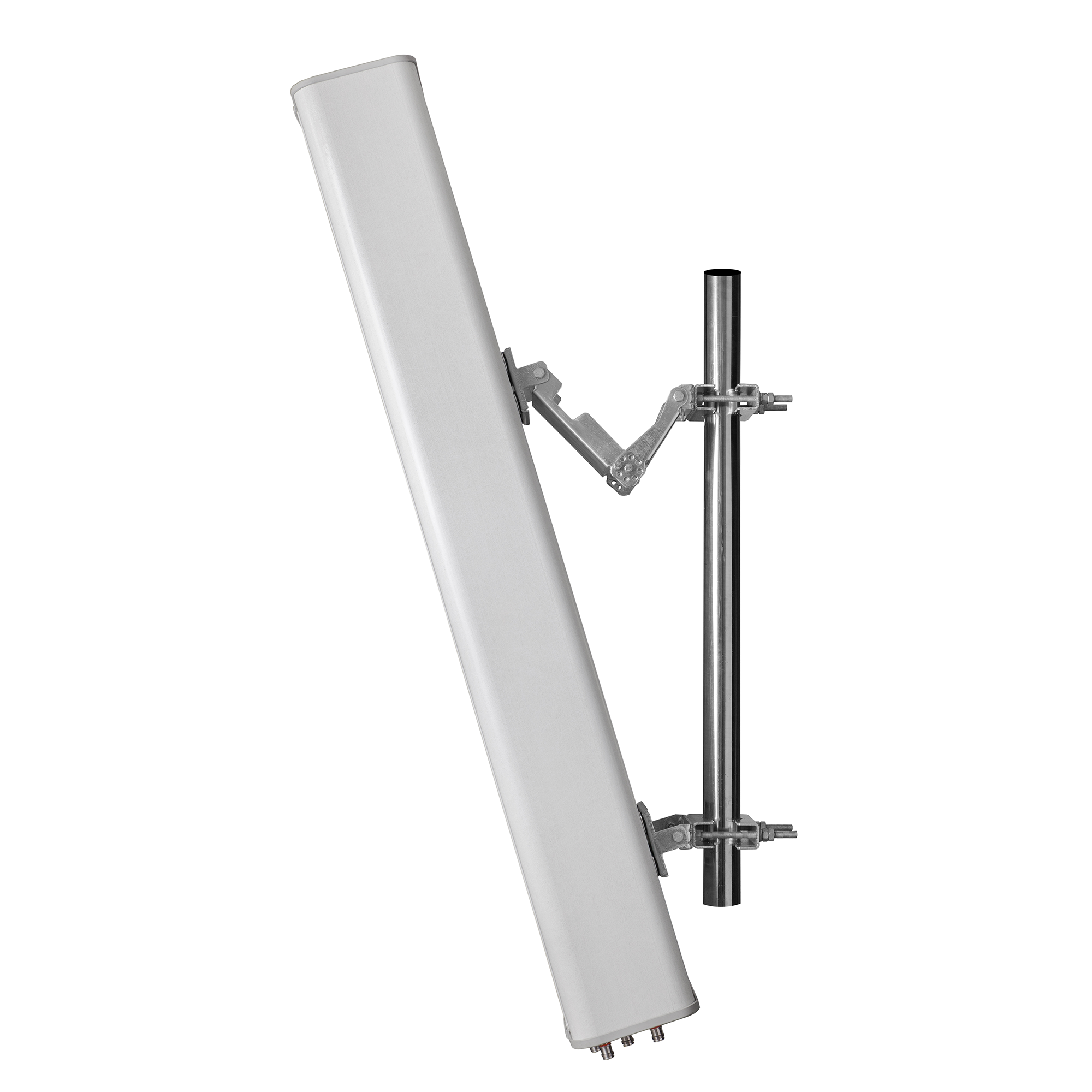

10-Port sector/multibeam antenna
Product Narrative
COMMSCOPE 10-port sector/multibeam antenna, 2x 694–960 MHz 65° HPBW and 8x 1710–2180 MHz 4x 33°HPBW, 5x RET with tilt indicators
Specific Freq. (MHz)
694-790MHz, 790-890MHz, 880-960MHz, 1710-1880MHz, 1850-1990MHz, 1920-2180MHz
Polarization: +/- 45 Degrees
Item Length: 62.205 in
Maximum Rated Wind Velocity: 149.75 MPH
Gain dBi: 14.4 dBi, 14.8 dBi, 14.9 dBi, 15.9 dBi, 16.5 dBi, 17.1 dBi
Connector Placement: Bottom
Item Height: 8.189 in
Item Width: 13.78 in

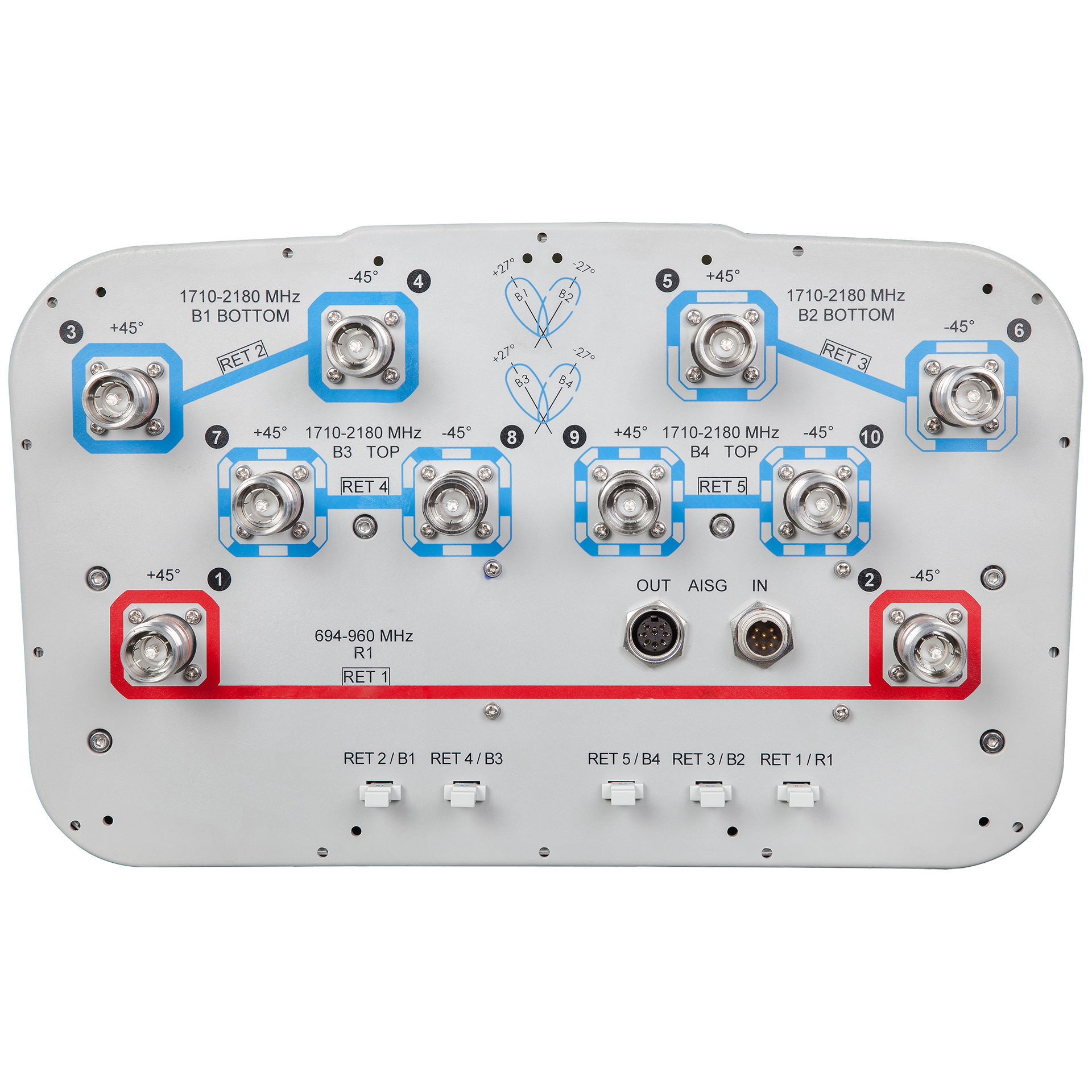

RF Connectors: 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female
Item Length: 62.205 in
Maximum Rated Wind Velocity: 149.75 MPH
Gain dBi: 14.4 dBi, 14.8 dBi, 14.9 dBi, 15.9 dBi, 16.5 dBi, 17.1 dBi
Connector Placement: Bottom
Item Height: 8.189 in
Item Width: 13.78 in
RF Connectors: 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female
