MPN: DJ-MD5FXT
BRAND: Alinco
PRODUCT TYPE: Handheld Radio
SKU: 19035

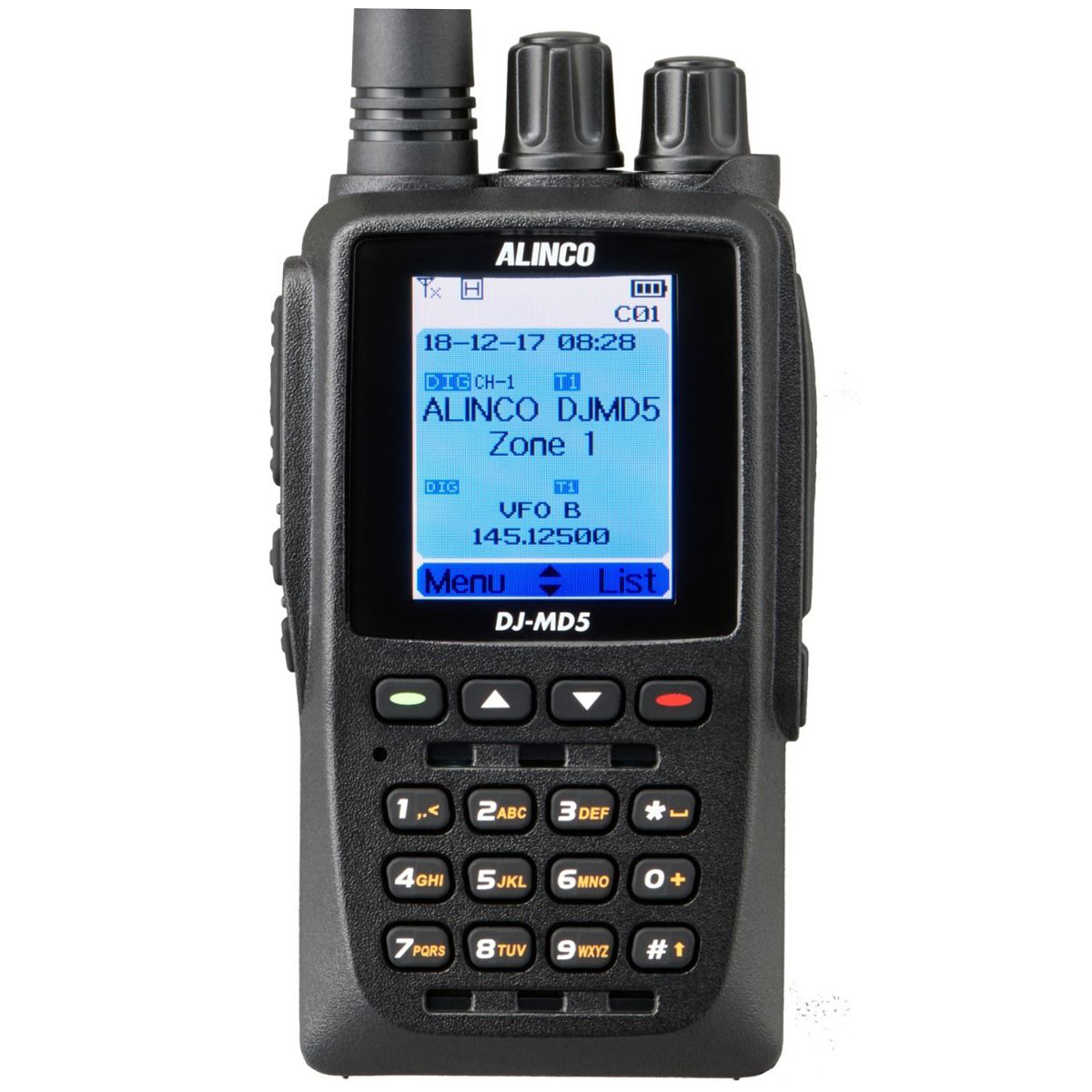

Alinco DJ-MD5FXT

VHF 136-174MHz / UHF 400-480MHz, Two-Slot TDMA (Tier 1/ Tier II), 4000 Channels, 250 Zones (250CH/ Zone)

Regular price $17900
Shipping calculated at checkout.

DOCUMENTS

Brochure

DJ MD5XLT

Description

Radio Includes:

  • EBP-88 Li-Ion Battery Pack 1700mAh 7.4V
  • EDC-315 Drop-In Rapid Charger stand
  • EDC-191 AC Adapter (120V)
  • EA-228 VHF Antenna
  • EBC-34 Belt clip
  • ERW-21 PC USB Data cable
  • Hand Strap

Alinco's 3rd Generation Advanced Dual Band DMR VHF/UHF DJ-MD5FXT HT Part 90 to its existing line-up of Digital Commercial/Business or Amateur Radio handhelds. The DJ-MD5FXT has a compact and durable IP54 Rated polycarbonate body, designed to resist dust and splash. The DJ-MD5FXT has features such as Color LCD Display, 5W Output Power, up to 4000 Memory Channels. Capable of operating in Digital and Analog with mixed mode in VFO or Memory mode. The DJ-MD5FXT utilizes DVSI's AMBE+2 vocoder for Crystal clear DMR digital audio for use in noisy environments like construction sites, parks, security applications or your favorite repeaters coverage area with no noise or fading even in low lying areas. The DJ-MD5FXT has powerful audio output power to insure loud crisp receive audio.

Alinco DJ-MD5XT Highlights

  • LCD Display: Vibrant 1.77in Color LCD Display, enhances user experience with detailed and clear Radio Activity in both Bands as the same time.
  • Higher Channel: Available 4000 Memory Channel capacity and 500,000 contacts allows users to maximize their entire list of Favorite Talkgroups.
  • 1.77 inch TFT color LCD
  • APRS Support (Digital/Analog)
  • Automatic Repeater Roaming
  • Area SQL Function
  • VFO/MR Switch
  • Output power selectable (5W/2.5W/1W/0.2W)
  • 4000 channel memory, 250Zone, 250 Scan lists
  • SMS (Digital mode)
  • Communication recording (Digital mode)
  • Individual/Group/All call (Digital mode)
  • CTCSS/DCS/DTMF/2Tone/5Tone encode and decode (Analog mode)
  • Selectable battery-save
  • 1700mAh Li-ion battery
  • FCC Part 90 / IC RSS119 Certified



Specifications

Frequency Coverage

VHF 136-174MHz / UHF 400-480MHz

Modulation

Two-Slot TDMA (Tier 1/ Tier II)

Channel Capacity

4000

Zone Capacity

250 Zones (250CH/ Zone)

Channel Spacing

Digital 12.5KHz Analog 12.5KHz/25KHz

Operating Voltage

DC 7.4V normal

Operating Temperature Range

-4°F~122°F (-20°C~ +55°C)

Frequency Stability

+/-2.5ppm

Antenna Impedance

50 ohms

Battery

1700mAH Li-ion (EBP-88)

Dimensions (w/Battery)

2.32 x 4.65 x 1.57 in. (W x H x D)

Weight (w/Battery)

Approx. 256 g /9.03 oz (w/Batt. & Antenna)

Certifications

Certifications FCC Part 90/ IC RSS119 Certified

Transmitter

Output power

5W/ 2.5W/ 1W/ 0.2W

FM Hum and Noise

25KHz: 45dB 12.5KHz: 40dB

Spurious Emission

-36dBm@<1GHz, -30dBm@>1GHz

Adjacent Channel Power

60dB@12.5KHz, 70dB@25KHz

Modulation (Digital)

7K60FXD/7K60FXE

Modulation (Analog)

16K0F3E/11K0F3E

Digital Vocoder

AMBE+2 (DVSI)

Receiver

Analog Sensitivity

25kHz: 0.2uV 12kHz: 0.25uV

Digital Sensitivity

5% : 0.3μV 1% : 0.7μV

Intermodulation

60dB

Spurious Response Rejection

70dB

Audio Output

1W/ 16ohms

Audio Distortion

Less than 5% (typical)
