Description

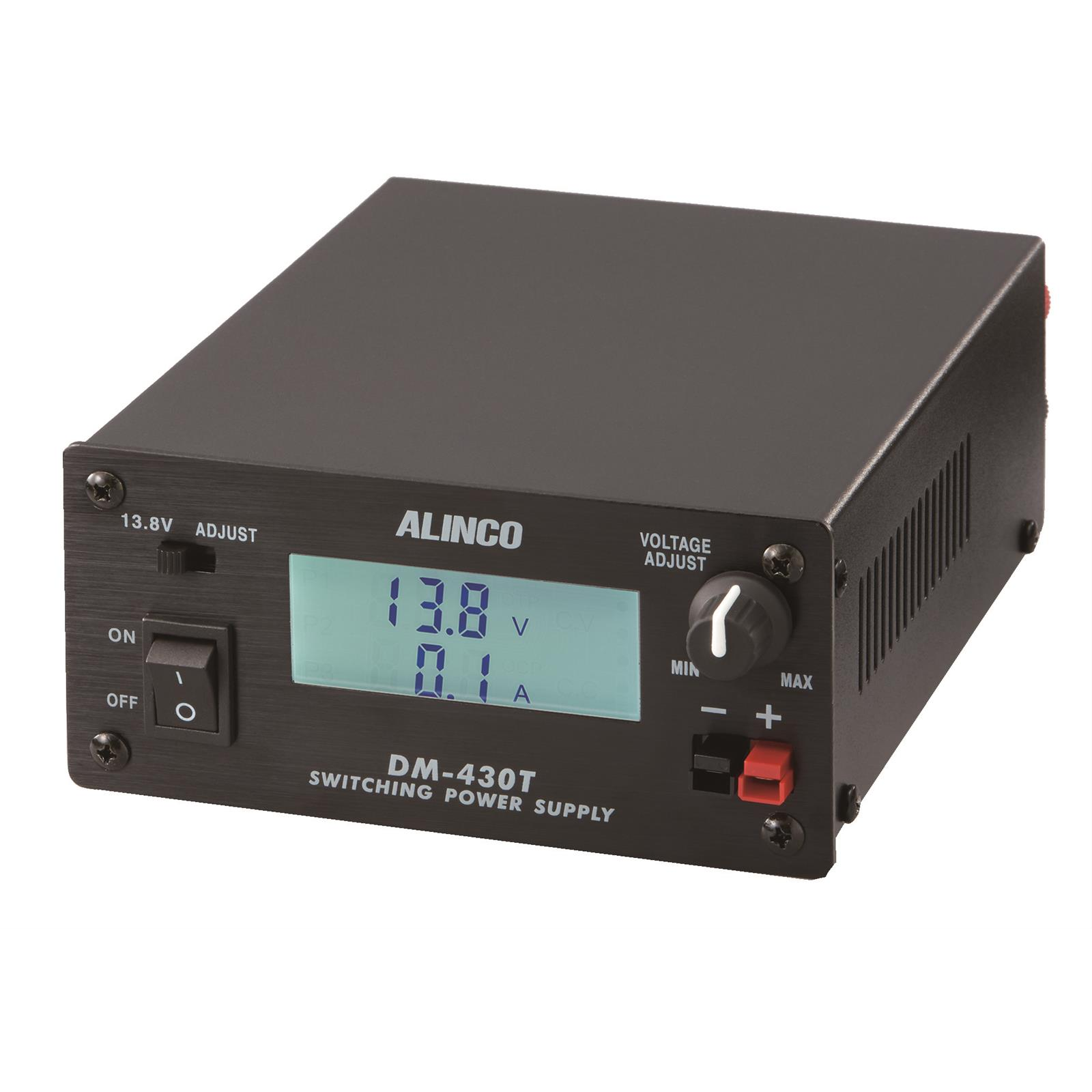

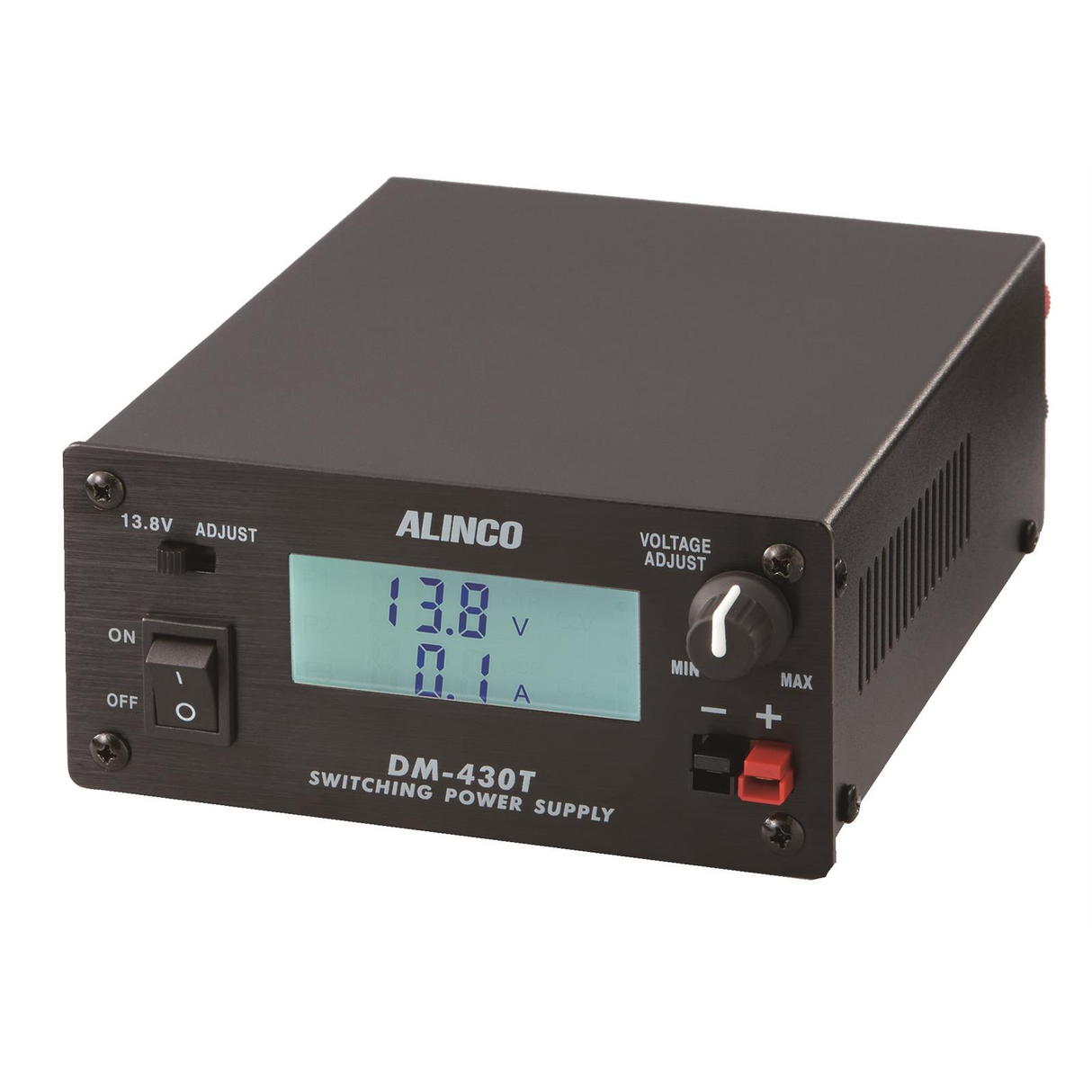

Alinco DM-430 digital power supplies are ultra-compact, advanced switching power supplies featuring Anderson Powerpole connectors.
These supplies have 5-15 VDC variable output and deliver up to 30 amp peak power. They are designed for the electronics hobbyist and 2-way radio communication use. They are ideal for Amateur Radio transceivers that require a 13.8 V DC external supply. Order their DM-430T for North American 120 V AC, or DM-430E for European 230 V mains, depending on your needs.

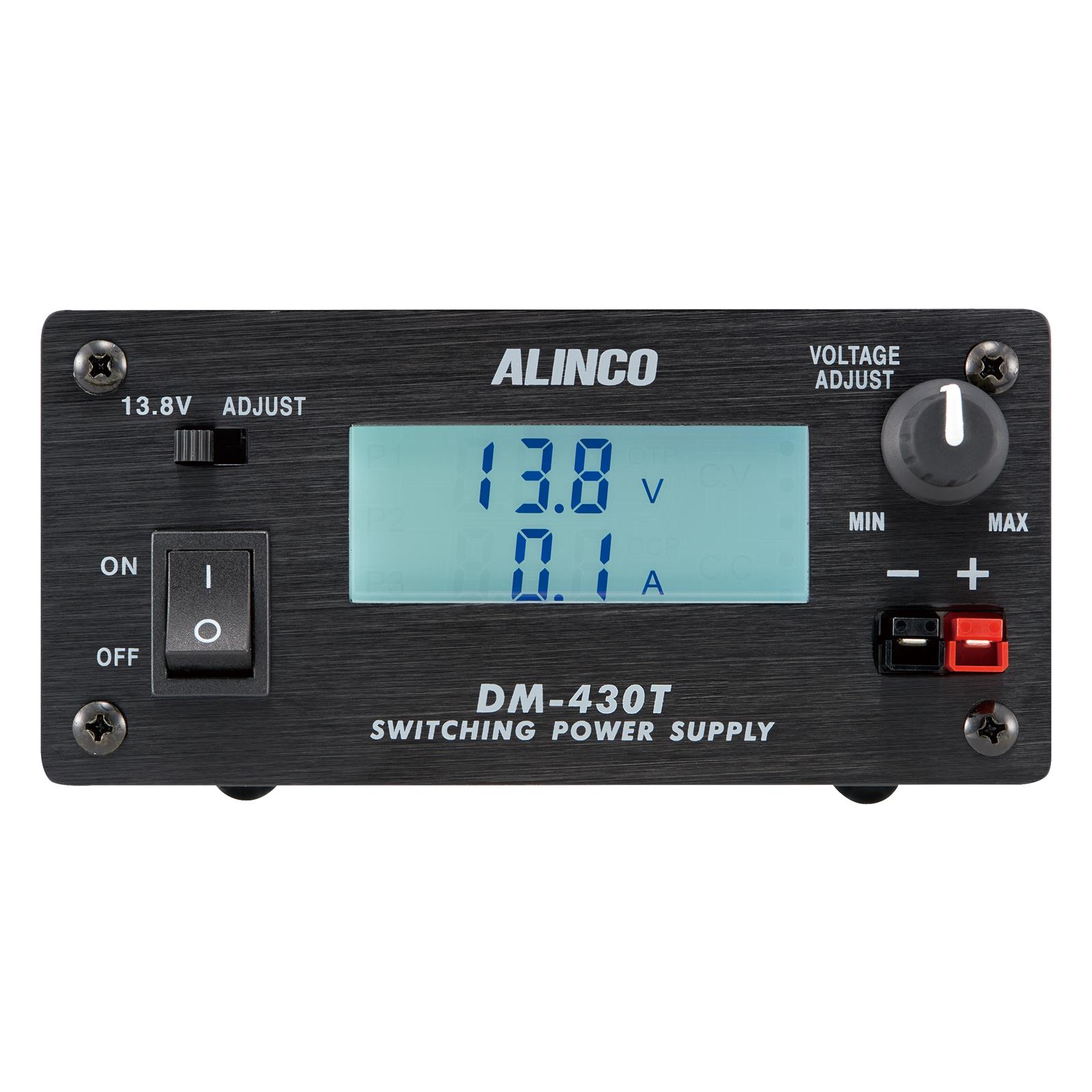

Features include a large, illuminated, digital volt/amp meter, rear panel binding posts (30 amp peak), added front panel Anderson PowerPole terminals (30 amp/peak) providing versatility and quick connection. Voltage adjustment is 5-15 V, or switch to fixed-voltage at 13.8 V. Power supply ripple is less than 80mVp-p and protection is provided for short-circuit, over temperature, and current limiting!
Features:
* Output voltage continuously adjustable from 5 to 15 V DC, or fix it at 13.8 V
* Highly visible digital volt/amp meter for real-time monitoring of the output current
* Anderson Powerpole connectors on the front panel
* Forced air cooling for reliability keeps DM-430 running continuously under heavy loads

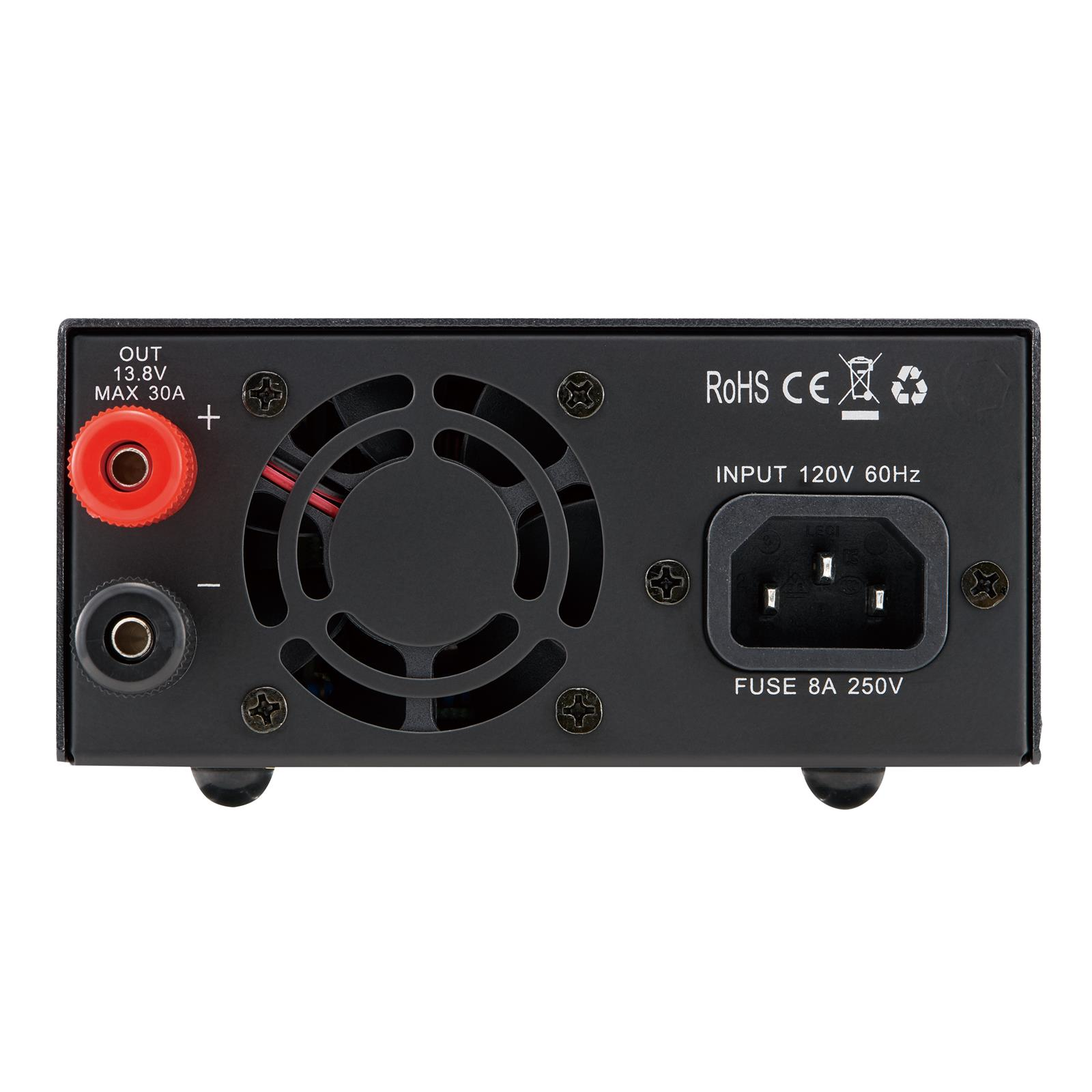

* Rear binding posts large enough to provide 30 amp peak output
Specifications:
Input voltage: DM-430T, 120V AC 50/60Hz; DM-430E, 230V AC 50/60Hz
Output voltage: 5 to 15 VDC variable
Output current: 30 amp max
Output voltage regulation: Less than 2 percent variation at full load
Ripple voltage: Less than 80mVp-p at full load
Protection: Short-circuit, current limiting over 30 amp, over-temperature
Fuse: 8 amp
Dimensions: (WxHxD) 4.921 x 2.362 x 6.299 in.; 125 x 60 x 160mm
Weight: Approx. 3.53 lbs. (1.6kg) with AC cord
