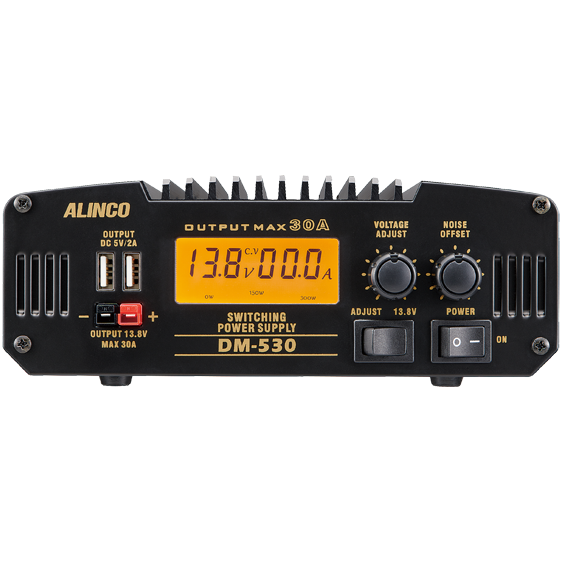

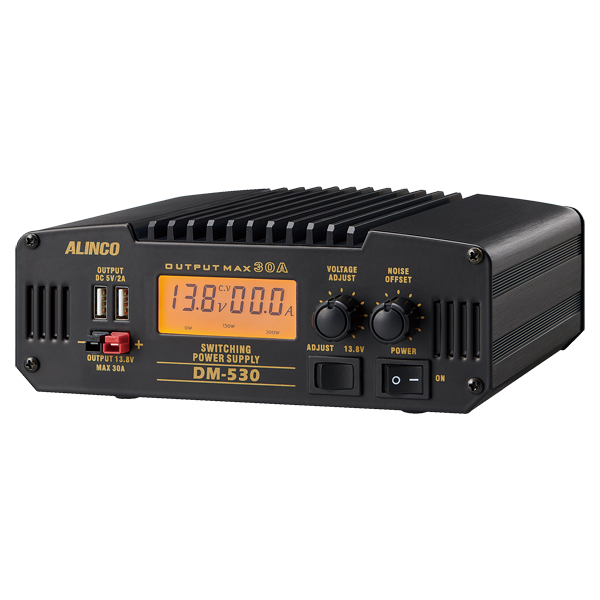

Alinco DM-530T

Communications-grade switching power supply with Powerpoles®, highly visible Digital display and useful USB terminals!

Alinco's latest Digital Power Supply DM-530 features include a large illuminated digital Volt/Amp meter, rear panel binding posts/front panel Anderson Powerpoles® (30A peak), voltage adjust (5-15V) or fixed at 13.8V, ripple less than 50mVp-p and protection for short-circuit, over temperature, and current limiting!

Features

• Voltage Control & Noise Offset - The output voltage is continuously adjustable from 5 to 15 Volt DC, or fixed at rated 13.8V. Noise Offset helps rejecting switching-noise on your receiving frequency.
• Volt & Amp Meter - aA highly visible, accurate digital Volt / Amp meter allows real-time monitoring of the output current.
• Auxiliary 30A Output Terminals and USB Ports - Added front panel Anderson Power Pole ® terminals and USB ports provide versatil, quick connections.
• Large Binding Posts - The main output terminals are large enough to provide an efficient power transfer to your equipment
• Forced Air Cooling - Designed with reliability in mind, a durable cooling fan keeps DM-530 running continuously under heavy loads.

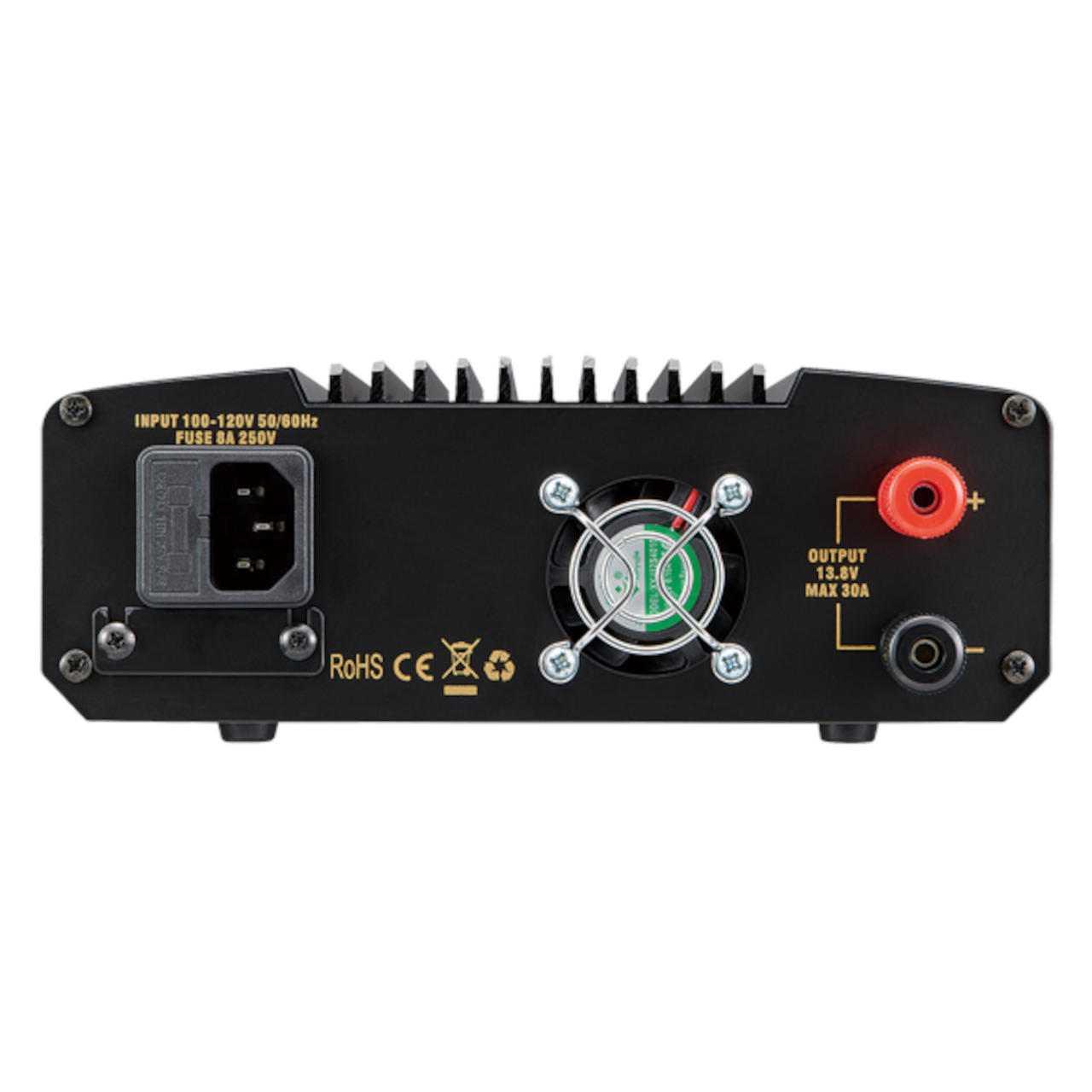

• Rear output terminals are large and provide an efficient Max 30A power transfer to your equipment
• Input voltage: 120 V AC 50/60Hz (DM-30TR)
• Output current - 5 to 15VDC variable - 30A at 13.8 V DC
• 30A max (50 percent duty cycle, 1-minute intervals)
• Output voltage regulation: Less than 2 percent variance to full load
• Short-circuit, Automatic current limiting over 30A Over-temperature
• 190(W) x 69(H) x 181(D) mm - 7.48(W)x2.71(H)x7.12(D) inches
• Weight: Approximately 5.07 lbs. (1.6kg) with AC cord
