Alinco DR-735T

Radio Includes:

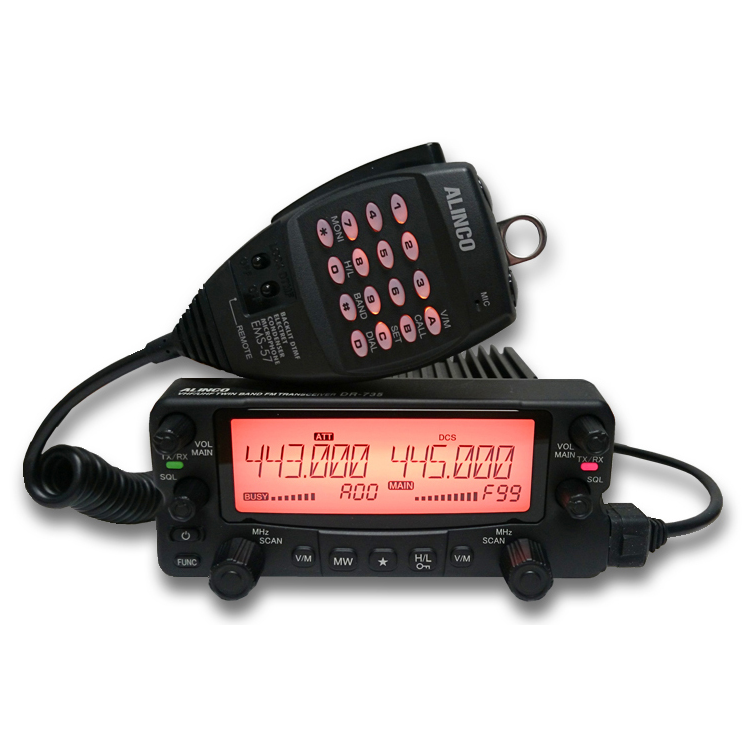

• EMS-79 DTMF Keypad Mic
• ADFM78 Mobile Bracket w/screw kit
• DC Power Cable
• Mic Hanger

Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

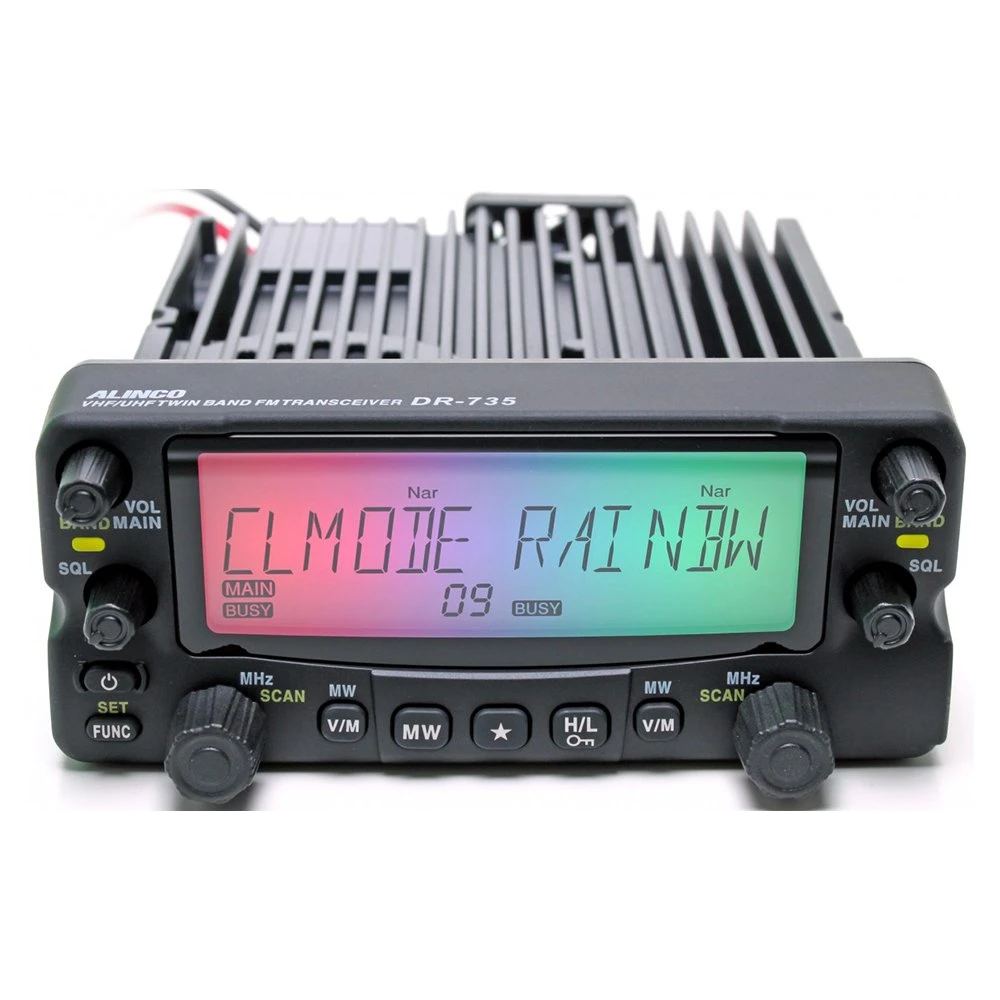

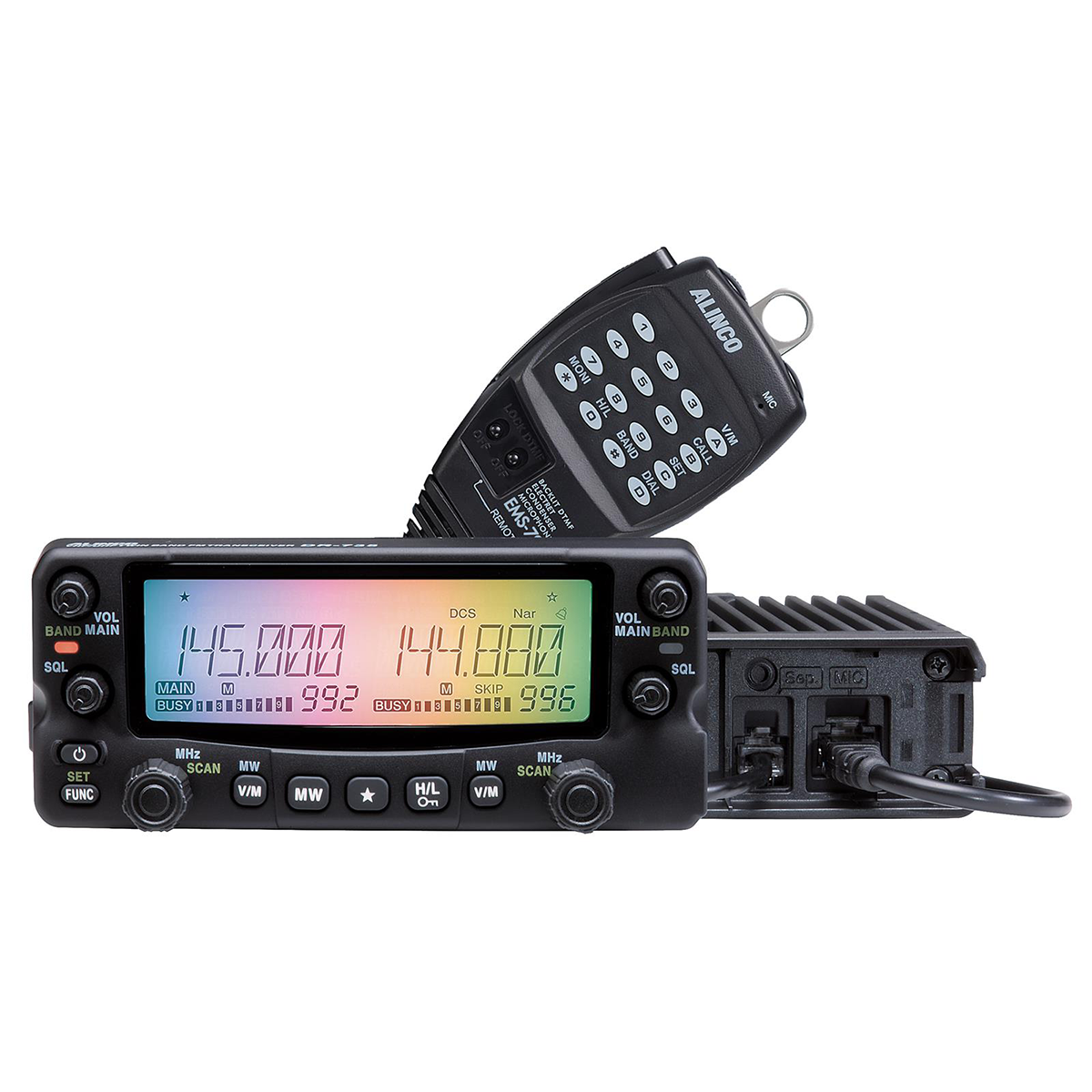

Alinco DR-735T VHF/UHF Transceivers feature eight full color LED backlights that enable you to customize your display colors! DR-735s let you assign different colors for different functions. These "beautifully simple" radios have fully independent VHF/UHF keys and dials to deliver true dual-band operation. The removable front panel can be remotely mounted or inverted for optimal speaker placement.

DR-735T Features

• Full-duplex receiver enables simultaneous TX/RX within 144/440MHz bands as well as V/V and U/U receiver capability.
• Fully independent frequency, audio level and squelch knobs for right and left VFOs make it seem more like operating two monoband radios rather than a dual band transceiver.
• Simply press the volume knob to select the VFO you wish to use for transmitting.
• Cross-band repeater function available on all DR-735T radios. (Be sure to observe all regulations applicable to cross-band operation.)
• Computer programmable with free software from Alinco.
• "Set Mode" menus are divided into basic and advanced, allowing you to assign less frequently used modes such as auto power off or busy channel lockout to set and forget.
• Large heatsink and quiet fan for stability while operating
• Wide and narrow ceramic filters enable true narrow band operation
• Two speaker ports located on the back of the unit allow you to separate signals by both right and left sides or by internal or external speakers using audio from a single external source.
• Easy repeater access: These radios feature manual shift and offset direction setting plus preset and programmable auto-repeater settings. Includes 4 tone-burst tones
• Versatile memory functions: Include 1,000 memory channels in 10 banks, 100 right-only/100 left-only memories, 100 dual memories, 5 pairs of programmed-scan channels, and 2 call channels.
• Easy-to-Read Display: Large LCD screen offers adjustable display brightness, color and contrast along with 6-character alphanumeric tags, a brightness timer that boosts light levels temporarily when keys are engaged and a "scan light" feature that increases brightness for two seconds when scanning stops.
• Convenient Receiver Functions: Include popular functions such as pager (icon and beep tones), extended receive, aviation and utility monitoring on VHF and UHF frequencies, a variety of selectable channel steps, CTCSS/DCS capabilities for selective monitoring, a 10dB RX attenuator, sub-band mute, reception image rejection and auto-power-off.
• Advanced Transmitting Features: Valued by many seasoned operators, these features are part of the set mode menu that includes time-out-timer and busy channel lockout as well as an adjustable mid-power output level, microphone gain adjustment and cross-band repeat.
• Selectable Scan Modes: Choose from a variety of scan modes that include VFO, memory, programmed or priority scans with busy and timed modes, CTCSS/DCS tone detection and memory scans with "skip" and "favorite" settings. (Utility software required for priority scan setting.)
• Popular Features: Other popular features include single-band mode, a restore function that recalls set-mode settings even after a complete reset, five different reset modes (system, complete, VFO, memory and color resets), cable-cloning and utility software.
