Radio Includes:
- EMS-74 DTMF Microphone
- Mounting Bracket w/Screws
- DC Power Cable
- Microphone holder
- Instruction Manual
Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

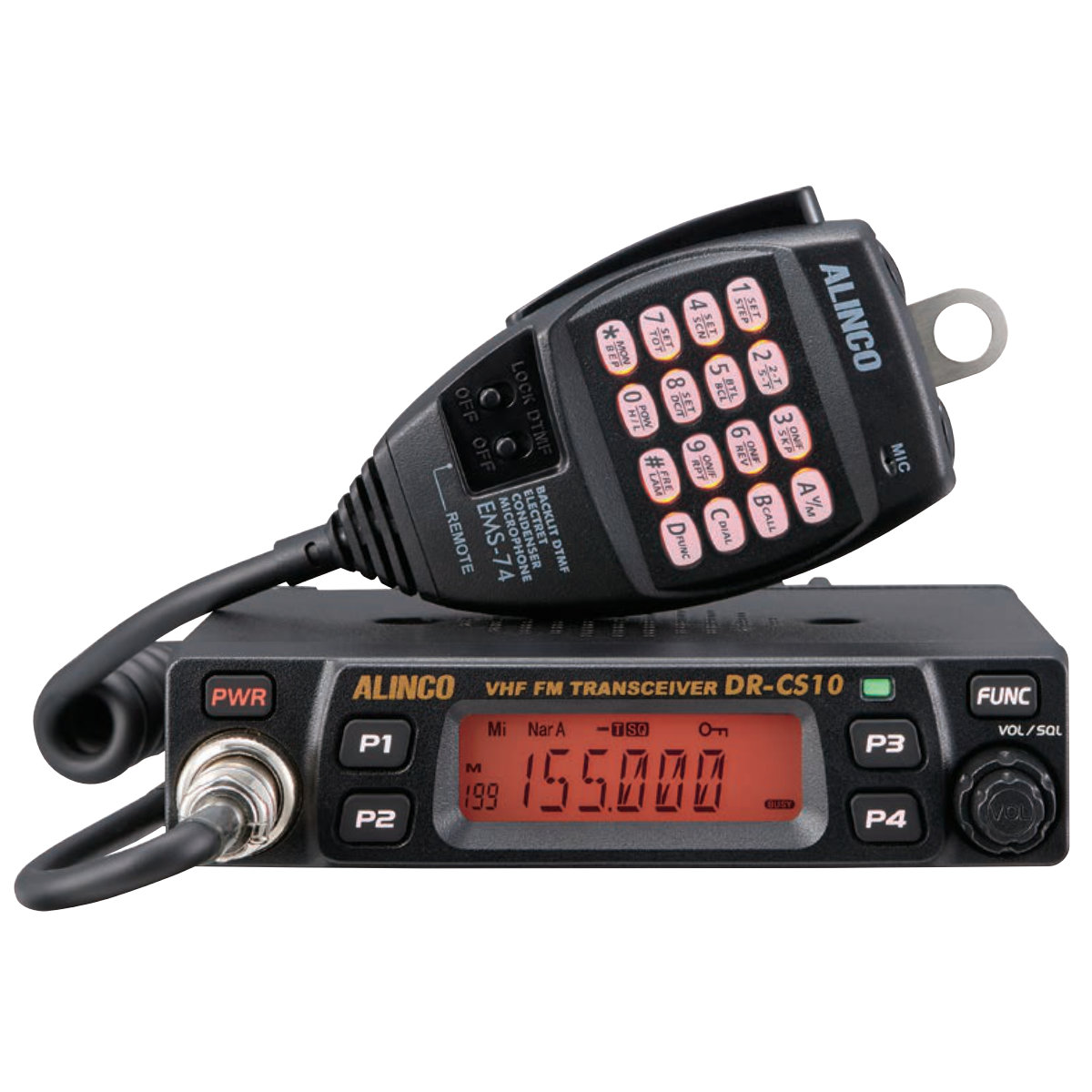

The Alinco's latest VHF Two Meter DR-CS10 in its ultra compact package is loaded with high technology features.The easy and smooth operation of DR-CS10 is inherited from popular Alinco radio equipment series such as a large back-lit display & microphone, excellent transmit/receive audio, 200ch memories, various scanning and more and more at No extra costs! Affordable, easy-to-use DR-CS10 will offer everything you may expect from a 2M mobile transceiver.
DR-CS10 Features
- 60 watts, H/M/L power settings
- 200 memory channels
- High Frequency Stability +/- 2.5ppm TCXO
- CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
- Clean, clear Alinco audio
- Super-wide 7 character alphanumeric display
- A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more
Antenna Impedance
50 ohms
Channel steps
5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel
200 channels + 1 quick recall (CALL)
Frequency stability
+/- 2.5ppm TCXO
Power supply requirement
13.8V DC +/- 15%
Dimension without projection
5.709(W) x1.378(H)x 7.087(D) in approx / 145 (W) x 35 (H) x 180 (D) mm
Usable temperature range
14°C ~ 140°F (-10°C ~ +60°C)
CTCSS tone
encoder/decoder 39 tones
Digital Coded Squelch
encoder/decoder 104 codes
Transmitter
Output power
Approx. 50W(HI), Approx. 20W(MID). Approx. 5W(LOW)
Modulation system
FM
Spurious emission
Less than -60 dB
Maximum frequency deviation
+/- 5 KHz (FM) / +/- 2.5 KHz (NFM)
Receiver
System
Double-conversion superheterodyne
Sensitivity (-12dB SINAD)
Less than -16.0dBu
Intermediate frequency
1st IF 21.7 MHz, 2nd IF 450 KHz
Selectivity
-6dB: +/-12KHz or more (FM), -60dB: +/-28KHz or less, -6dB: +/-6KHz or more (NFM), -60dB: +/-16KHz or less
Audio output power
More than 2W(8ohm 10%THD)
