Description
Description
Manufacturer

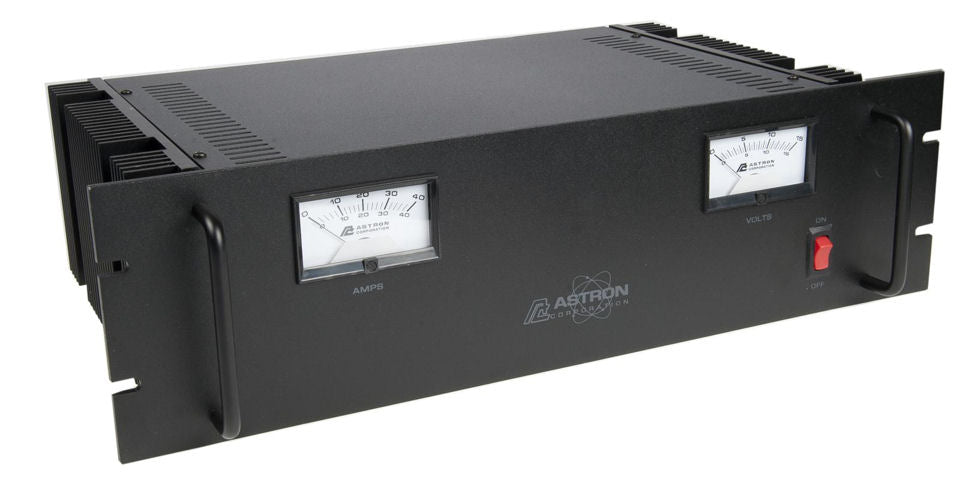

Astron
Model #
RM-35M
Product Description
35 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
25
Amperage (Intermittent)
35
Description
Features include:
* Solid state electronically regulated
* Fold-back current limiting protects power supply from excessive current and continuous shorted output
* Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
* Maintain regulation and low ripple at low line input voltage
* Heavy duty heat sink
* Three conductor power cord
* All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions
19 x 5.25 x 12.5 in
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
