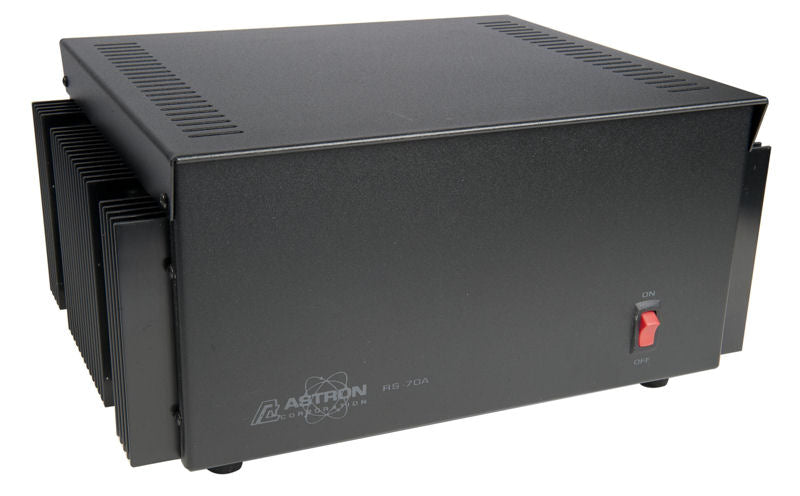

Astron RS-70A
MPN RS-70ASKU 1670Product type Switching Power Supply
Regular price
$49495
Unit price
Key Specifications
- Continuous Amps
- 57A
- Output Voltage
- 13.8V
- Supply Type
- Linear Regulated
Product details
Manufacturer
Astron
Model #
RS-70A
Product Description
70 Amp Power Supply
Input Voltage (VAC)
115 Volts AC
Output Voltage (VDC)
13.8 Volts DC
Amperage (Cont.)
57
Amperage (Intermittent)
70
Description
Solid State electronically regulated. Feature fold-back current limiting to protect the power supply from excessive current or shorted output.
Chassis mounted fuse. Less than 5 mv ripple peak to peak (full load and low line).
Includes battery back up and trickle charger.
Features include:
- Solid state electronically regulated
- Fold-back current limiting protects power supply from excessive current and continuous shorted output
- Crowbar over voltage protection on all models except RS-3L, RS-4L and RS-5L
- Maintain regulation and low ripple at low line input voltage
- Heavy duty heat sink
- Three conductor power cord
- All metered units feature backlit meters
Ripple Voltage
5 mV
Fold-Back Protection
Yes
Crowbar Protection
Yes
Dimensions
13.75 x 6 x 12.125 in
Product Narrative
Astron linear power supplies are heavy duty and solid state electronically regulated.
Warranty
1 yr
