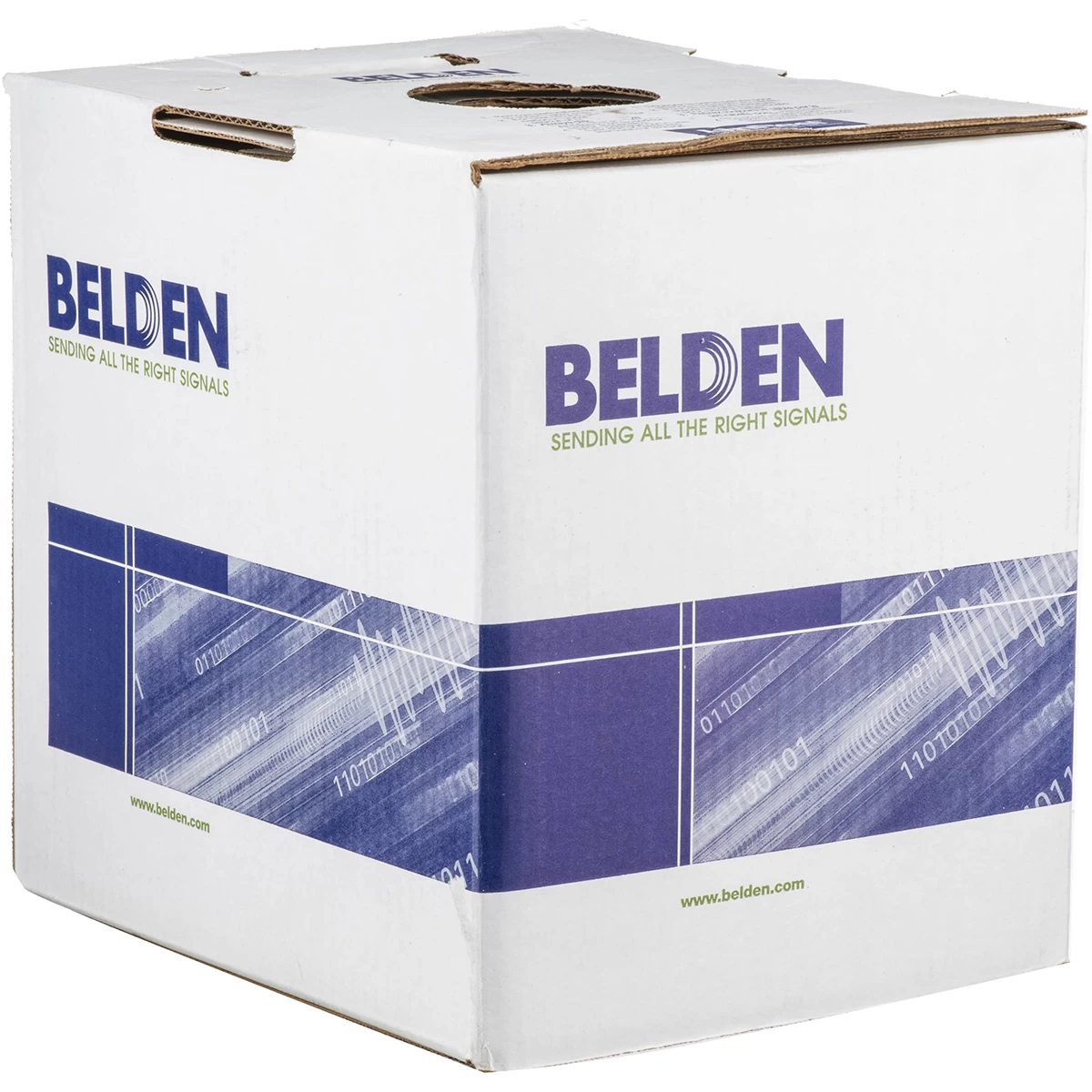

Belden 8240 (500ft Box)

MPN 8240 BOXSKU 1727-boxProduct type Cable

Belden RG-58/U Low Loss Coaxial Cable 500' Box

Regular price $1,06995
Documents

Key Specifications

Cable Type
RG58/LMR195
Jacket
PVC
Diameter
0.194
Need a Jumper Assembly? Start Here

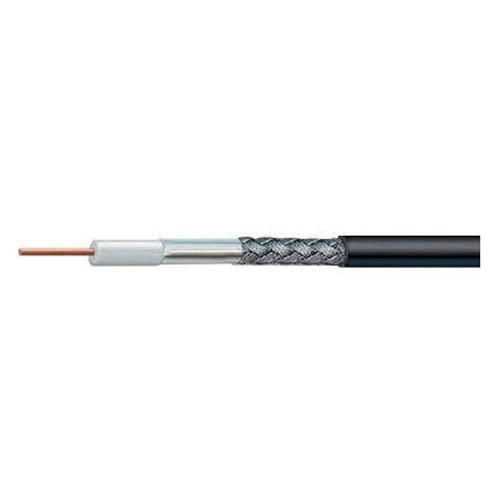

Product details

Manufacturer

Belden

Model #

RG58/U Mil Spec Cable (8240)

Product Description

50 Ohm Coaxial Cable

Cable Type

3/16" Braided

Shield %

95% Braid

Impedance

50 Ohms

VOP.

66%

Center Conductor

0.032" Solid

Insulation

Polyethylene

Other Spec

Mil Spec JAN-C-17A

Nom. core O.D. (in.)

0.116"

Nom. O.D. (in.)

0.195"

Losses Shown are based on 100 Foot Length

loss 50 MHz

3.1 db

loss 100 MHz

4.5 db

loss 400 MHz

10.0 db

loss 900 MHz

16.0 db

loss 1000 MHz

17.0 db

Nom. Capacitance (pF/ft)

28.5

Sold By

Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.

Warranty

1 Year
