MPN: Motorola CLS1410
BRAND: Motorola
PRODUCT TYPE: Handheld Radio
SKU: 19101

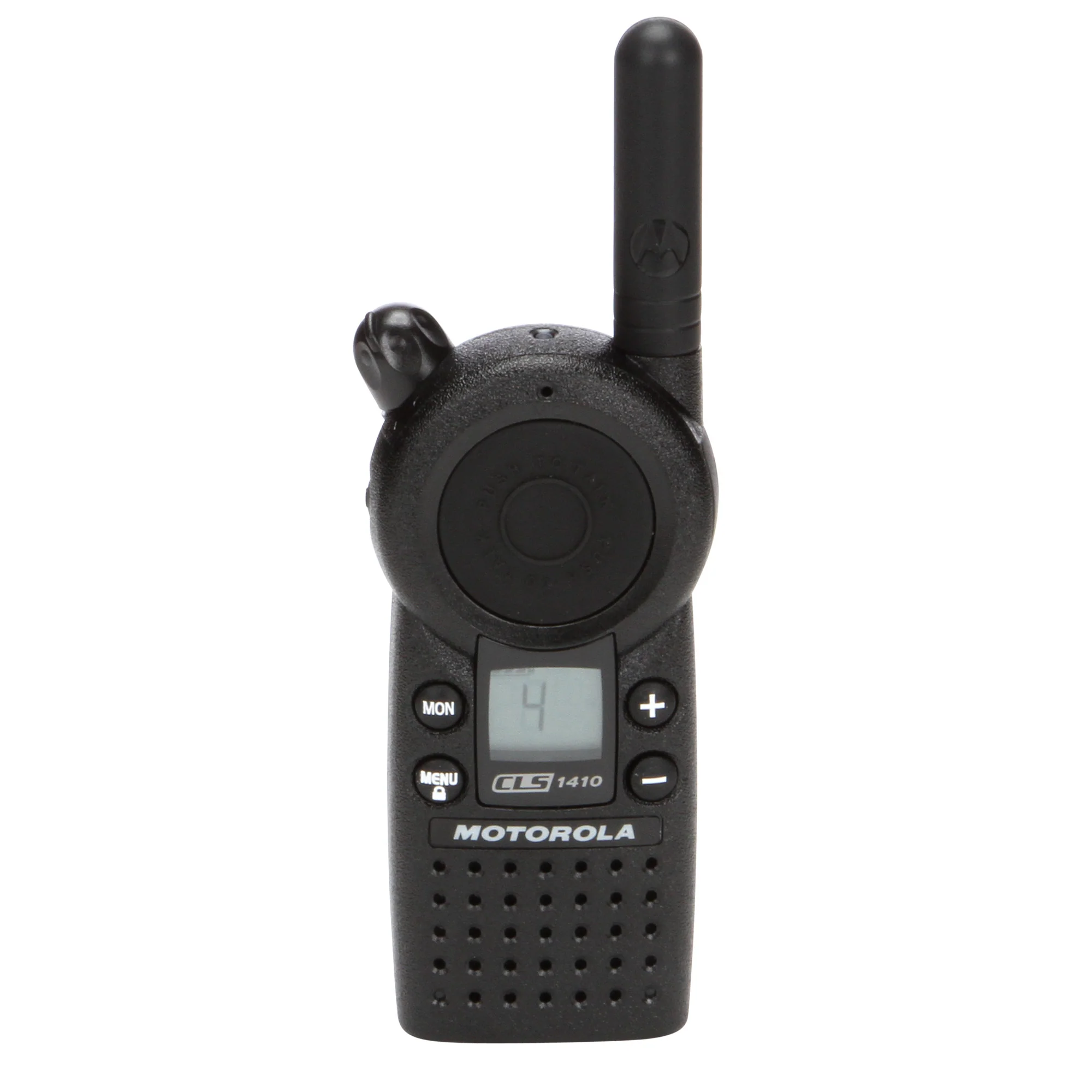

Motorola CLS1410

UHF Portable Radio, Analog, 4 Channels

Regular price $19995
Shipping calculated at checkout.

DOCUMENTS

Description

Delivering remarkable quality and flexibility at the push of a button, the CLS1410 on-site two-way radio is designed for the fast pace of business. It operates on four channels with a choice of 56 business-exclusive frequencies for enhanced voice quality, privacy and reliability. The vibrate alert allows users to receive alerts in discreet or noisy situations.

This radio is part of CLS series, an easy-to-use, affordable wireless solution from Motorola.

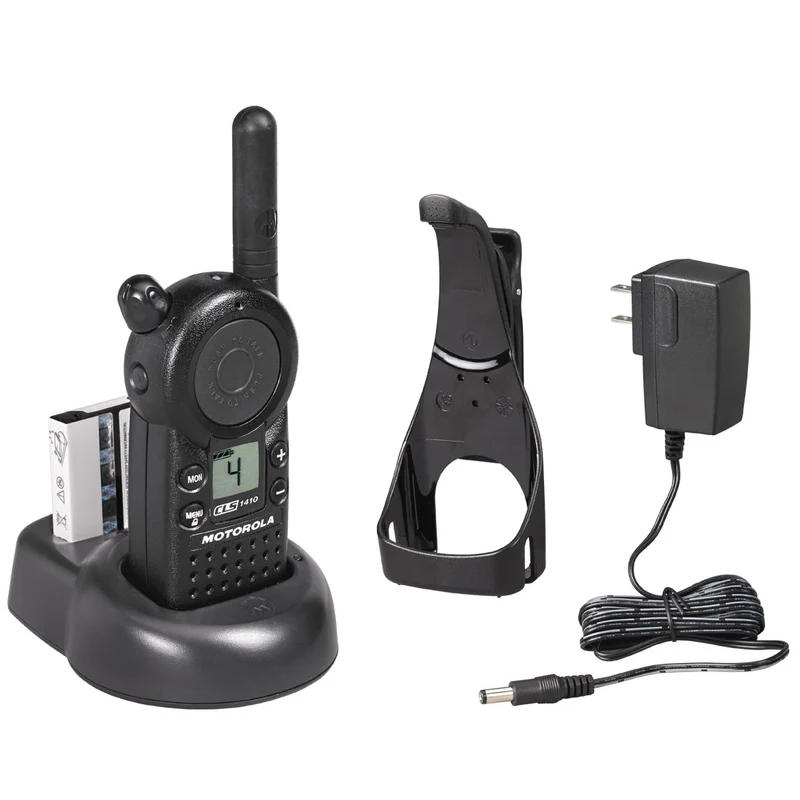

What's in the box

  • CLS Radio
  • Standard Li-ion Battery
  • Drop-in charger w/adapter
  • Swivel belt clip holster
  • Operating Manual

Vibrate Alert
Lets users discreetly receive transmissions.

Flexible choice of frequency and channel options
Uses four channels and operates on 56 business-exclusive frequencies.

Private line codes (PLCs)
121 interference eliminator codes maximize choices through 83 digital and 38 analog private lines.

Voice-operated transmit
Enables hands-free operation with use of a headset accessory.

Simplified cloning
Quickly copies settings from radio to radio when used with accessory.

Battery versatility
Choice of rechargeable lithium ion or backup AAA, with accessory.

LCD window
Shows information, such as battery gauge.

Long battery life
Rechargeable lithium ion battery provides up to 18 hours of battery life.

Drop-in charging
Keeps Motorola CLS Series radios centrally located and charged.

Keypad lock
Helps prevent accidental changes to settings.

General Specifications

Frequency Range
UHF 459.5 - 469.5
Channel Capacity
4
Channel Bandwidth
12.5 kHz
PL Codes
38
DPL Codes
83
Range Coverage
200,000 sq ft² / 18.580 sq m
Average Battery Life @ 5/5/90 1800 mAh Battery (PMNN4497)
18 hours
Radio Dimensions (H x W x D):
4.1”x2.0”x1.1” inches
Weight
Less than 5 oz.
TRANSMITTER

RF Output Conducted into 50 Ohms
1.0 Watts
Frequency Stability
< 2.0 ppm
Spurs & Harmonics
< -45 dBc
FM Hum & Noise @ 12.5kHz without Companding
-40 dB
@ 25.0kHz
N/A
Modulation Limiting @ 12.5kHz
± 2.5kHz
@ 25.0kHz
N/A
Adjacent Channel Power
60dBc
Radiated Spurious Emissions @ 12.5kHz
< -20dbm
@ 25.0kHz
N/A
Audio Frequency Response (0.3 - 3.0 kHz)
+1 to -3 dB
Audio Distortion
< 2%
RECEIVER

Sensitivity (12 dB SINAD)
-122 dBm (0.18 uV)
Adjacent Channel Selectivity @ 12.5kHz
65 dB
@ 25.0kHz
N/A
Intermodulation rejection
60dB
Spurious response Rejection (blocking 1Mhz)
85 db
Audio Distortion
< 5%
CSQ Hum & Noise @ 12.5kHz
-50dB
PL Hum & Noise @ 12.5kHz
N/A
DPL Hum & Noise @ 12.5kHz
- 45dB
Radiated Spurious Emissions (< 1GHz)
< -54 dBm
Radiated Spurious Emissions (> 1GHz)
< -52 dBm
Audio Output @ <5% Distortion
0.5W @ 8 ohms
Warranty
2-Year Limited Radio Warranty
