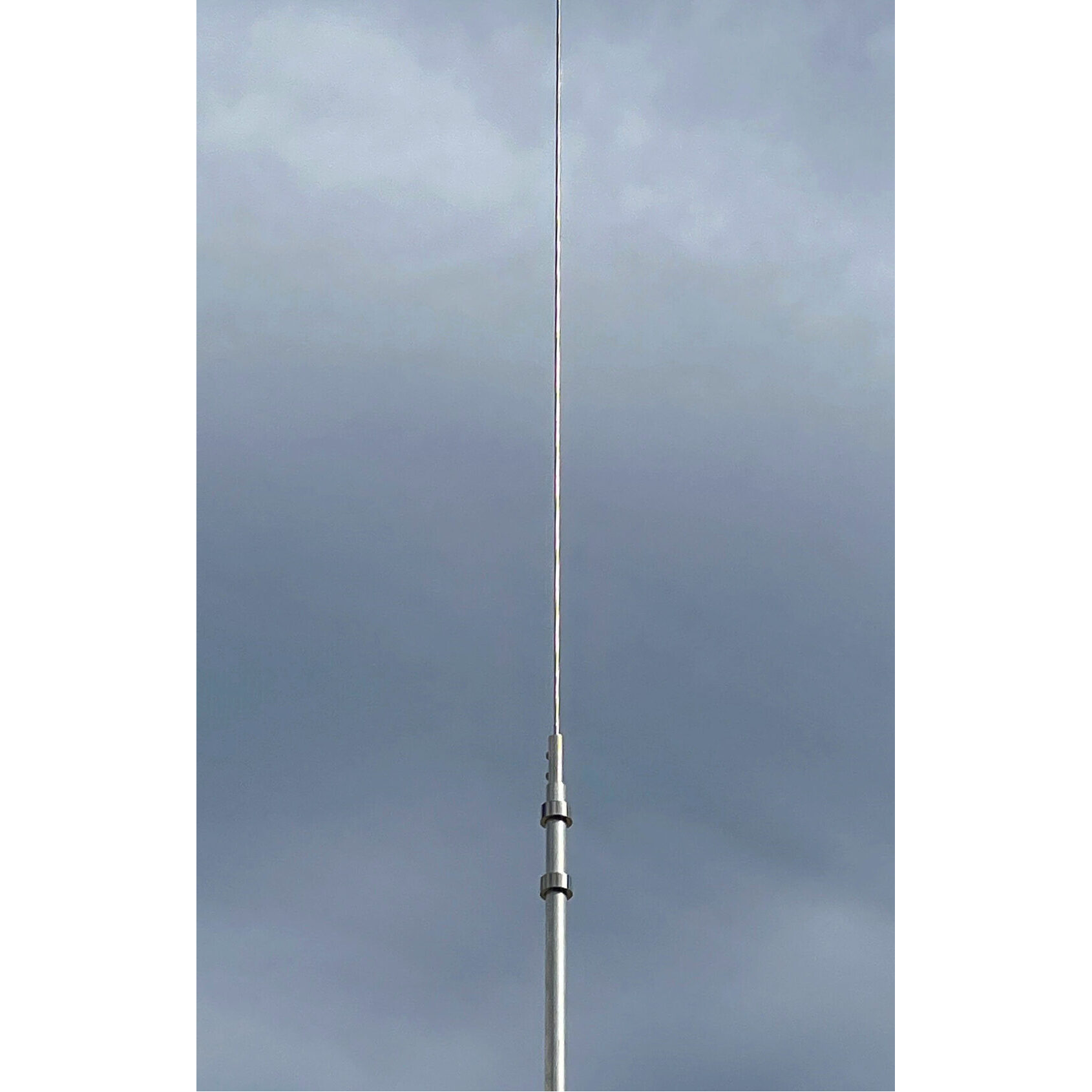

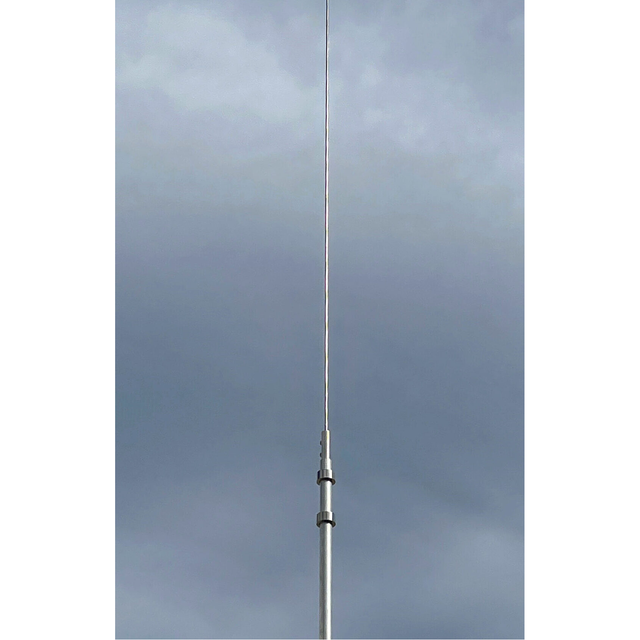

Comet CHA-250HD
MPN CHA-250HDSKU 14087Product type Base Antenna
Regular price
$47995
Unit price
Documents
Key Specifications
- Frequency Range
- 3.5-5 MHz, 5-7 MHz, 7-10 MHz, 10-14 MHz, 14-18 MHz, 18-21 MHz, 21-24 MHz, 24-26 MHz, 26-28 MHz, 28-30 MHz, 30-40 MHz, 40-50 MHz, 50-54 MHz
- Antenna Design
- Omnidirectional
- Gain
- Low Gain (0-3 dBi)
- Bands
- Single Band
Product details
Manufacturer
NCG Comet
Product Narrative

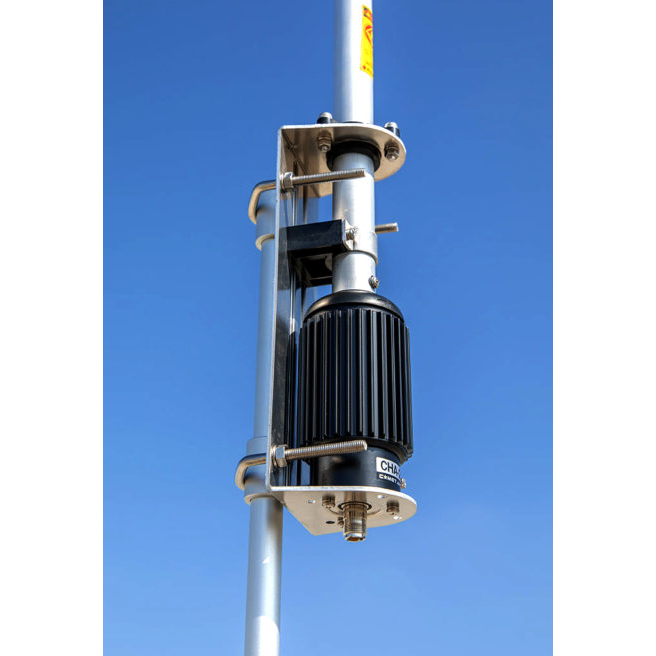

CHA-250HD (New version of the CHA-250B). The top section of aluminum has been replaced with a solid whip for greater flexibility and less strain on the lower sections in high winds. . The CHA-250HD Transformer Section This is a the “magic” behind the CHA-250HD, the transformer matching section. The transformer on the original CHA-250 had smooth sides. The current version has a heat sink to dissipate heat created inside the transformer. Yes, some of the RF that enters the power feeding section is turned into heat rather than transmitted as RF, but that is one of the compromises needed to create a broad-band, low SWR, multi-band HF antenna with minimal visual mpact. 3.5-57MHz. The Comet CHA-250B is a newly design broadband vertical with NO GROUND RADIALS. This antenna is EXTREMELY easy to assemble, requires no tuning or adjustments and VSWR is under 1.6:1 from 3.5-57MHz!
Specific Freq. (MHz)
3.5-57MHz
Maximum Input Power (Watts)
250 Watts SSB & 125 Watts FM
Direct Termination
SO-239 (UHF Female)
Overall Length
23' 5"
Rated Wind Velocity (MPH)
67 MPH
Mount Hdw. Incl.
Yes
Weight
7 Lbs 1oz
Warranty
1 Year
