Description
Description
Manufacturer
CommScope
Model #
L1TDM-PL
Product Description

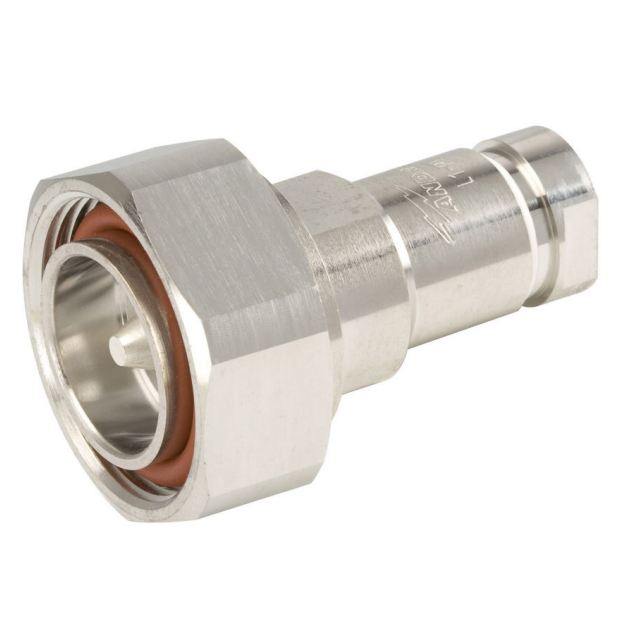

CommScope's L1TDM-PL 7/16 DIN Male Positive Lock straight connector for 1/4 in LDF1-50 cable. 0 - 8000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Self-flare outer attachment, Captivated inner attachment. Meets RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015
Maximum VSWR
1.07:1
RF Connector
7/16 DIN Male
RF Impedance
50 Ohms
RF Connector Body Style
Straight
Body
Straight
Low PIM
No
Body Material
Tri-Metal Plated Brass
Fits
1/4" LDF150
Frequency Range
0-8000 MHz
