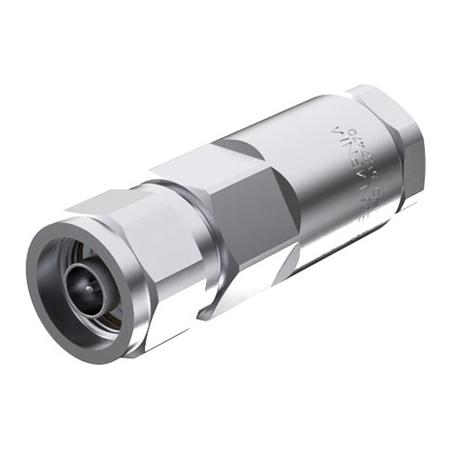

Commscope L4PNM-H

CommScope's N Male straight connector for 1/2-inch HELIAX LDF4-50A cable.

Electrical Specifications:

• 0 - 8800 MHz Operating Frequency Band
• 50 Ohm Cable and Connector Impedance
• 0.05 dB Insertion Loss, typical
• 2 mOhm Inner Contact Resistance, maximum
• 0.3 mOhm Outer Contact Resistance, maximum
• 707 V RF Operating Voltage, maximum (vrms)

Materials:

• Solder Inner Contact Attachment Method
• Gold Inner Contact Plating
• Self-flare Outer Contact Attachment Method
• Trimetal Outer Contact Plating

Related Item: 1/2 in EASIAX Manual Cable Preparation Tool for LDF4-­50A Coax Cable

• SKU: 7330 | PN: MCPT-L4

Meets RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
