Description
Description
Bands:
3.5 - 30MHz

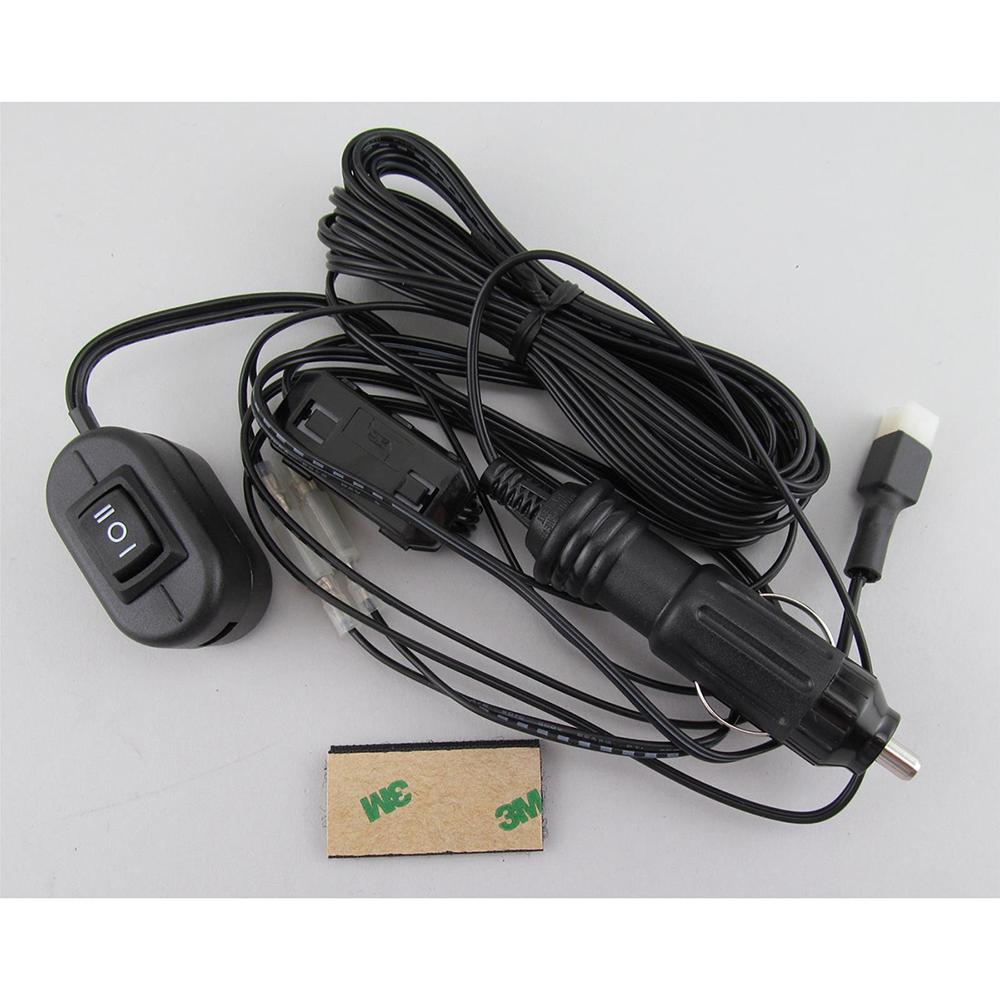

Power Supply voltage & current:
DC 12v 100mA
Max Power Rating:
200W (SSB)
Height:
Approx. 66" (28 MHz)
Approx. 73" (3.5 MHz)
Weight:
1.1kg

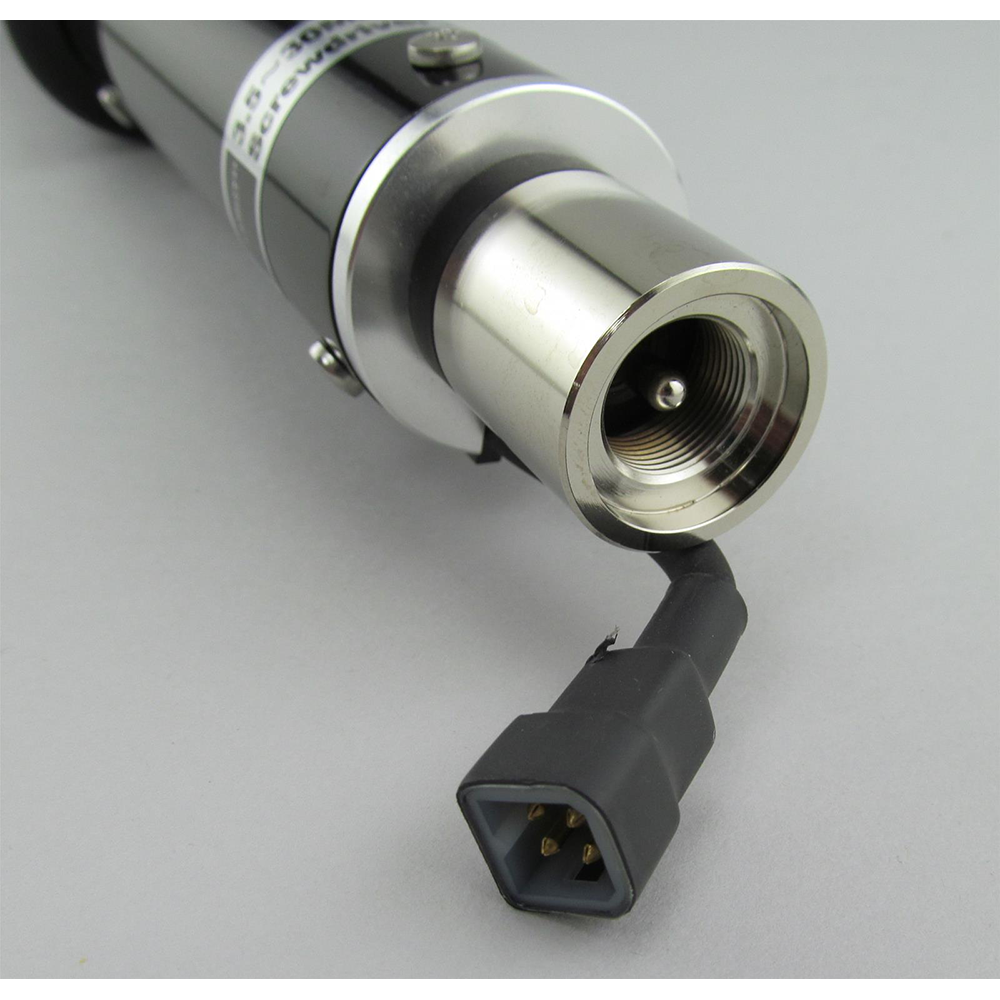

Connector:
PL-259
Type:
1/4l center loading
VSWR:
Less than 2.0 / Impedance: 50Ω
Up-down time:
Approx. 50 sec. (3.5-30Mhz )
Approx 20 sec. (7-30MHz)

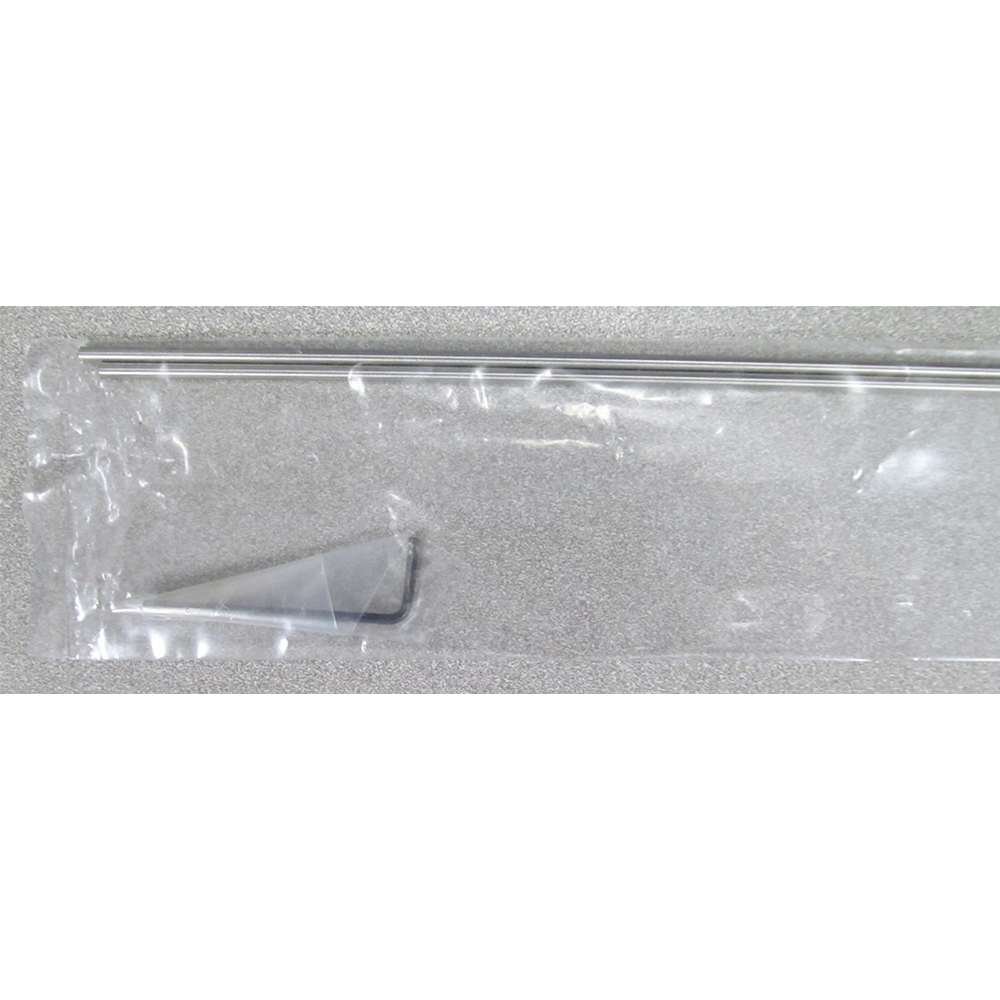

NOTE: The SD330 uses the car body for its ground. The bracket and the car body need to be well grounded. Comes with OPE750 (pictured below) for tuning 7-50MHz.
