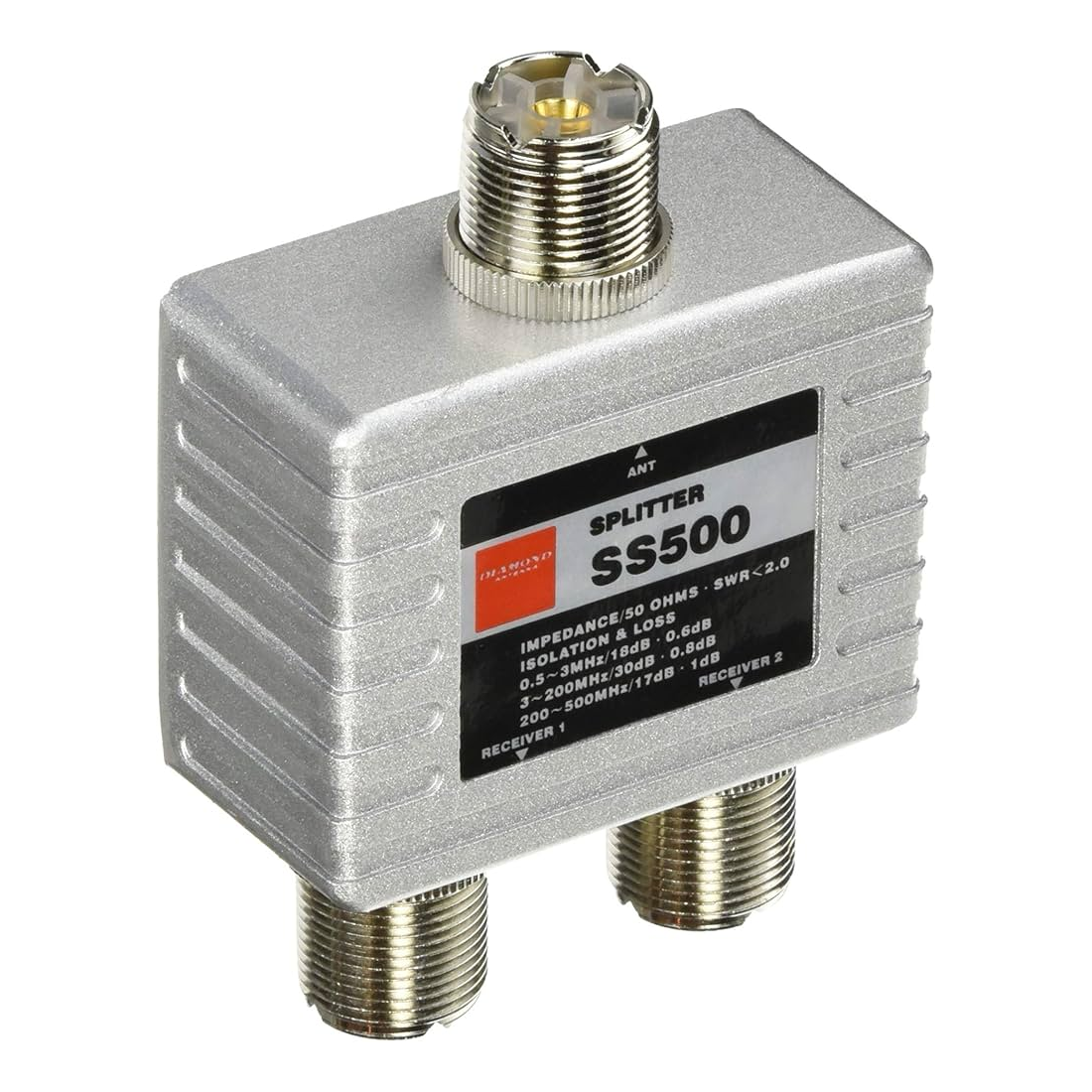

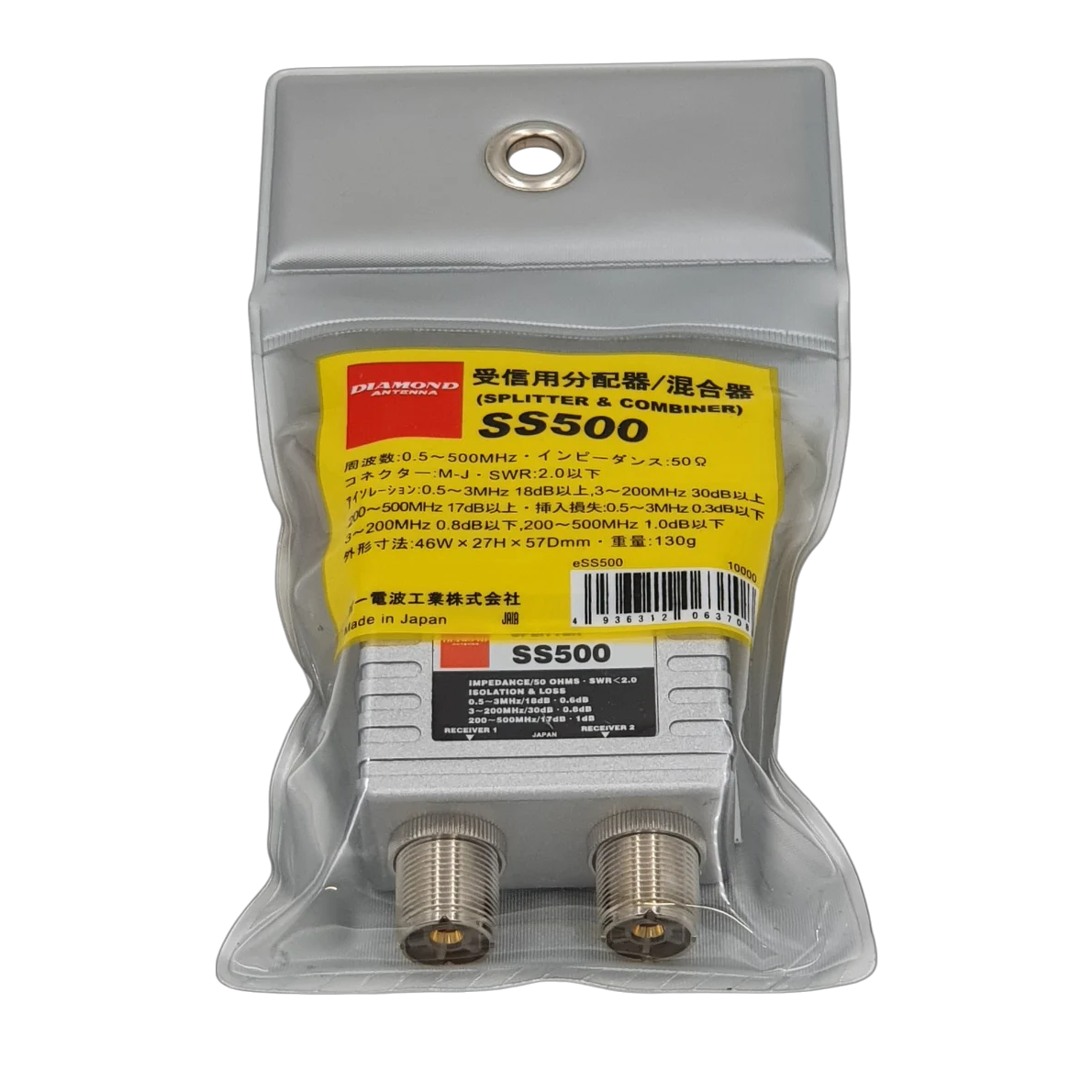

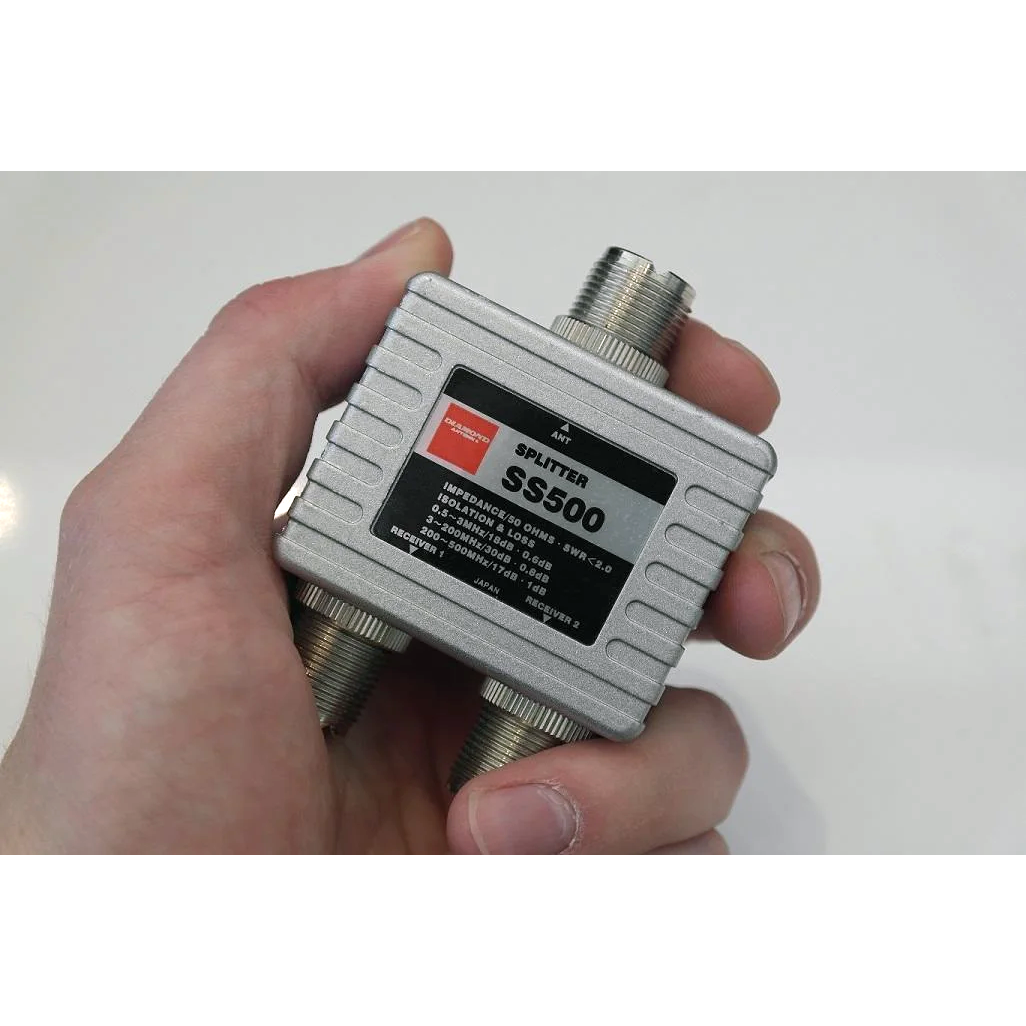

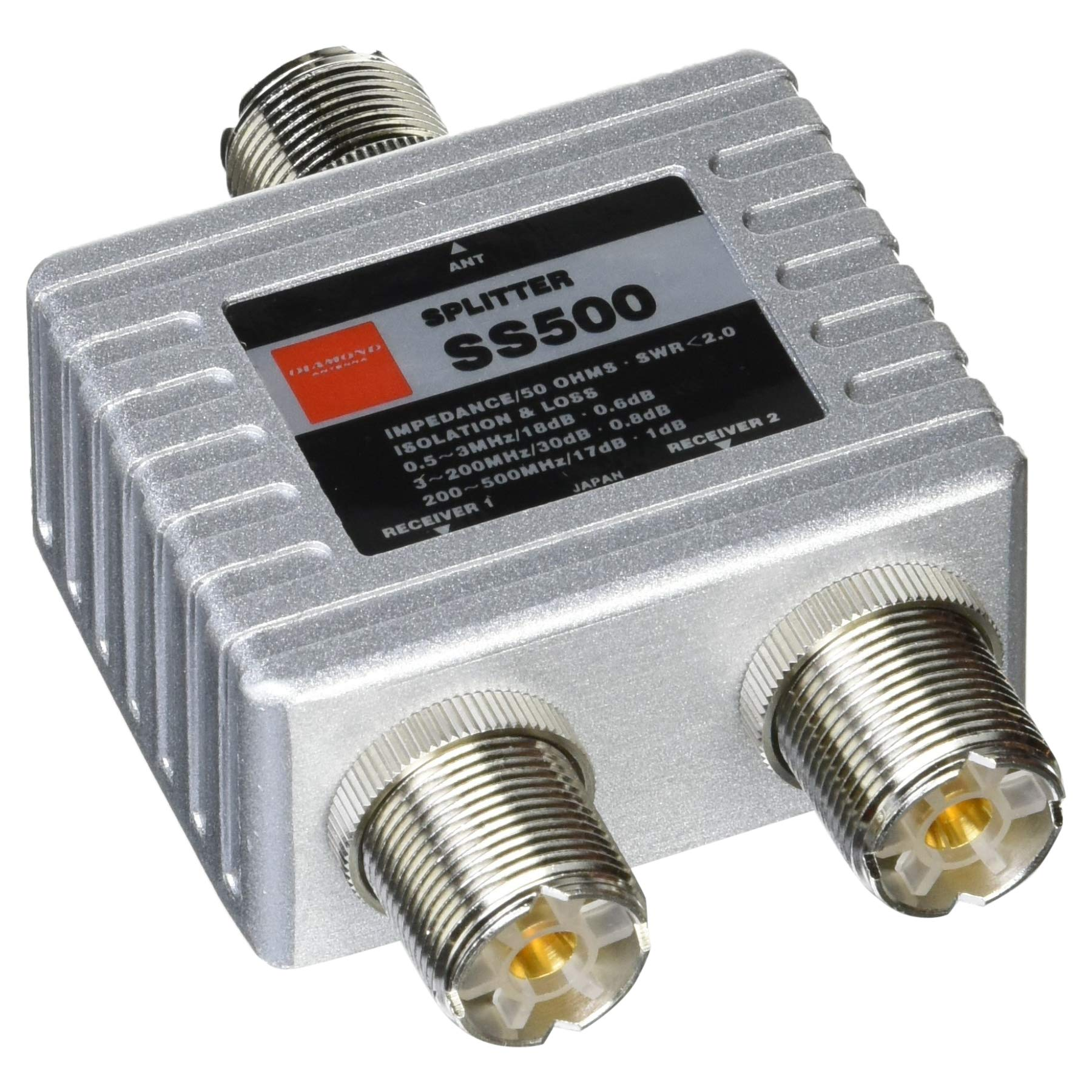

Diamond SS-500

A very handy device for either combing two antennas for one receiver, or one antenna for two receivers. Works effectively from 500 kHz up to 500 MHz. Great if you have two receivers that you want to share on one antenna. The isolation is sufficient that interference from one receiver does not interfere with the other even although they are sharing the same antenna.

Key Features/Specifications:
Frequency: 0.5-500MHz
Isolation Between Ports: 0.5 -3 MHz >18 dB, 3 - 200 MHz > 30 dB, 200 - 500 MHz > 17 dB
Insertion Loss: 0.5 - 3 MHz < 0.6 dB, 3 - 200 MHz < 0.8 dB, 200 - 500 MHz < 1.0 dB
Impedance: 50 Ohms (nominal)
Receive Only: (not for transceivers)
Connectors: SO-239 x 3
Size: 46mm x 27mm x 57mm
Weight: 130 g
