Description
Description
Manufacturer
DuraComm
Product Description

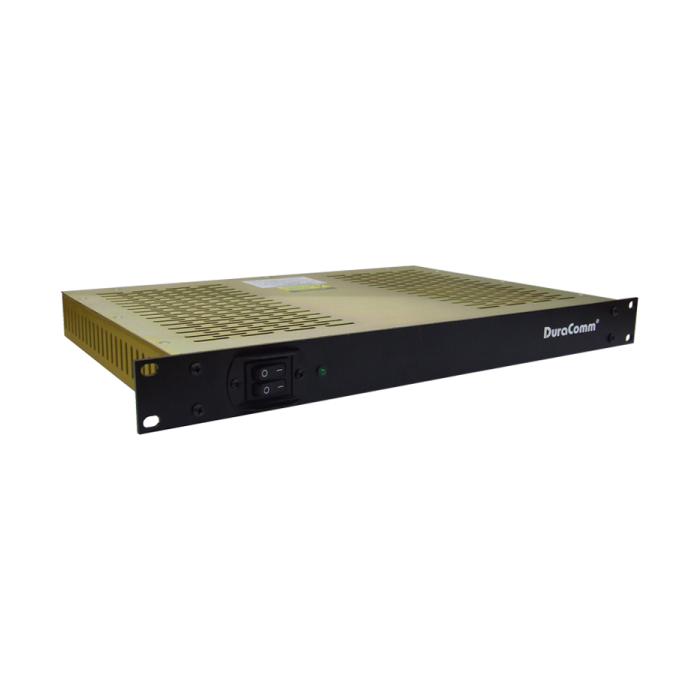

Heavy Duty AC to DC 1500 Watt Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis
Product Narrative
The HE1U-10012-BBLVD is a Heavy Duty AC to DC 1500 Watt Power Supply with a low voltage disconnect in a 1U chassis. The HE1U-10012-BBLVD comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. This model also comes with a manual battery disconnect switch, and power supply DC-OK for each module. The HE1U-10012-BBLVD comes with a 3 year warranty.
Output Current (Amps):
13.3
Output Voltage VDC:
13.8
Input Voltage VAC:
90 to 264
DC-OK:
YES
Disconnect / Reconnect VDC:
10.4 / 12.5
Suggested Battery Capacity:
60-120 Ah
Weight (lbs):
12.0
Battery Disconnect Switch:
YES
