Manufacturer
DuraComm
Product Description

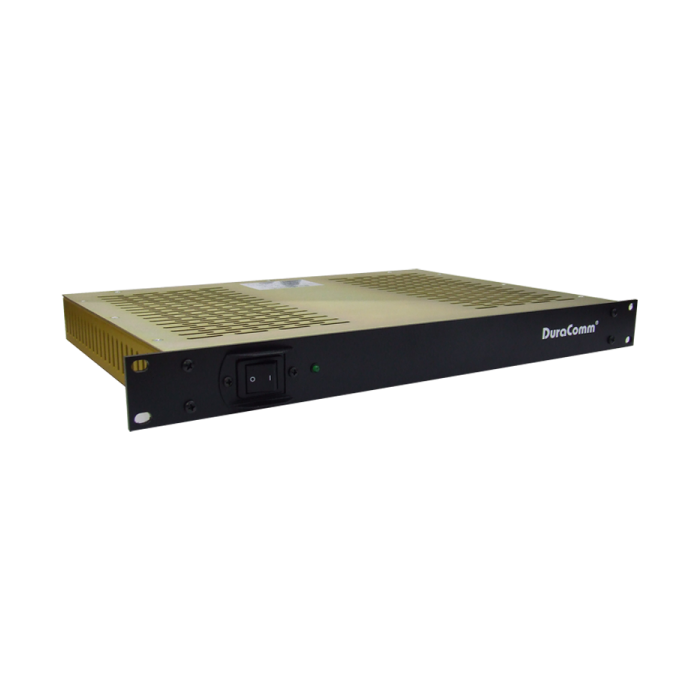

Heavy Duty AC to DC 1500 Watt Power Supply at 13.8VDC output in a 1U chassis
Product Narrative

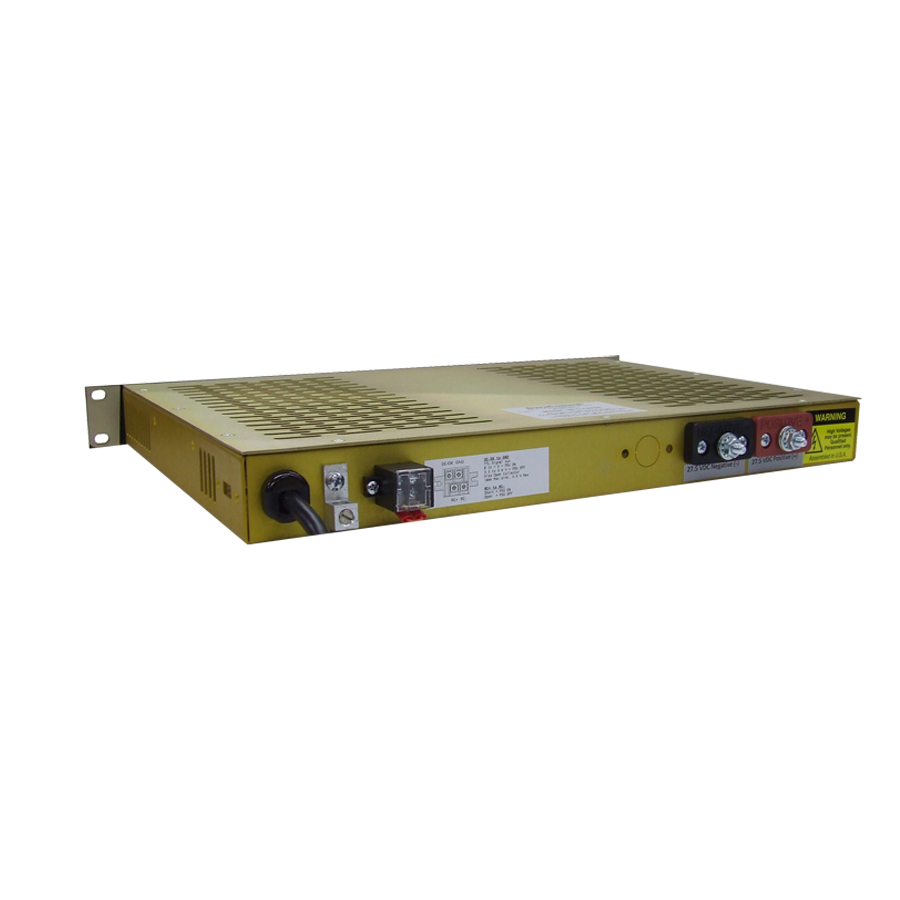

The HE1U-10012 is a Heavy Duty AC to DC 1500 Watt Power Supply in a 1U chassis. Available in two standard configurations, optional remote monitoring and control, and with additional customization options available. The internal power supply has ON/OFF remote control, and DC-OK connected to the HE1U-10012 rear terminal strip. The HE1U-10012 comes with a 3 year warranty.
Output Current (Amps):
100
Output Voltage VDC:
13.8
Input Voltage VAC:
90 to 264
Charging Current Amps:
N/A
DC-OK:
YES
Disconnect / Reconnect VDC:
N/A
Suggested Battery Capacity:
N/A
Panel Height:
1.75"
Weight (lbs):
12.0
Battery Disconnect Switch:
NO
