DuraComm
Product Description
Heavy Duty AC to DC 20A Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis
Product Narrative

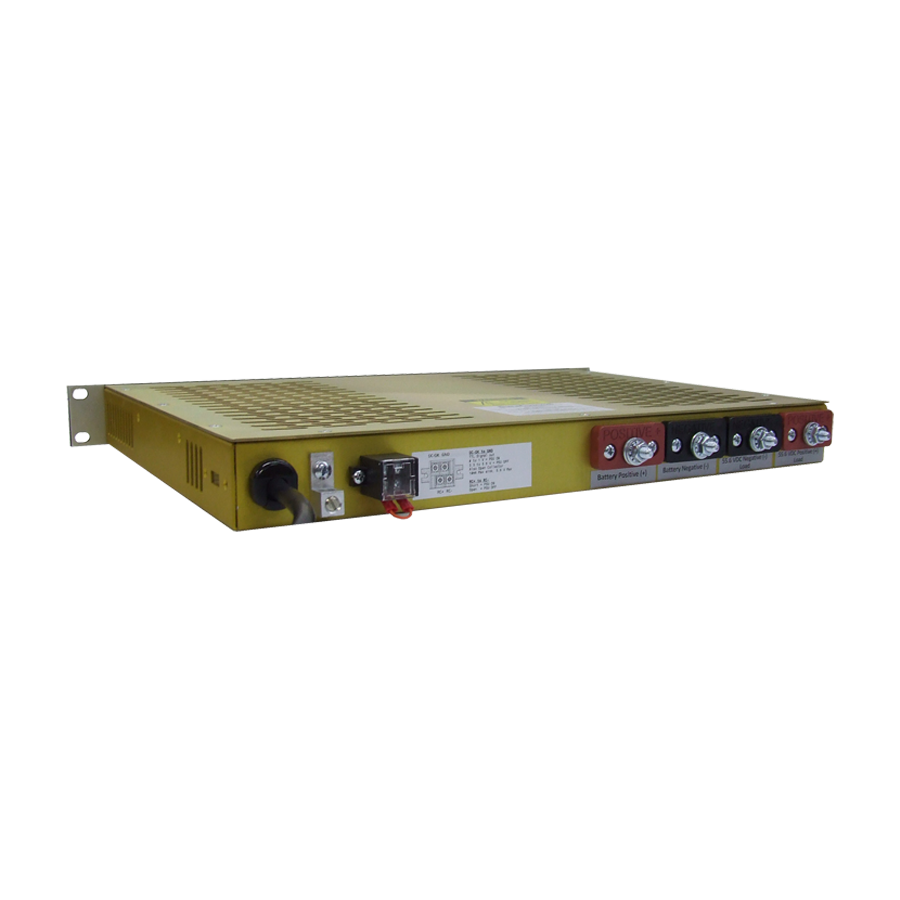

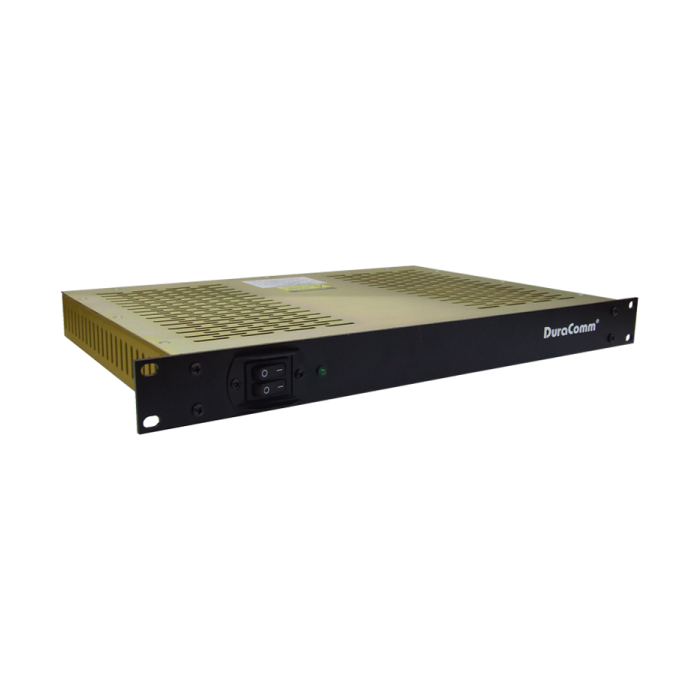

The HE1U-2012-BMS is a Heavy Duty AC to DC 300 Watt Power Supply with a 120 Watt smart charger and low voltage disconnect in a 1U chassis. The HE1U-2012-BMS comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. This model also comes with a manual battery disconnect switch, internal power supply ON/OFF remote control, and DC-OK. The HE1U-2012-BMS comes with a 3 year warranty.
Output Current (Amps):
20
Output Voltage VDC:
13.8
Input Voltage VAC:
110 or 220
Charging Current Amps:
7.2
DC-OK:
YES
Disconnect / Reconnect VDC:
10.4 / 12.5
Suggested Battery Capacity:
60-120 Ah
Weight (lbs):
8.4
Battery Disconnect Switch:
YES
