Manufacturer
DuraComm
Product Description

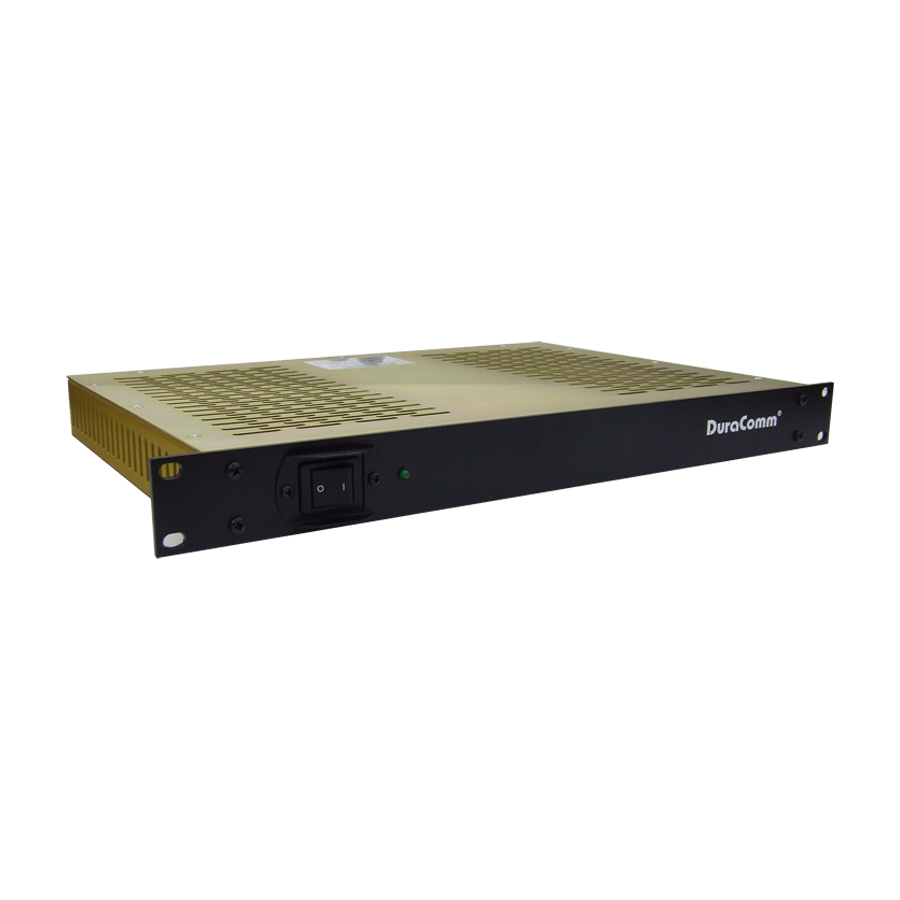

Heavy Duty AC to DC 20A Power Supply at 13.8VDC output in a 1U chassis
Product Narrative

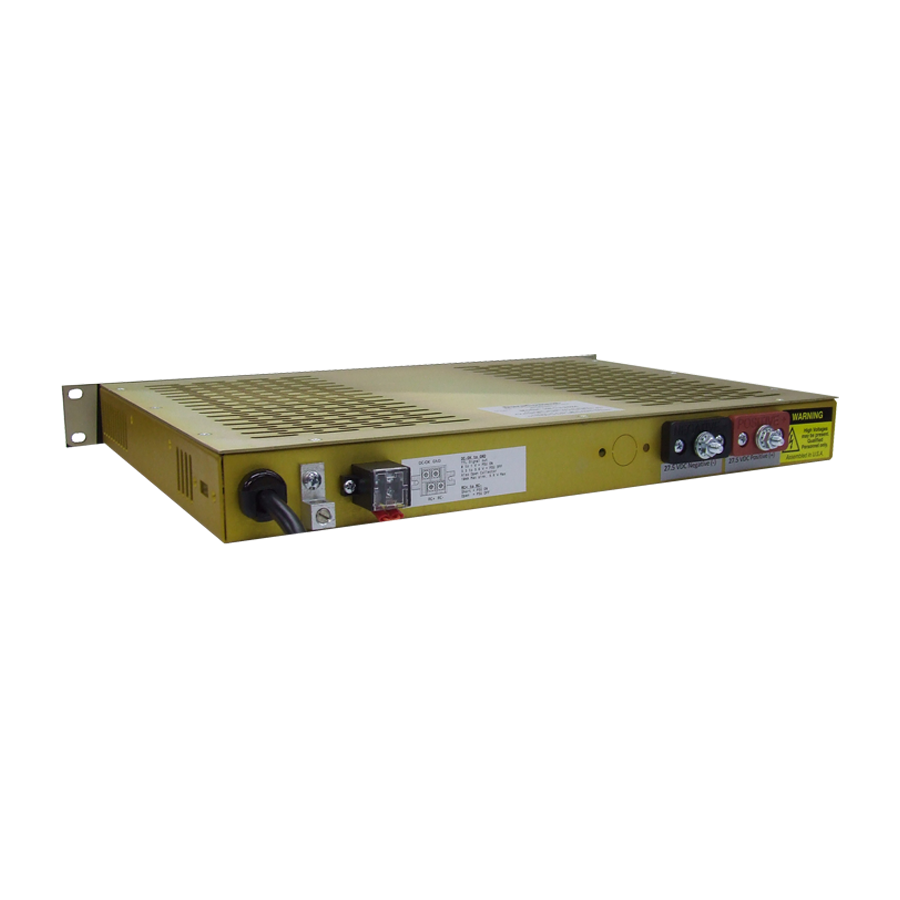

The HE1U-2012 is a Heavy Duty AC to DC 300 Watt Power Supply in a 1U chassis. The HE1U-2012 comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. The internal power supply has ON/OFF remote control, and DC-OK connected to the HE1U-2012 rear terminal strip. The HE1U-2012 comes with a 3 year warranty.
Output Current (Amps):
20
Output Voltage VDC:
13.8
Input Voltage VAC:
90 to 264
DC-OK:
YES
Weight (lbs):
1 Each
Battery Disconnect Switch:
NO
