Description
Description
Manufacturer
DuraComm
Product Description

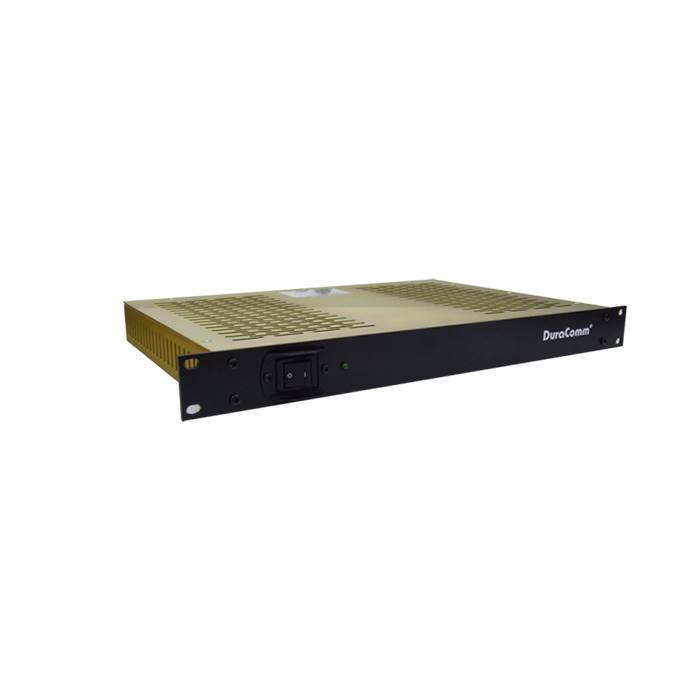

Heavy Duty AC to DC 50A Power Supply at 13.8VDC output in a 1U chassis
Product Narrative

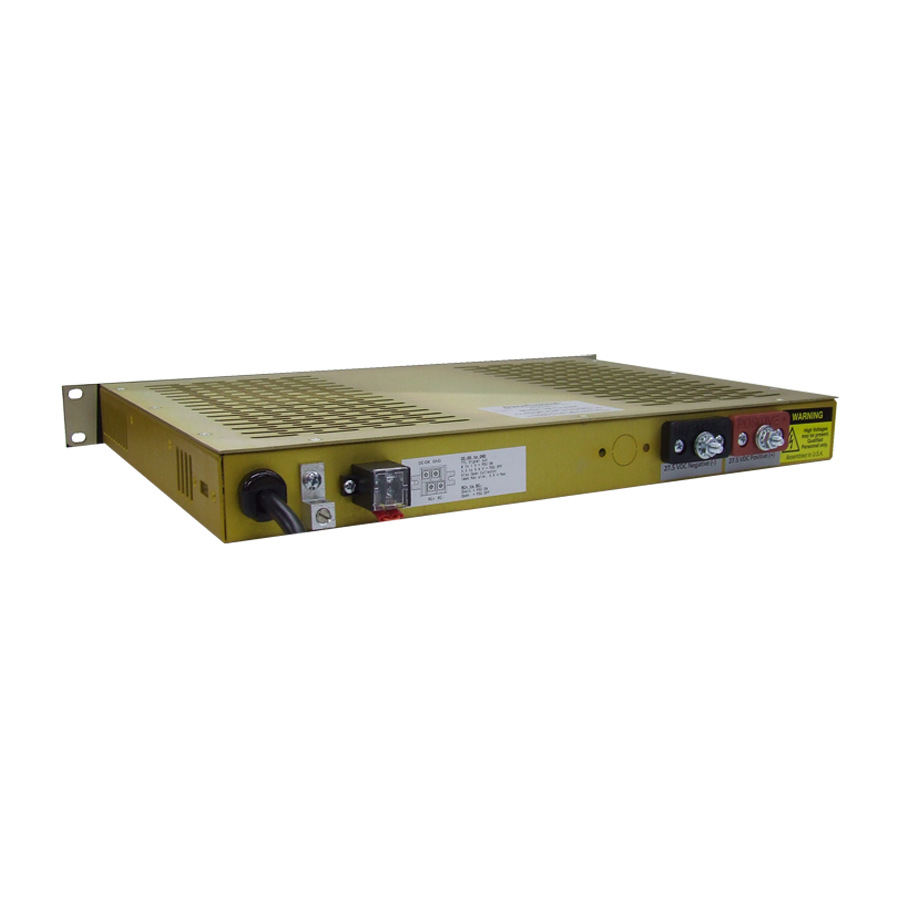

The HE1U-5012 is a Heavy Duty AC to DC 750 Watt Power Supply in a 1U chassis. The HE1U-5012 comes with power factor correction, and four layers of protection against overload, over voltage, over temperature, and short circuit. The internal power supply has ON/OFF remote control, and DC-OK connected to the HE1U-5012 rear terminal strip. The HE1U-5012 comes with a 3 year warranty.
Output Current (Amps):
50
Output Voltage VDC:
13.8
Input Voltage VAC:
90-264
Charging Current Amps:
N/A
DC-OK:
YES
Panel Height:
1.75"
Weight (lbs):
8.0
Dimensions:
1.75"H x 19"W x 14"D
