Description
Description
Manufacturer
DuraComm
Product Description

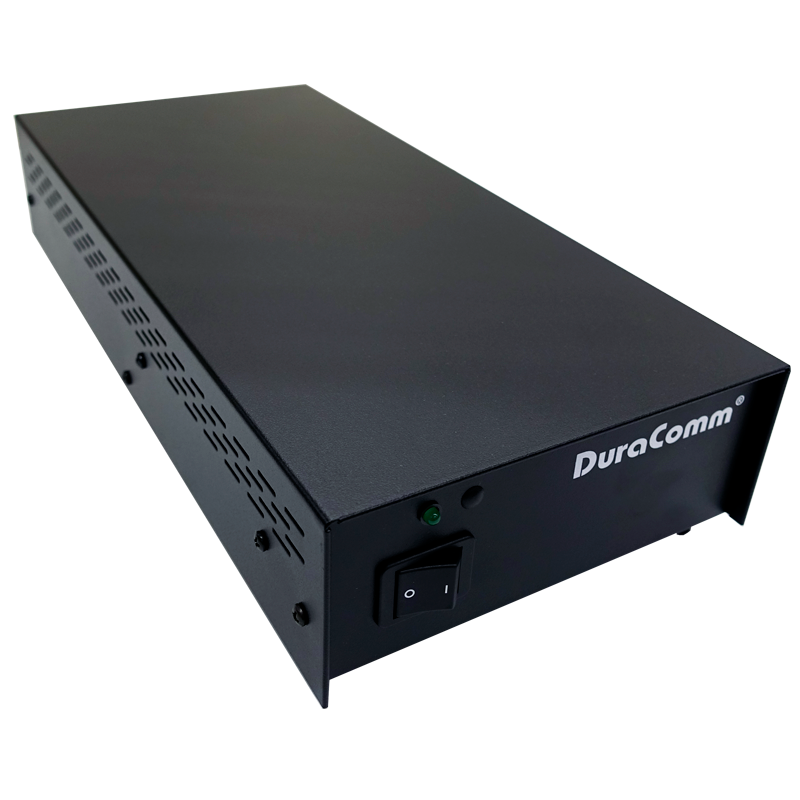

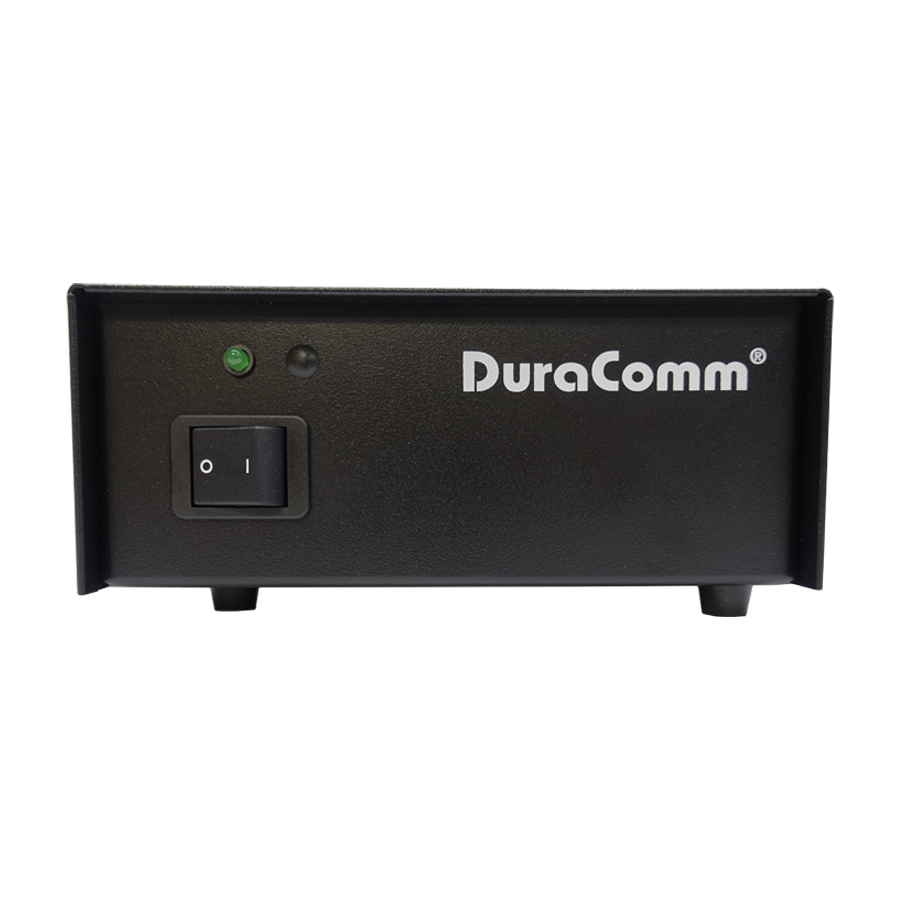

LPB-12H Desktop Power Supply
Product Narrative

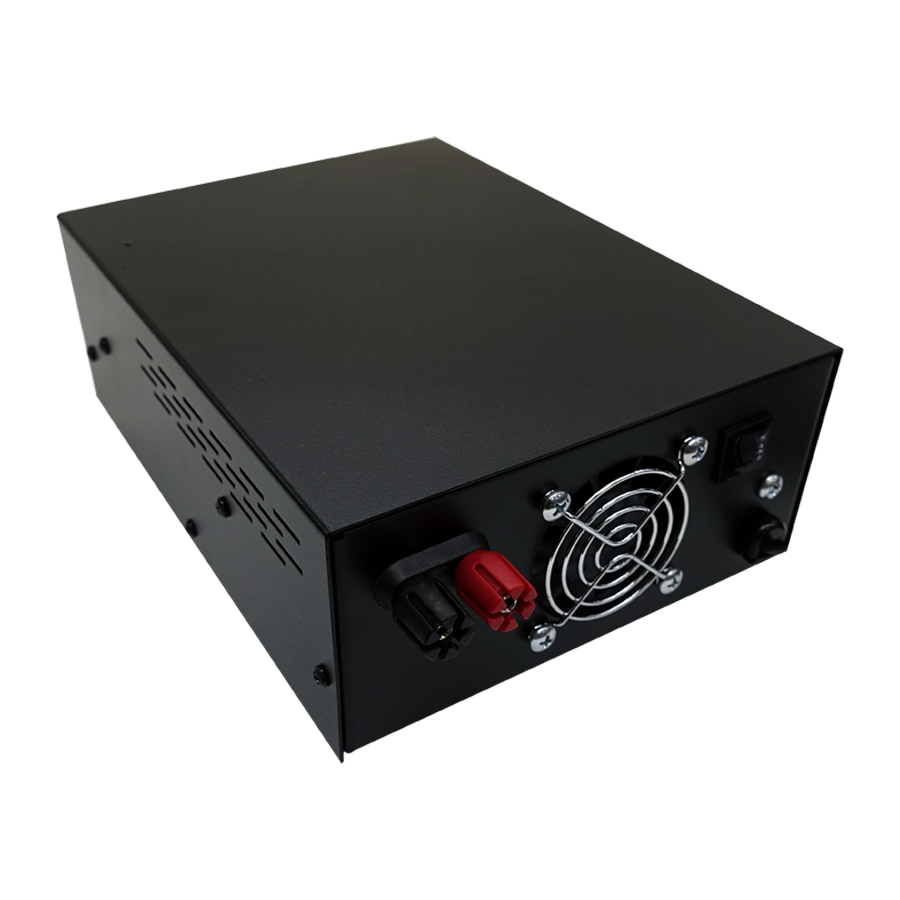

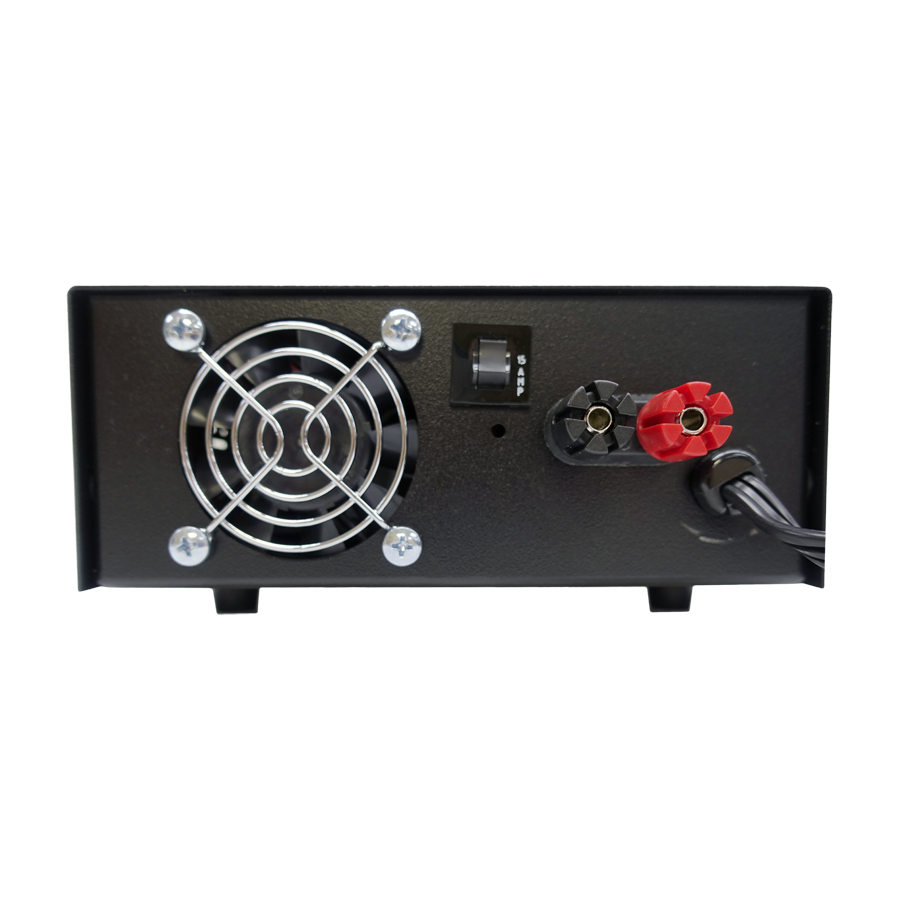

DuraComm’s LPB-12H power supply is pre-set to convert 100 to 260 volt 50/60 Hz AC power to low noise and ripple 13.8 volt DC power. The AC input is auto-ranging and can be used without any changes. The power supply also contains a built-in, replaceable sealed lead acid battery that automatically takes over should AC power be disrupted. The DC output operating voltage from the internal battery and AC charger circuitry is delivered to the red and black jacks located on the rear panel. The power supply DC output is protected against inadvertent shorts and overloads by a thermal circuit breaker.
Output Current (Amps):
12
Output Voltage VDC:
13.8
Input Voltage VAC:
100-260
Charging Output VDC:
13.8
Charging Current Amps:
1.5
Internal Battery:
12 Ah
Weight (lbs):
13
Dimensions:
3.75"H x 7"W x 16"D
