Manufacturer
DuraComm
Product Description

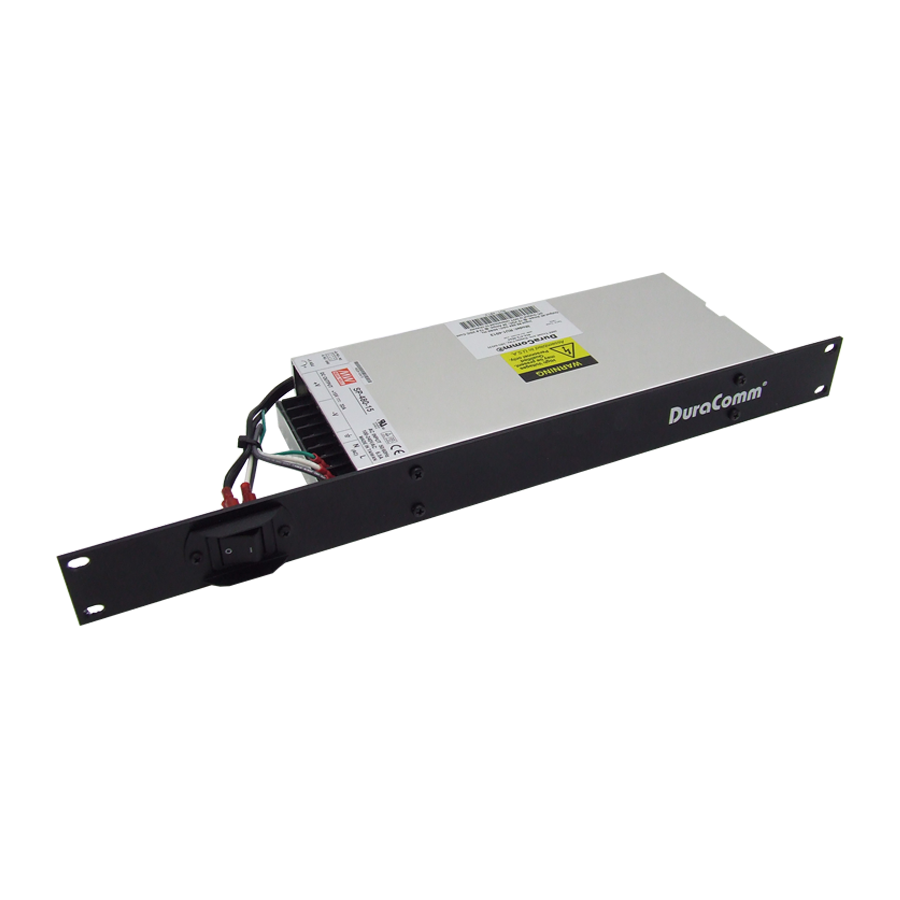

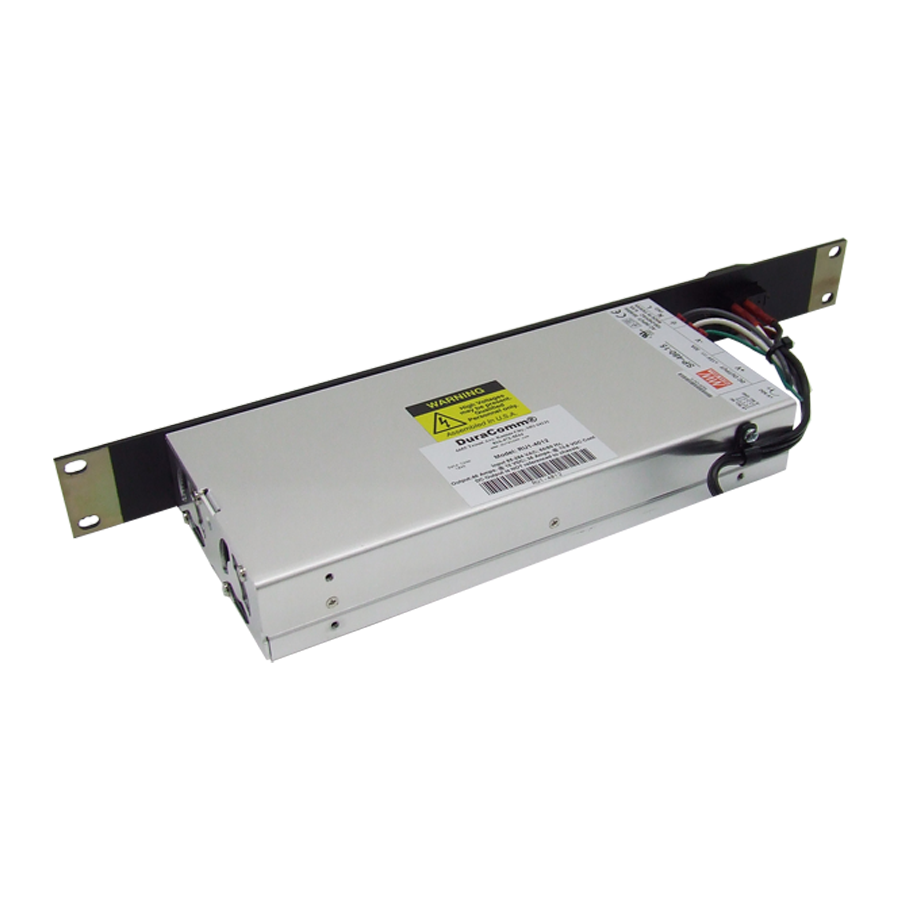

Low Profile 1 RU Open Frame Models, 22 Amps
Product Narrative
The RU1-2012 has a universal AC input and full range. These units have a high efficiency of up to 89 percent. The operating temperature for these units is -40°C to over 70°C with a built-in cooling fan. All of the RU1 series come with at least three layers of protection from short circuit, overload, over voltage, and over temperature.
Output Current (Amps):
22
Output Voltage VDC:
13.5-18
Input Voltage VAC:
85-264
N+1:
NO
Meters:
NO
Panel Height:
1.75"
Weight (lbs):
7
Dimensions:
1.75"H x 19"W x 4.75"D
