Manufacturer
EM Wave, Inc
Product Description

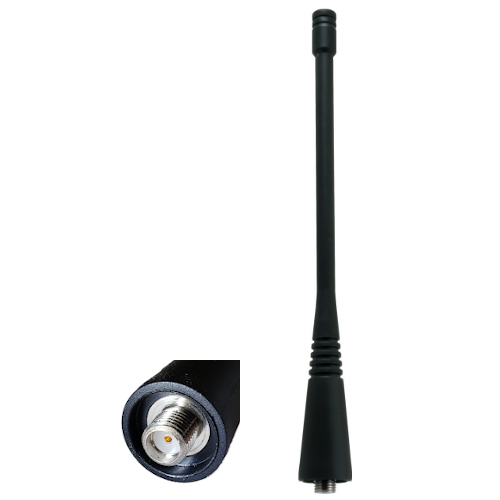

Multi-Band Portable Antenna, Kenwood OEM Replacement, 380-520 MHz / 698 - 870 MHz
- Flexible
- Rugged
- Weatherproof
- Integrated/Molded Cap
- Direct fitment with OE portable radios
Frequency Band
380 – 520 / 698 - 870 MHz
VSWR
<2.0:1, typ.; 2.6:1 max @380 MHz
Impedance
50Ω
Gain
2.0 dBi
Power Ratin
10 Watts
Polarization
Vertical
Radiation Pattern
Omnidirectional
Length EM-P90111-SF
5.3 ±.125 in. (135±3mm)
Connector
SF Type (SMA Female)
Over-Mold Material
TPEE
Connector Material, Finish
Brass, Nickel Plating
Weight
16g
Operation Temperature
-20°C to 65°C
Pull Force, Housing
6 kgf
Applied Torque, Housing
5 kgf-cm
