Description
Description
Manufacturer
EMR Corp.
Mfg. Model No.
64534/ENC
Product Description

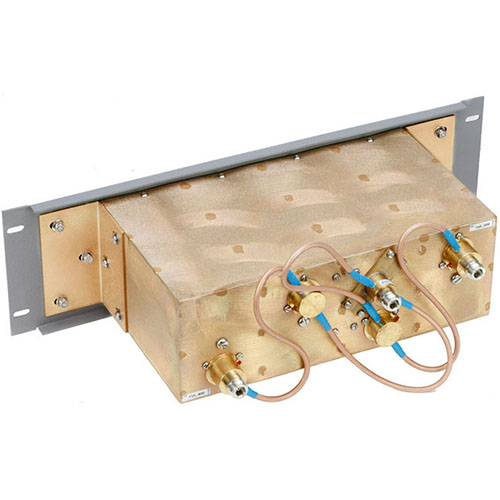

144-174 MHz Base Duplexer
Type
Pass/Reject Duplexer
Freq. Range (MHz)
144-174
Application
A Duplexer combines a transmitter and a receiver to one antenna.
Product Narrative
VHF pass/reject duplexer
Min. Seperation (MHz)
5 MHz
Maximum Input (Watts)
100
Insertion Loss (Tx/Ant-dB)
1.2
Insertion Loss (Rx/Ant-dB)
1.2
Isolation Rx (Notch-dB)
80
Isolation Tx Side
80 min
Connectors
N Female
No. of Cavities/Size
4 (3")
temp. Range deg-C
Maximum VSWR @ 50 Ohms
1.22@20db
Tuning Method
Factory Tune
Size (HxWxD")
7" x 19" x 9 3/4"
Finish
Chem Film
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Year
