Description
Description
Manufacturer
EMR Corp.
Description

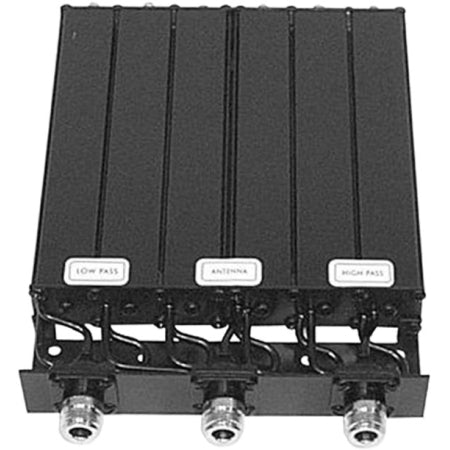

450-460 MHz mobile duplexer. 50 watts, 70dB isolation, 5-15 MHz sep., 1.2dB max insert loss. N female term
Freq. Range
450-460 MHz
Application
A duplexer is a device that will allow both a transmitter and a receiver to operate from a single antenna (freeing up tower space, and reducing cable runs etc.)
Min. Separation (MHz)
5
Maximum Input (Watts)
50
Insertion Loss (Tx/Ant-dB)
1.2
Insertion Loss (Rx/Ant-dB)
1.2
Connectors
N Female
No. of Cavities
6
Maximum VSWR @ 50 Ohms
1.2:1
Tuning Method
Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE
Size (HxWxD")
1.3 x 6 x 1.375
Finish
Tek Black
Comment
Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order
Mfg. Warranty
5 Years
