Download the IDAS Brochure to learn what IDAS can do for you!
Radio Includes:

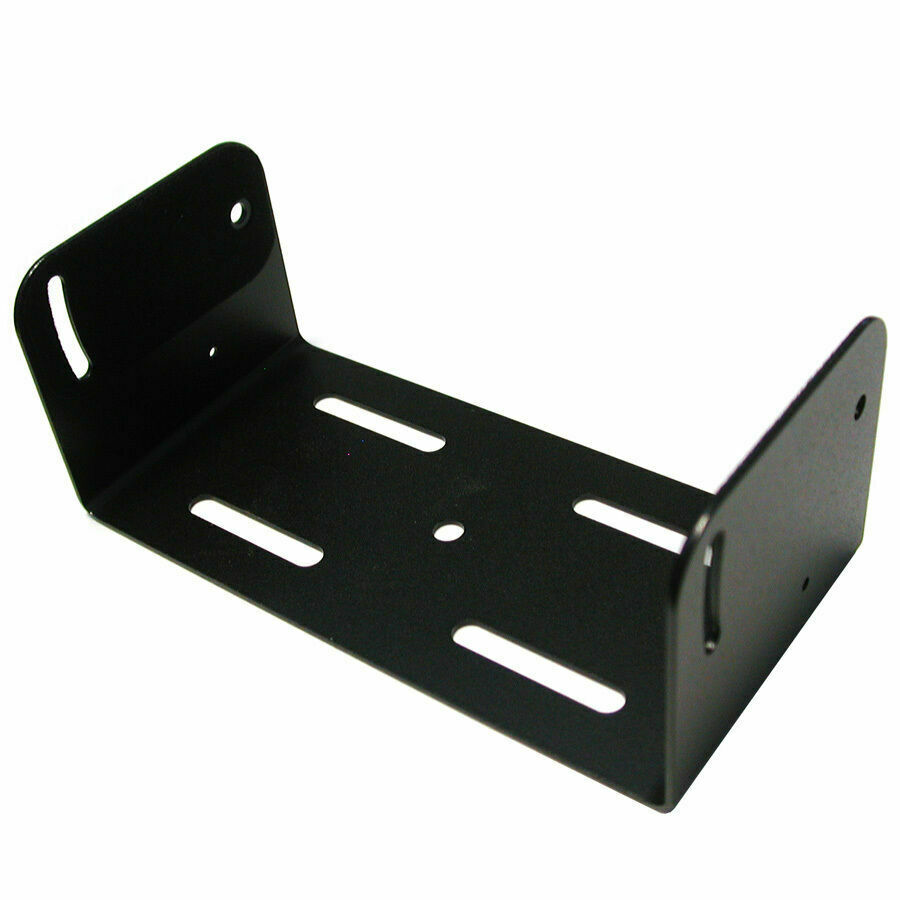

- Mounting Bracket

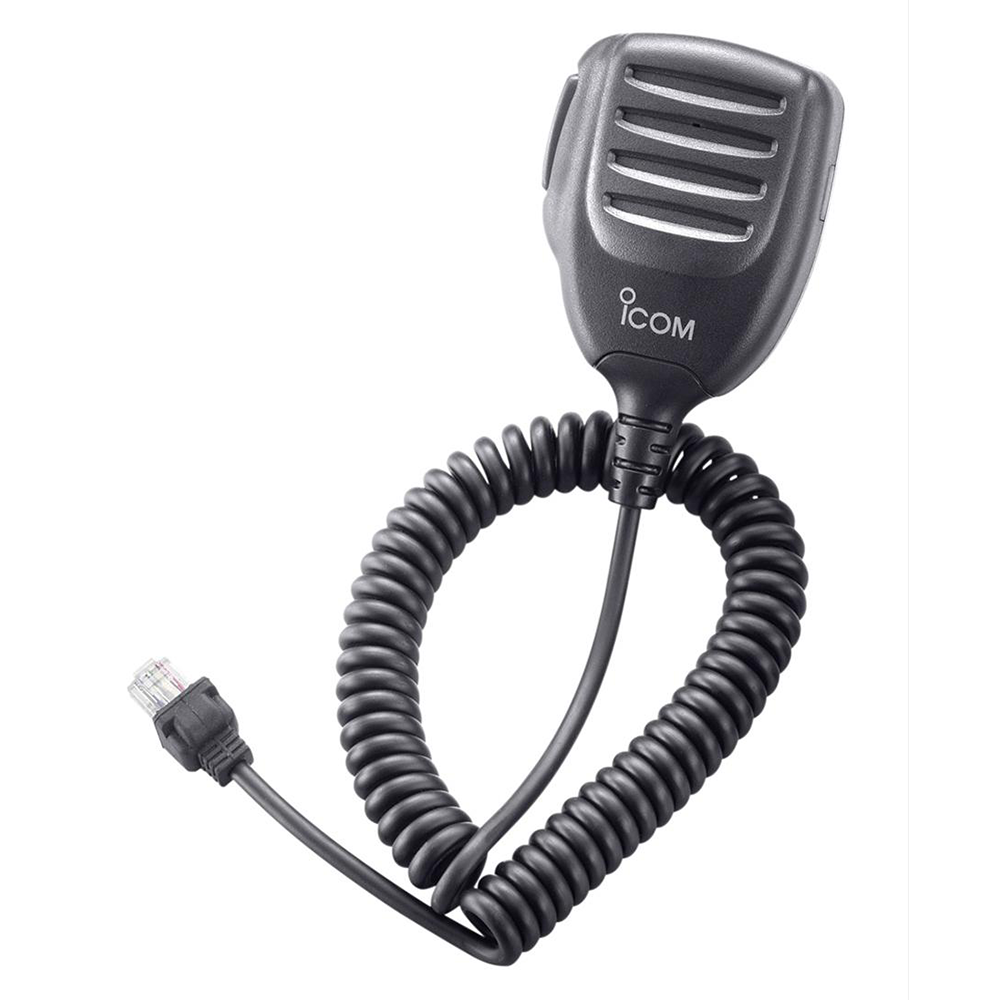

- HM-152 Microphone

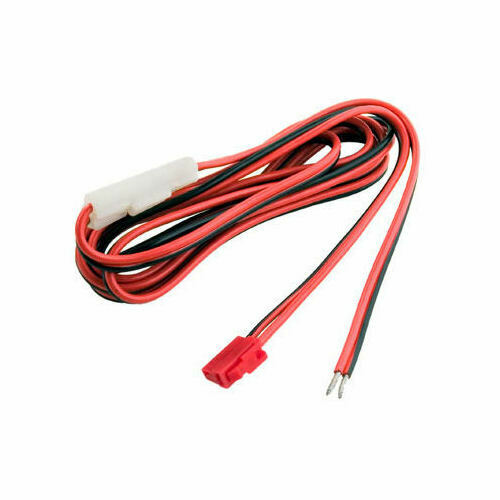

- 10ft DC Power Cable
- Microphone Hanger
- Misc Hardware (Screws, etc)
- 3 Year Factory Warranty
Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

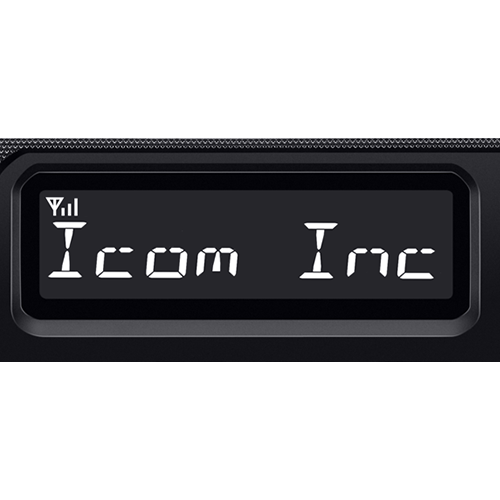

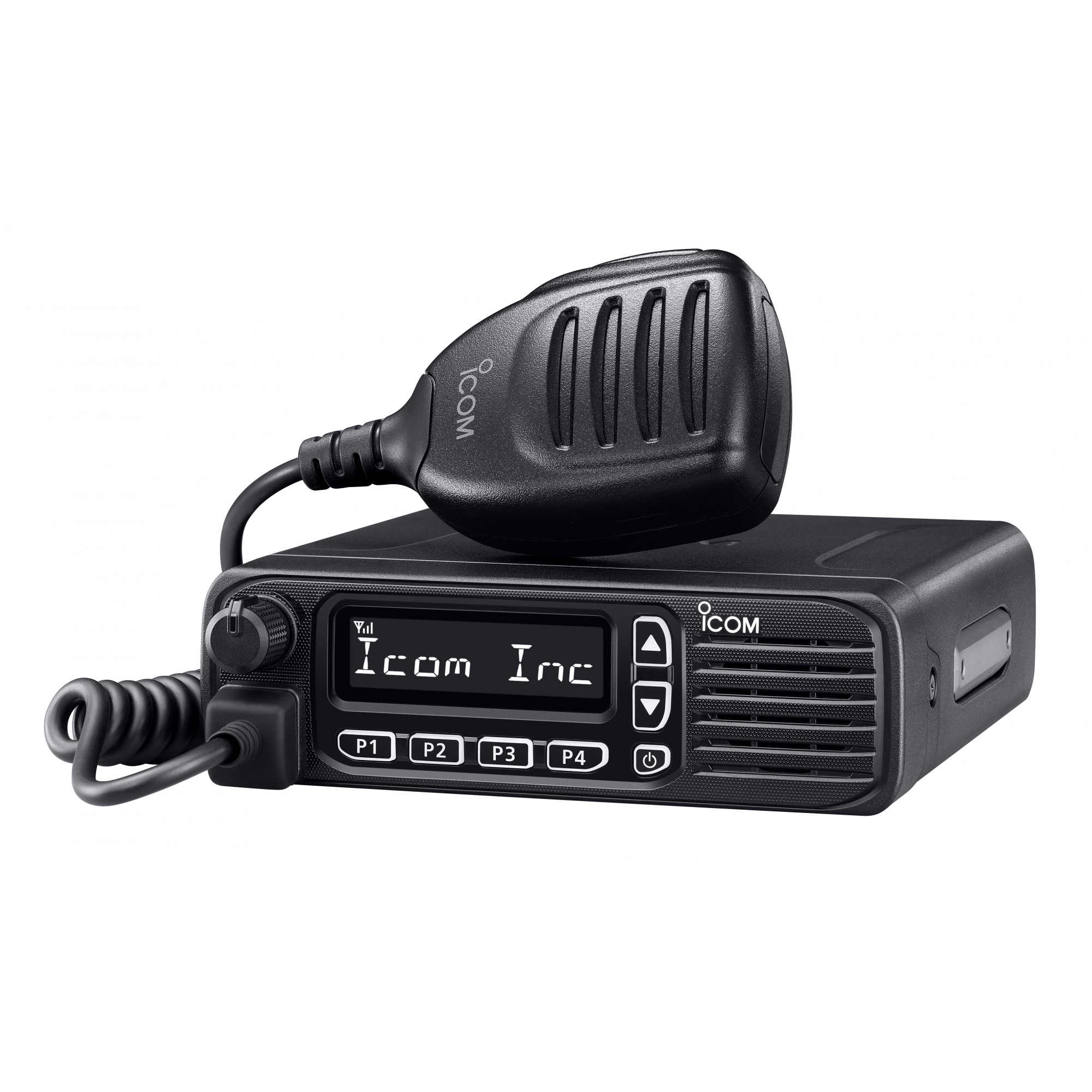

Improved visibility with High Contrast and Wide Viewing Angle Black Background LCD. The IC-F5130D series is a simple single-body IDAS™ mobile radio utilizing the latest Icom design platform and improved visibility with a high contrast and wide viewing angle black background LCD.

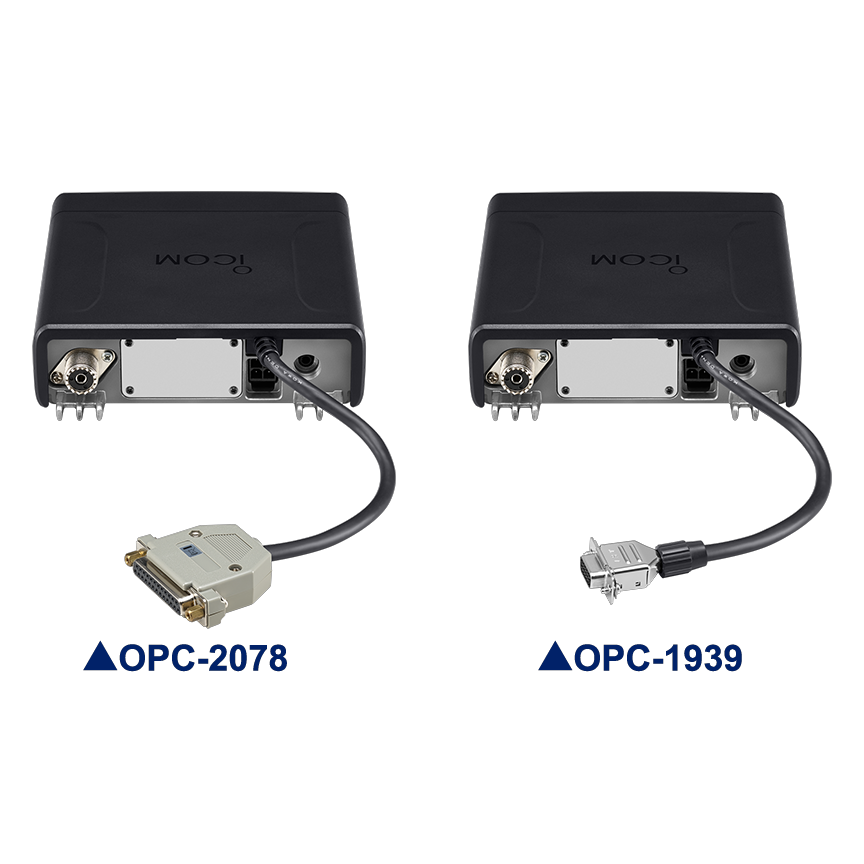

Input / Output Interface for External Devices with Optional D-SUB Accessory Cable. The ACC connector cable can connect various external equipment to the transceiver. It is possible to operate external equipment via the transceiver or operate the transceiver from the external equipment. Data Transfer over the air such as GPS location, barcode, or telemetry data is available. Remote control by transceiver can improve the efficiency of operations.
Dual Mode Operation – IDAS™ Digital Mode and Analog FM Mode
The IC-F5130D series supports Analog mode, IDAS™ digital multi-site conventional mode, and IDAS™ digital single-site trunking mode. And it is possible to migrate from Analog to Digital in accordance with end-user requirements.
Safe and Secure functions for Transceiver Operators
With the IC-F5130D series, it is possible to confirm the safety of the transceiver operator. If there is no transceiver operation, the Lone Worker function sounds an alert and prompts operation. Further more if the operation is still not performed, the transmission can be initiated forcibly to check the sound in the surrounded area and the status of operator. And the Power ON Password, Digital Voice Scrambler etc.. are available in the IC-F5130D series to protect the confidential communication.
General Features
- 136–174 MHz
- RF Output power 50 Watts
- 128 Channels / 8 Zones
- High contrast and wide viewing angle black background LCD
- Eight character alphanumeric display
- 4 W (typical) front mounted speaker
- MIL-STD-810 G shock, vibration, temperature and more
- DTMF autodial memories capability
- Microphone hanger action programｍable
- Four programmable buttons
- GPS position display and Auto-Timed GPS send (External GPS required)
Operating Mode
- NXDN™ conventional
- NXDN™ Type-D single-site trunking
- NXDN™ simulcast
- NXDN™ multi-site conventional over IP network
- Analog mode
Digital Functions (Voice and Data)
- PTT ID and ANI
- Over-the-Air Alias (OAA) displays the caller’s name without programming
- Individual, Group and All call
- Late entry for Group call
- Status call and Polling call
- Short data messages
- Call alert
- Radio check (RX only)
- Call log
- Talk back time
Analog Functions
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
- BIIS PTT ID transmission
Security and Safety
- Digital voice scrambler
- Emergency call and Lone worker
- Remote monitor (RX)
- Radio Kill, Stun and Revive (RX)
- Power on Password
Scan Functions
- Up to 17 scan lists programmable
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
Hardware Features
- GPS receiver connection with optional OPC-1939 ACC cable
- Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming
