Download the IDAS Brochure to learn what IDAS can do for you!
Radio Includes:

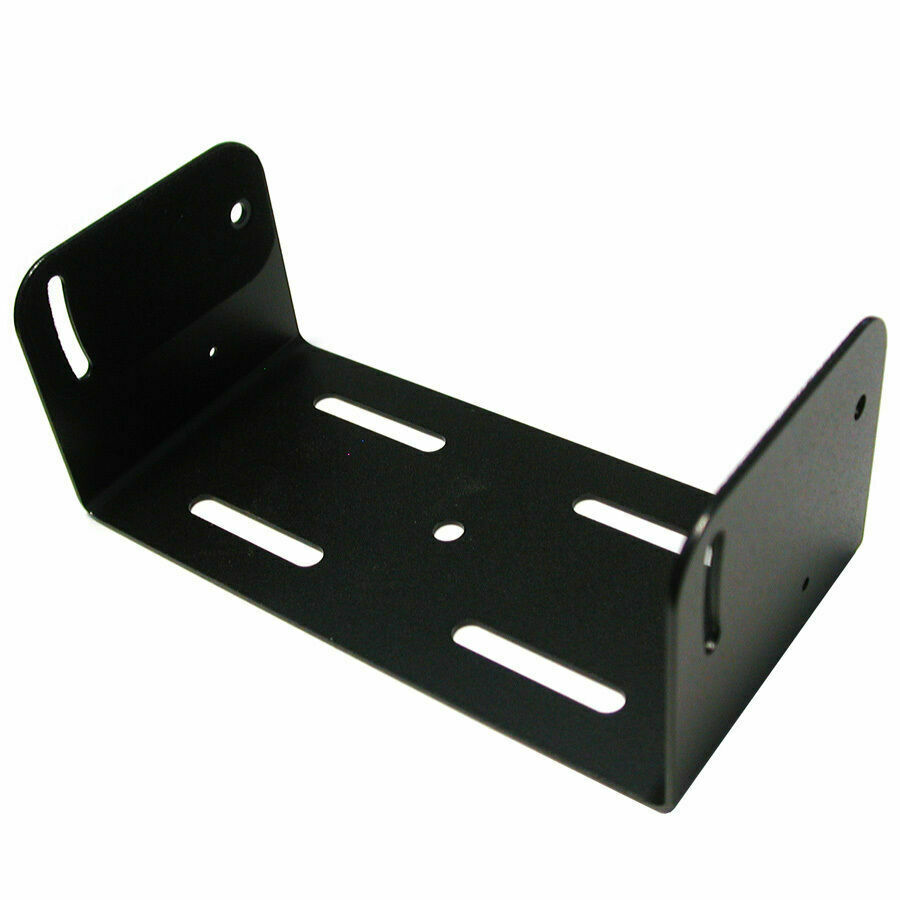

- Mounting Bracket

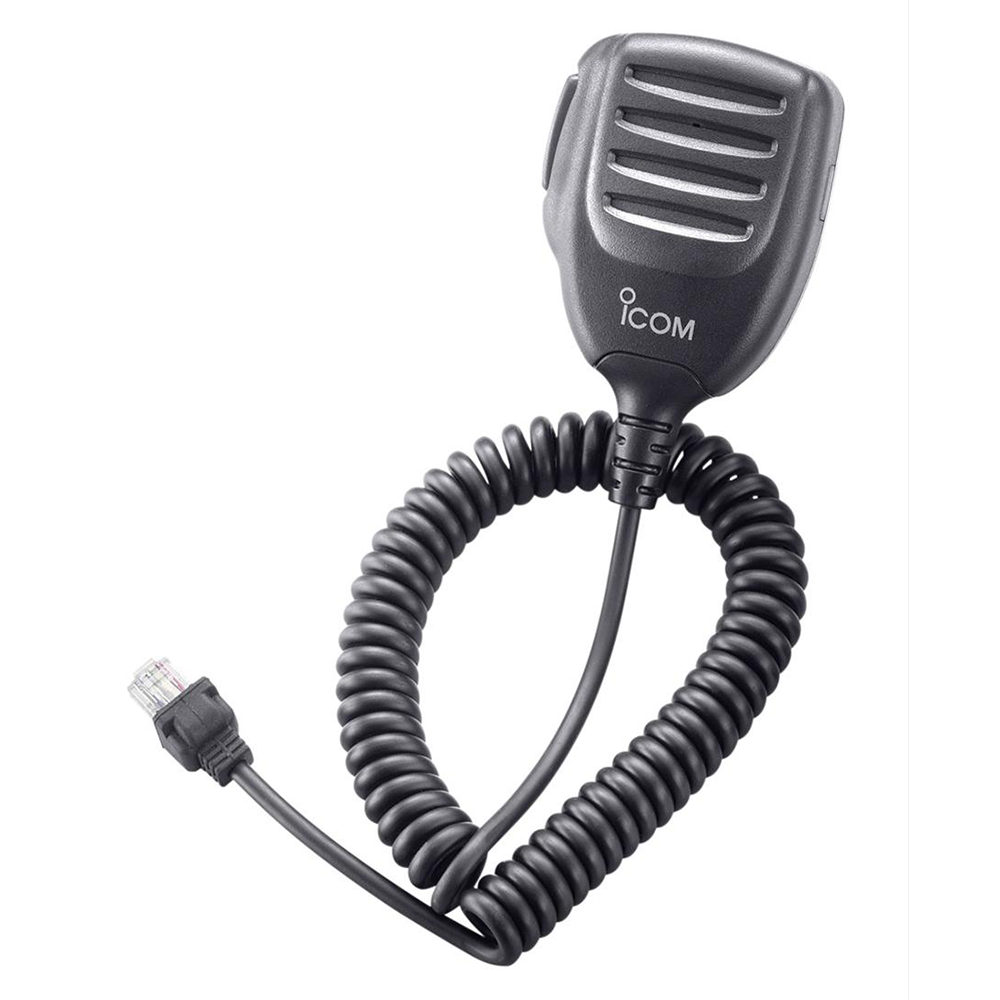

- Command Microphone

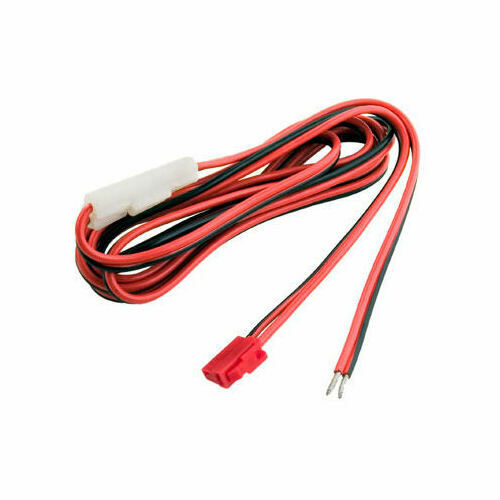

- 10ft DC Power Cable
- Microphone Hanger
- Miscellaneous Hardware (Screws, etc)
- 3 Year Factory Warranty
Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

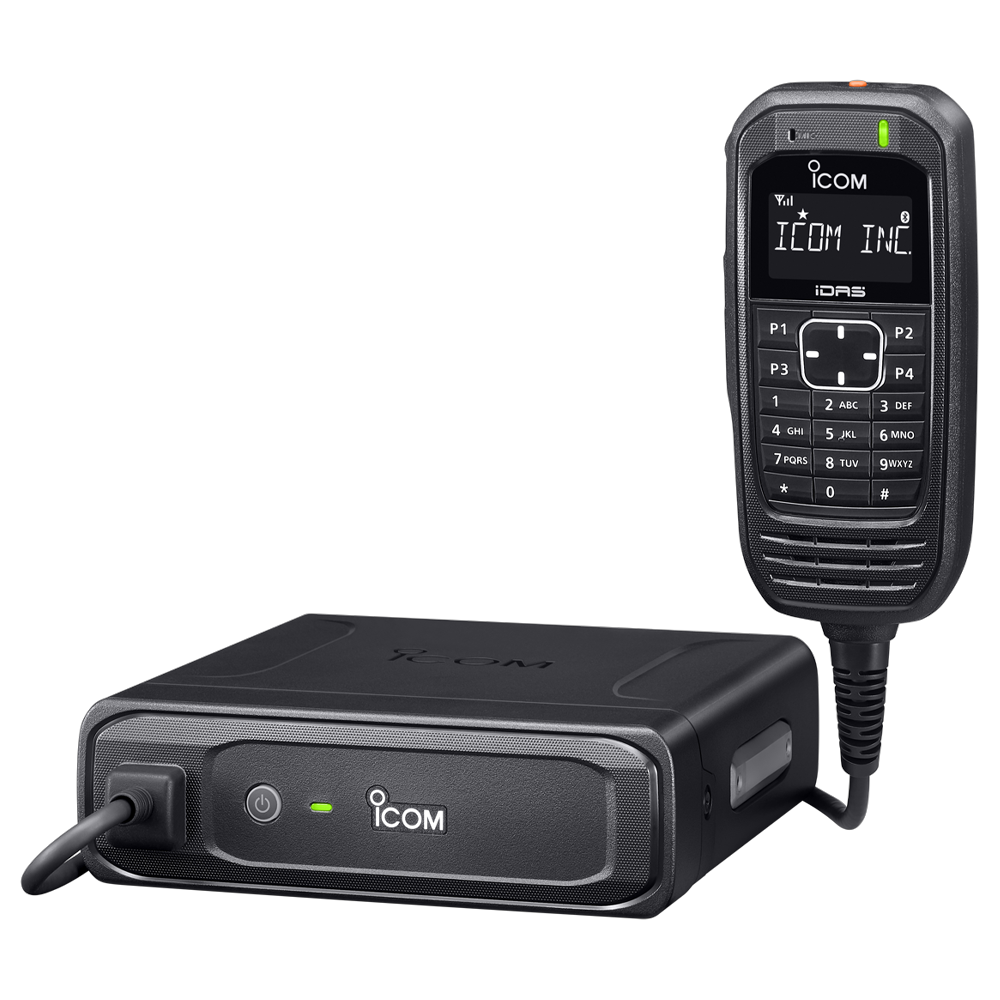

Space Saving, Flexible Installation PoE Remote-Control Mobile Radio

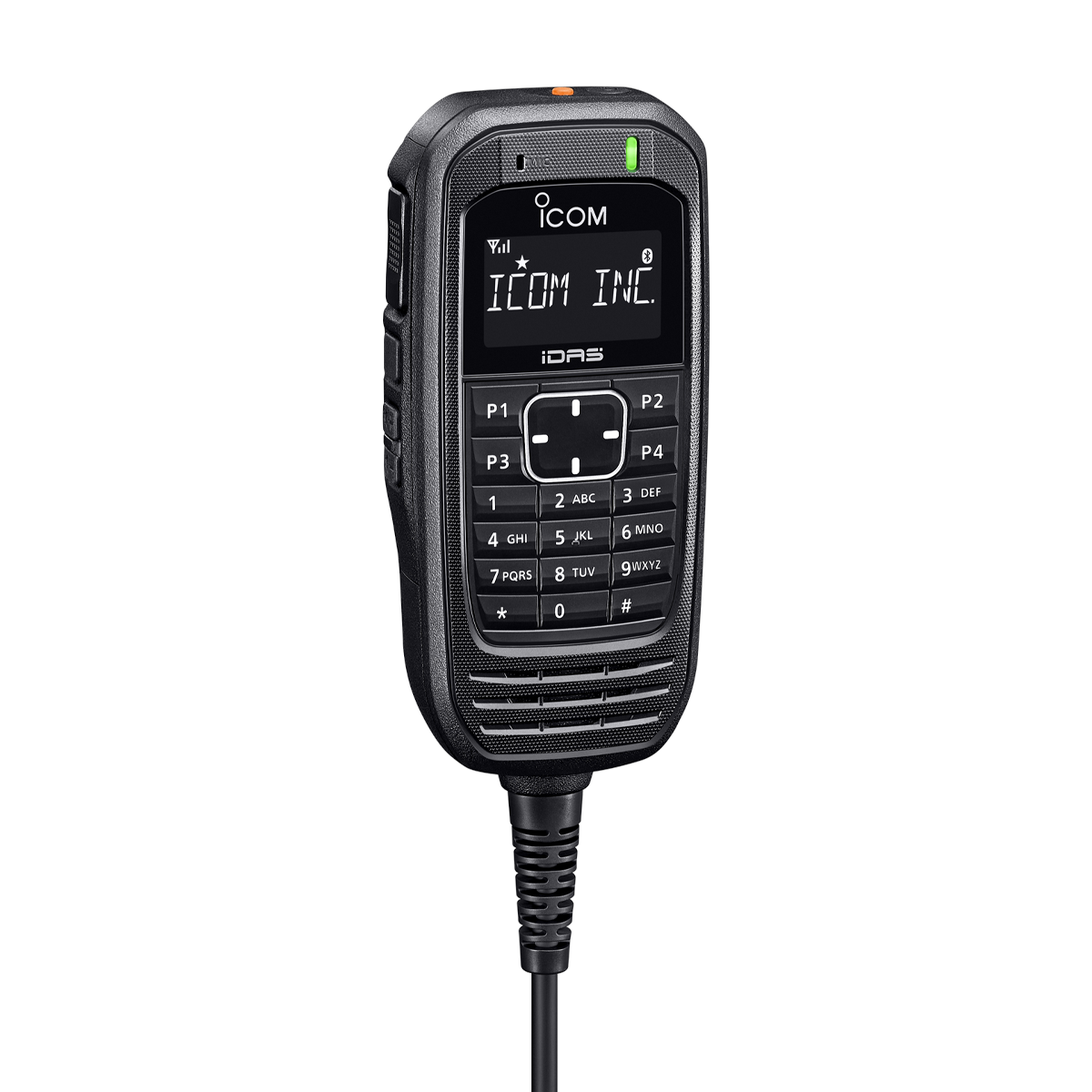

The IC-F5330D offers a flexible and unique installation solution that allows the main unit (RF unit) and remote‑controller (PoE PD, Power over Ethernet Powered Device) to be connected using an Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remote-controller uses a Commandmic™ with excellent operability and a high contrast black LCD.
Flexible Installation Using an Ethernet Cable Between the Main Unit and Commandmic™
Loud and Intelligible Audio Even in Noisy Environment
Input /Output Interface for External Devices with Optional D-SUB Accessory Cable
Dual Mode Operation – IDAS™ Digital Mode and Analogue FM Mode
General Features
- 136–174 MHz
- 128 Channels / 8 Zones
- Two-piece configuration – Commandmic™ + black box main unit
- Commandmic™ is powered from the main unit through an Ethernet cable*
* Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied). - High contrast, wide viewing angle, black background display on the Commandmic™
- 1700 mW (typical) audio output from the Commandmic™
- MIL-STD-810 G shock, vibration, temperature and more
- IPX4 water splash resistance for the Commandmic™
- DTMF autodial memories capability
Operating Mode
- NXDN™ conventional
- NXDN™ Type-D single-site trunking
- NXDN™ simulcast
- NXDN™ multi-site conventional over IP network
- Analogue mode
Digital Functions (Voice and Data)
- PTT ID and ANI
- Over-the-Air Alias (OAA) displays the caller’s name without programming
- Individual, Group and All call
- Late entry for Group call
- Status call and Polling call
- Short data messages
- Call alert
- Radio check (RX only)
Analogue Functions
- CTCSS and DTCS tone
- 2-Tone and 5-Tone
- MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
- BIIS PTT ID transmission
Security and Safety
- Digital voice scrambler
- Emergency call and Lone worker
- Remote monitor (RX)
- Radio Kill, Stun and Revive (RX)
Scan Functions
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
Hardware Features
- Set an IP address for main unit and Commandmic™
- GPS receiver connection with optional ACC cable

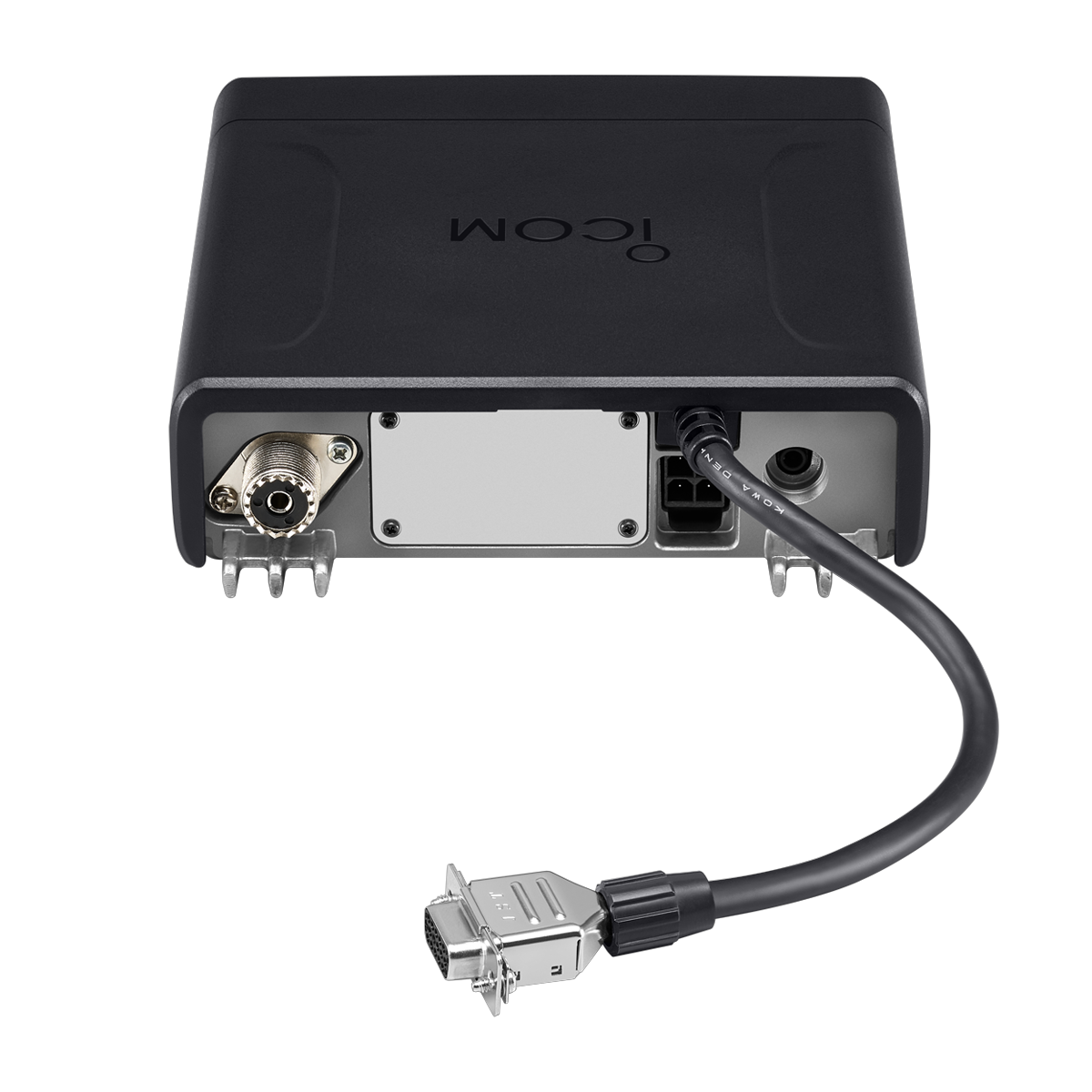

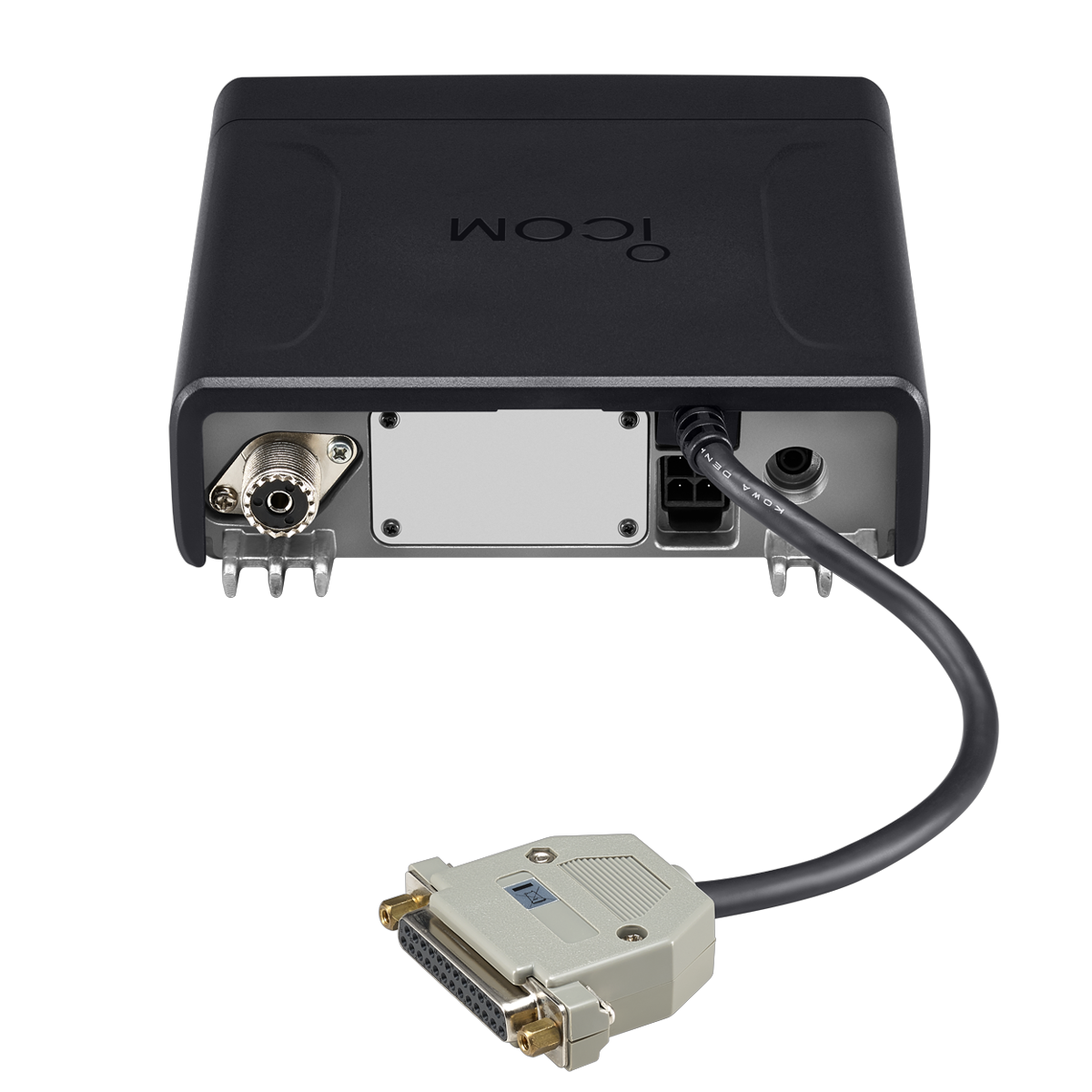

- Optional D-SUB connector, OPC-2078/OPC-1939, for external PTT, channel, horn, ignition switch, and dimmer control, according to programming*
* No digital modulation “IN” when using accessory cables.
