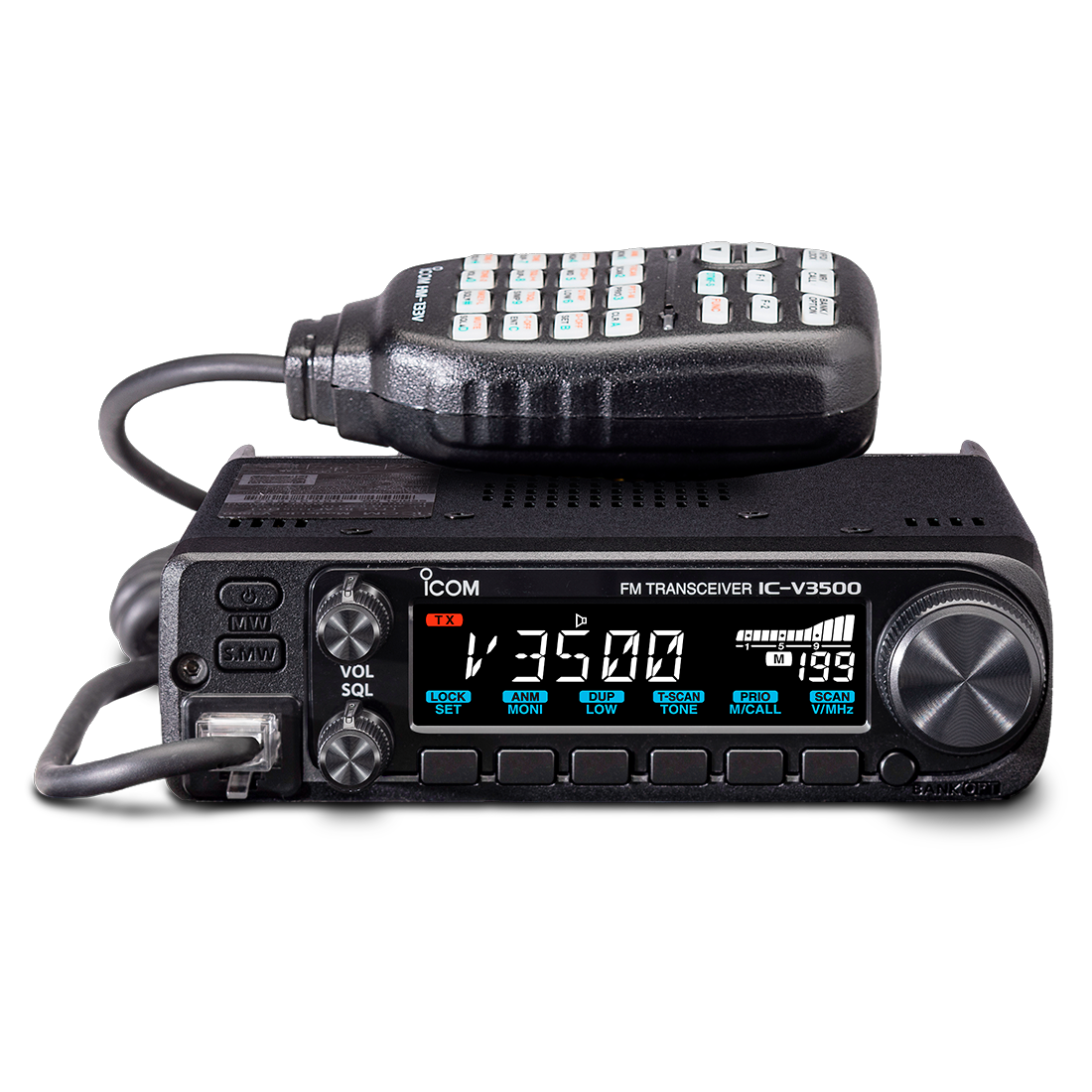

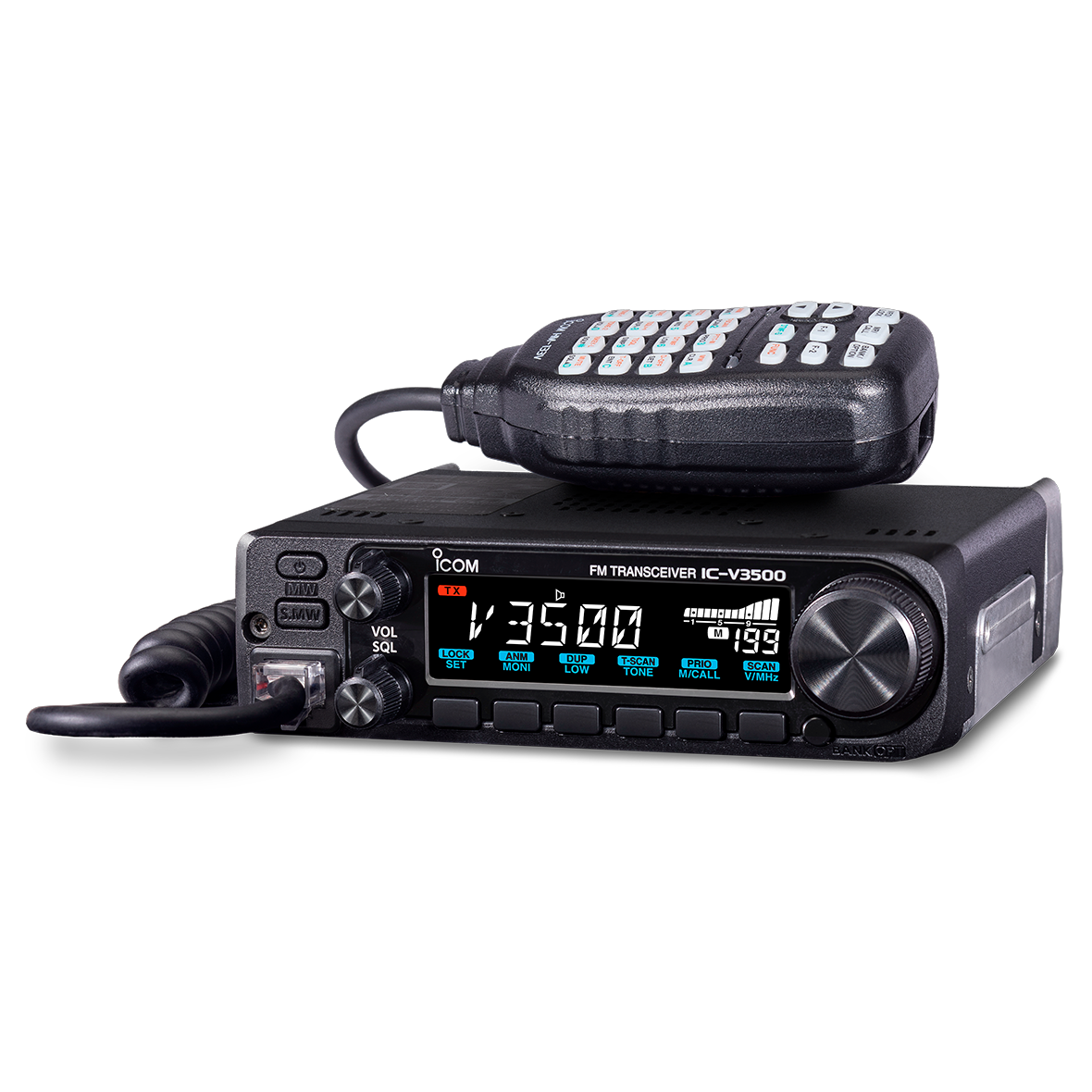

ICOM V3500B Black Edition
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Radio Includes:
- HM-133V DTMF Keypad Microphone
- 10' DC Power Cable
- Mounting Bracket
- Microphone Hanger
- Necessary Hardware
- 1 Year Manufacturers Warranty
Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.
65W of Power for Long Range Communications
The IC-V3500 Black Edition is a rugged 2 m (144 MHz) FM mobile transceiver designed for amateur radio operators who demand reliable performance and straightforward operation. Combining powerful 65 W RF output with clear 4.5 W audio, this compact radio delivers professional-grade communication in a user-friendly package. The new black LCD provides higher contrast and readability.
So Many Features
- Stable 65W of output
- Built-in CTCSS and DTCS encoder/decoder for repeater access
- Up to 16 DTMF autodial memory channels
- 207 Alpha-Numeric memory channels
- Tough construction to pass the MIL-STD 810 G specifications
- Weather channel receive and weather alert function
- Free download PC programming software, CS-V3500
- Priority watch function
- Wide/narrow channel setting
- Power supply voltage display
- Program most functions through the remote microphone
High-Visible Black Inverted Display for Operational Ease
The IC-V3500 Black Edition brings enhanced visibility with its black inverted LCD. The dark display background provides improved contrast for easier viewing. Whether you're operating during the day or at night, the Black Edition's display ensures you can clearly read frequency, channel information, and settings. The bottom of the display indicates the available functions of the front panel buttons directly below the display.
Loud Audio
Off-road tires, roof racks, and engines can contribute to a vehicle’s cabin noise. Cut through the noise with the built-in 4.5W speaker for loud and clear audio. Both the frequency response and opening slit have been improved from similar models. Additionally, set up presets to raise, lower, or mute the radio for those who like precise audio levels.
Safety Function
Use the emergency call function to send beeps and hot microphone audio to others. While the emergency call function is active, the speaker will amplify messages to notify others within earshot.
Instant Volume Control and Mute Functions
Instant Volume Control and Mute Functions Temporarily boost the volume to a preset level with one simple operation. The function can also serve as a one-touch mute by presetting the volume to zero.
