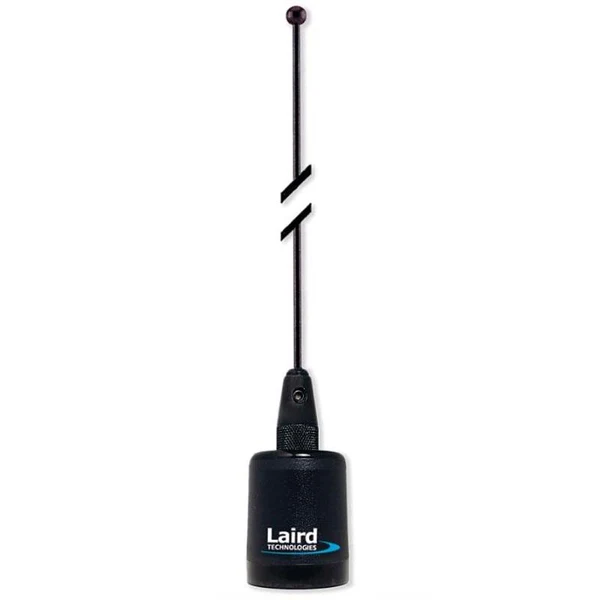

Laird TE Connectivity BB1442N
MPN BB1442NSKU 751Product type Mobile Antenna
Regular price
$6995
Unit price
Documents
Key Specifications
- Frequency Range
- 144-148 MHz, 148-156 MHz, 156-164 MHz, 164-174 MHz
- Antenna Design
- 1/2 Wave
- Mount Method
- NMO
- Ground Plane
- Not Required
Product details
Manufacturer
Larsen
Product Description
144-174 MHz 2.5dB 1/2 No Ground Plane Required
Frequency (MHz)
144-174 (Tunable)
Product Narrative
Base loaded 1/2 wave no ground plane required antenna. High temperature ABS housing, triple plated brass fittings, machined Delrin coil, gold plated contact and quick rod disconnect.
Usable Bandwidth
5 MHz
Gain (dB)
2.5
Maximum Power (Watts)
200
Whip Length (In.)
55"
Whip Material
17-7PH tapered stainless steel
Mount Type
NMO
Color
Black Base/Black Whip
Warranty
5 Year
