MPN: CW1503S
BRAND: Laird TE Connectivity
PRODUCT TYPE: Mobile Antenna
SKU: 3201

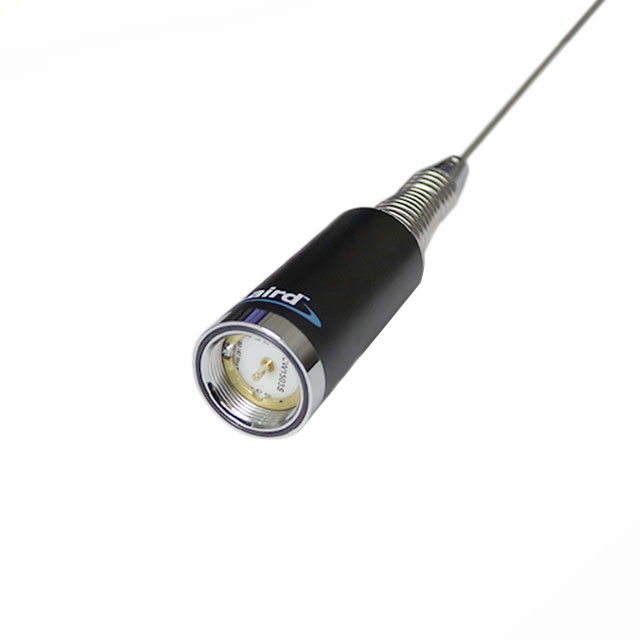

Laird TE Connectivity CW1503S

VHF 150-162 MHz Wide Band Mobile Antenna - 3 db Gain - Length 48.5 in - Spring Base

$139⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

TE CONNECTIVITY CW1503 DATASHEET SPECS

Description

Manufacturer

TE Connectivity

Model #

CW1503S

Product Description

150-162 MHz Wide Band Antenna with Spring Base. Base loaded antenna with spring for use in rugged environments. Chrome plated brass base and fittings

Frequency (MHz)

150-162

Usable Bandwidth

12 MHz

Gain (dB)

3

Maximum Power (Watts)

200

Whip Length (In.)

48.5 in

Whip Material

17-7ph tapered stainless steel

Mount Type

NMO

Warranty

5 Year
