Laird TE Connectivity MABT8U25
MPN MABT8U25SKU 14681Product type Antenna Mount
Regular price
$3695
Unit price
Documents
Key Specifications
- Mount Method
- Thick Surface
- Mount Type
- NMO
- Cable Length
- 25
- Cable
- RG58
Product details
Manufacturer
TE Connectivity
Description

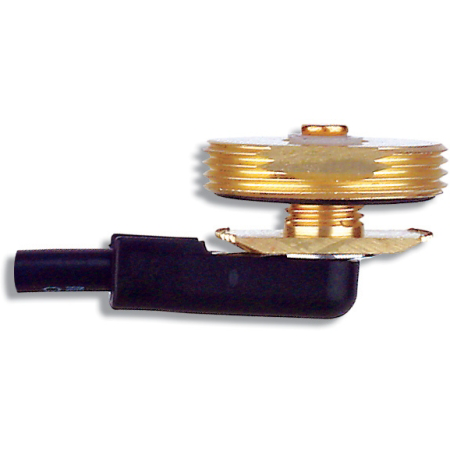

The Laird MABT8U25 vehicle roof mount antenna installation hardware kit is a special application NMO mount for Motorola-style mobile antennas, 0 – 1000 MHz in thick surfaces. This brass permanent mount is for a 3/8 or 3/4 in hole in mounting surfaces 3/16 – 1/4 an in thick.
The Laird Technologies mobile antenna mount includes 25 ft of RG-58/U cable. Connector needs to be ordered separately. Thread size is 1 1/8 in-18.
The Laird Technologies mobile antenna mount includes 25 ft of RG-58/U cable. Connector needs to be ordered separately. Thread size is 1 1/8 in-18.
Cable Length
25 ft
Thread Size
1-1/8-18
Cable Type
RG-58/U
RF Connector
Choose Connector Installed
Specific Frequency
0-1000 MHz
Warranty
5 Year
