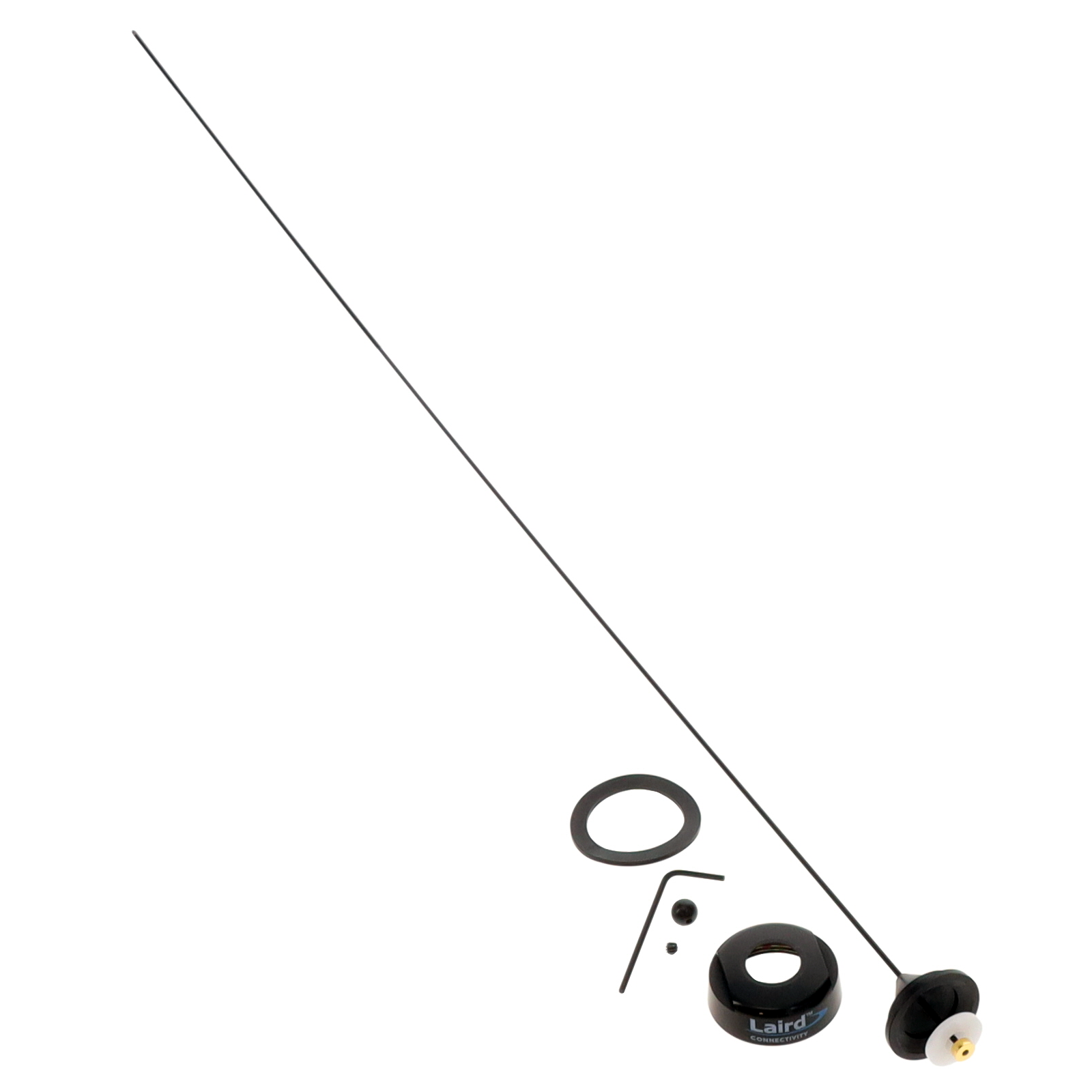

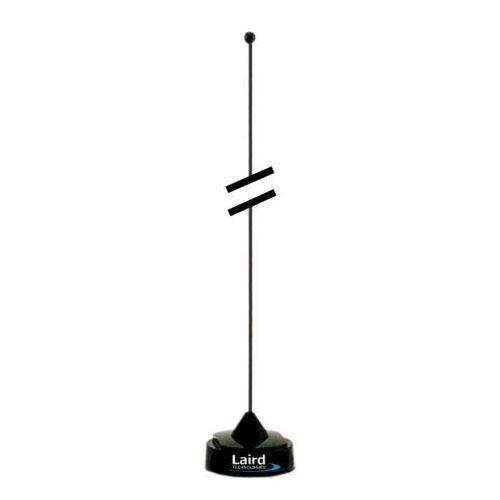

Laird TE Connectivity QWFTB120
MPN QWFTB120SKU 762Product type Mobile Antenna
Regular price
$2295
Unit price
Documents
Key Specifications
- Frequency Range
- 118-137 MHz, 137-144 MHz, 144-148 MHz, 148-156 MHz, 156-164 MHz, 164-174 MHz, 174-216 MHz, 216-225 MHz, 225-380 MHz, 380-406 MHz, 406-420 MHz, 420-430 MHz, 430-440 MHz, 440-450 MHz, 450-460 MHz, 460-470 MHz, 470-490 MHz, 490-512 MHz, 512-617 MHz, 617-698 MHz, 698-758 MHz, 758-806 MHz, 806-824 MHz, 824-869 MHz, 869-896 MHz, 896-902 MHz, 902-928 MHz, 928-960 MHz
- Antenna Design
- Quarter Wave
- Mount Method
- NMO
- Gain
- Low Gain (0-3 dBi)
Product details
Manufacturer
TE Connectivity
Product Description
118-970 Black field tunable 1/4 Wave
Frequency (MHz)
118-970
Product Narrative
Field tunable quarterwave antenna that Includes a "brass button" contact design that provides for a better match and more contact surface coverage
Usable Bandwidth
6 MHz VHF (20 MHz UHF 406-512) 50 MHz 512 +
Gain (dB)
Unity
Maximum Power (Watts)
200
Whip Length (In.)
24"
Whip Material
Type 302 stainless steel
Color
Black
Warranty
5 Year
