Laird TE Connectivity S8960B

MPN S8960BSKU 14659Product type Base Antenna

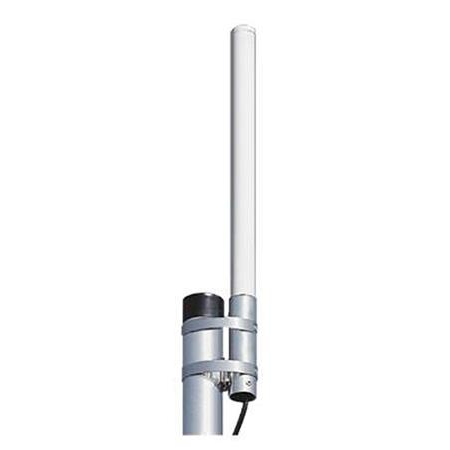

896-960 MHz fiberglass omni antenna with unity gain, 150W rating and N female connector

Regular price $27995

Key Specifications

Antenna Design
Omnidirectional
Frequency
896-960 MHz
Bands
Single Band
Gain
Low Gain (0-3 dBi)
Connector Type
N Female

Product details

Manufacturer
Laird TE Connectivity
Model #
S8960B
Product Description

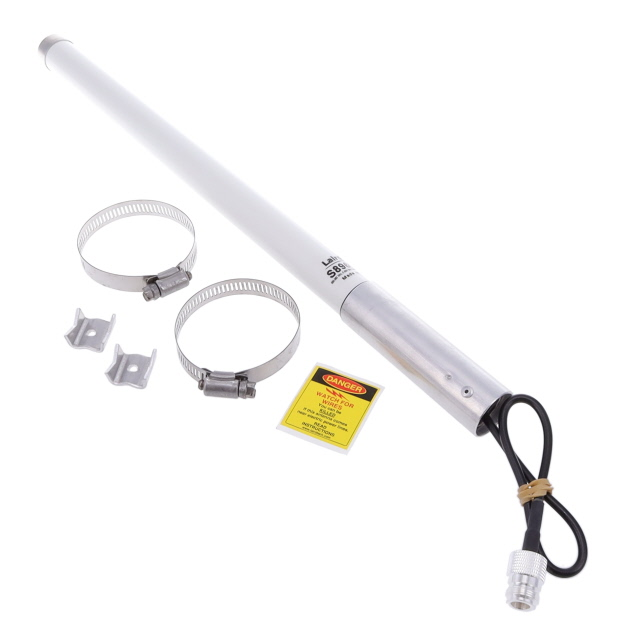

S8960B is an omnidirectional antenna operating in the 896 – 960 MHz frequency range. This fiberglass Omni antenna features unity gain and maximum power input of 150 W. The S8960B includes a 17 in jumper made of Ultralink cable and terminated with an N Female connector. Antenna mounting hardware is included.
Item Weight
0.56 lb
Item Height
17.5 in
Gain dBd
0 dBd
Gain dBi (dBi)
2.14 dBi
Jumper Included
Yes
RF Connectors
N Female
Polarization
Vertical
Specific Frequency
896-960 MHz
Vertical Beamwidth (Deg)
75
Maximum VSWR
1.5:1
Maximum Rated Wind Velocity
125 mile/h
Bandwidth
64 MHz
Connector Placement
Pigtail
Lightning Protection
DC Ground
Electrical Downtilt
Fixed
Fixed Electrical Downtilt
0 deg

Frequency Band
Cellular
