Laird TE Connectivity S8963B
Regular price
$47995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Laird TE Connectivity
Model #
S8963B
Product Description

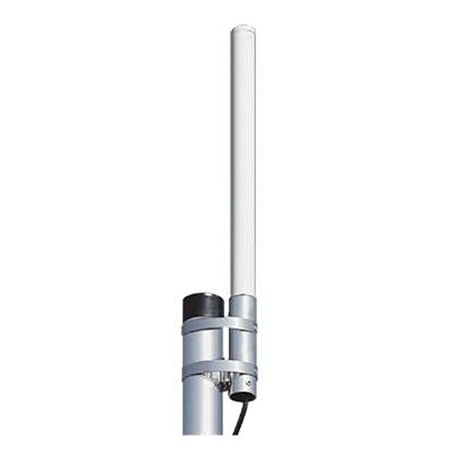

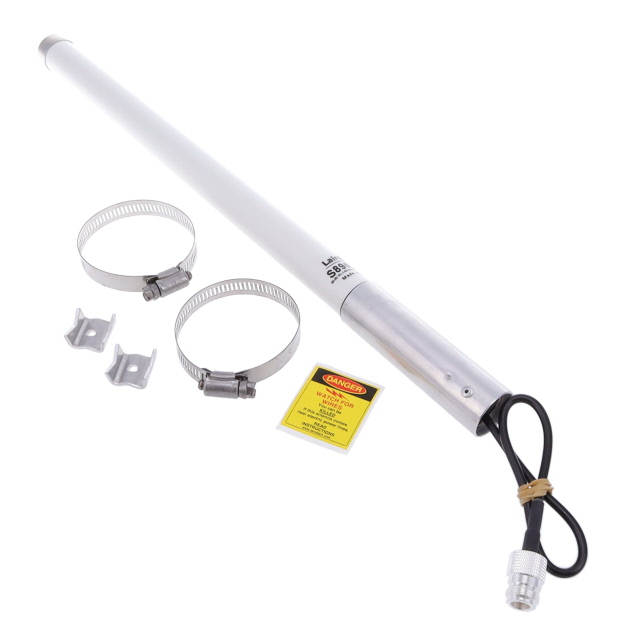

S8963B is an omnidirectional antenna operating in the 896 – 960 MHz frequency range. This fiberglass omni antenna features 3 dBd gain and maximum power input of 150 W. The S8963B Omni antenna includes a 23 in jumper made of Ultralink cable and terminated with an N Female connector. Mounting hardware is included.
Item Weight
1.1 lb
Item Height
30.75 in
Item Width
2 in
Item Length
44.75 in
Gain dBd
3 dBd
Gain dBi (dBi)
5.15 dBi
Jumper Included
Yes
RF Connectors
N Female
Polarization
Vertical
Specific Frequency
896-960 MHz
Vertical Beamwidth (Deg)
45
Maximum VSWR
1.5:1
Maximum Rated Wind Velocity
125 mile/h
Bandwidth
64 MHz
Connector Placement
Pigtail
Lightning Protection
DC Ground
Electrical Downtilt
Fixed
Fixed Electrical Downtilt
0 deg
Frequency Band
Cellular
