Description
Description
Manufacturer
TE Connectivity, Inc.
Product Description

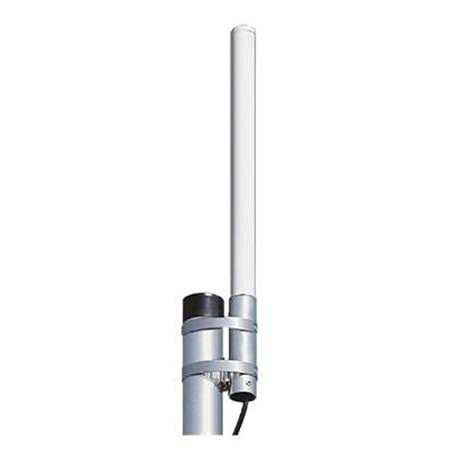

896-960 MHz 4dB Fiberglass Omni Antenna
Product Narrative

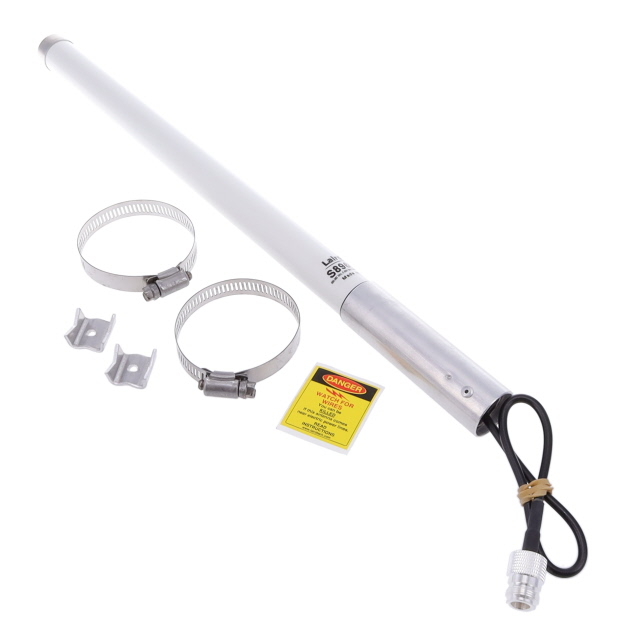

LAIRD's S8964B omnidirectional antenna operates in the 896 – 960 MHz frequency range. This fiberglass omni antenna features 4 dBd gain and maximum power input of 150 W. The S8964B omni antenna includes a 23 in jumper made of Ultralink cable and terminated with an N Female connector. Mounting hardware is included.
Type of Jumper Included
23" Pigtail w/ N Female
RF Connectors
N Female
Item Weight
1.56 lb
Item Height
42 in
Gain dBi
6.15 dBi
Specific Frequency
896-960 MHz
Polarization
Vertical
Connector Placement
Pigtail
Type of Hardware Included
Clamp set
Lightning Protection
DC Ground
Maximum Power
150 W
Jumper Included
Yes
Gain dBd
4 dBd
Maximum VSWR
1.5:1
Item Length
2 in
Item Width
2 in
Electrical Downtilt
Fixed
Maximum Rated Wind Velocity
125 mile/h
Warranty
5 Year
