Microlab/FXR BK-747T

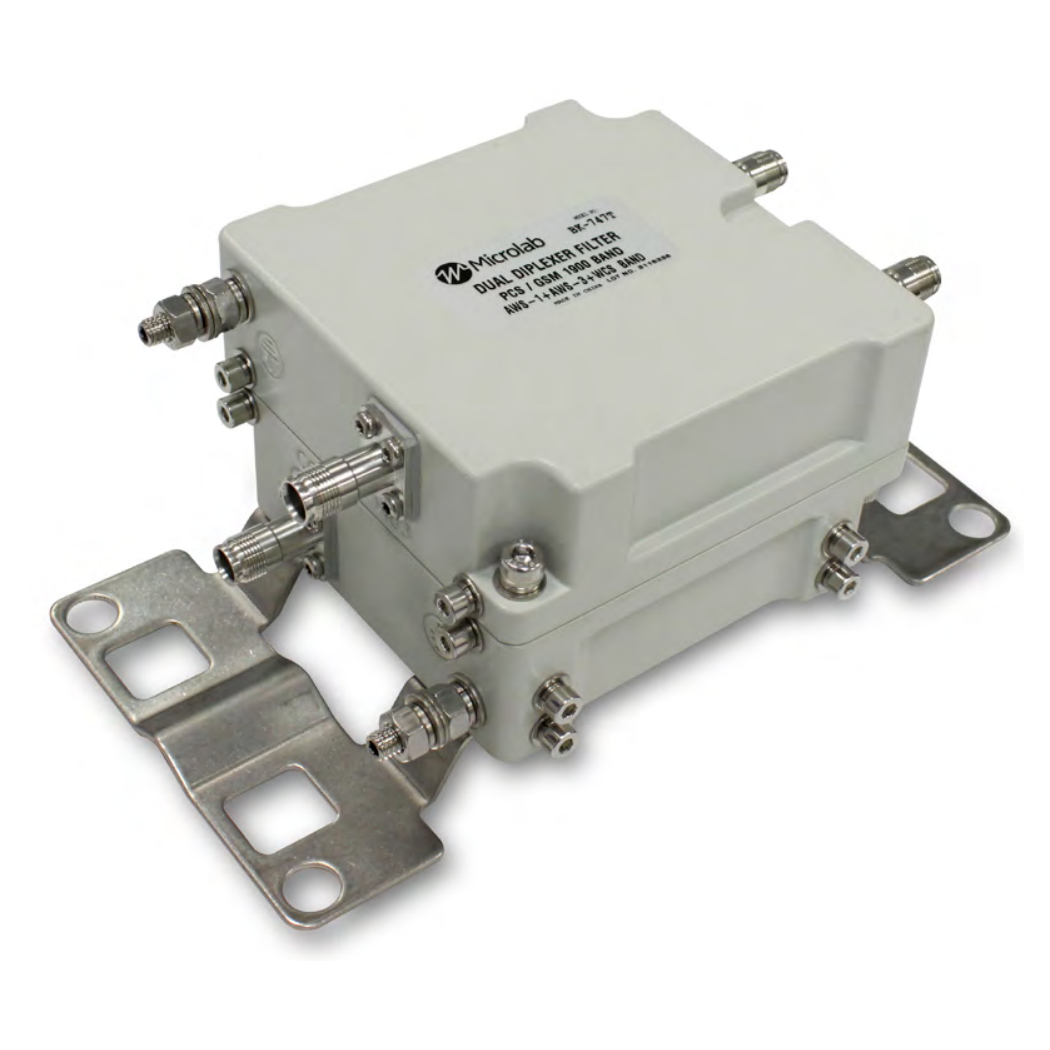

Microlab BK-747 is a dual Diplexer which allows com- bining and separation of the signals in the PCS band 1850 - 1995 MHz with the AWS-WCS bands 1695 - 1780 MHz and 2110 - 2360 MHz for 2x2 MIMO applications. To minimize band inter-reaction, the inputs are well isolated and have minimal insertion loss over the respective frequency bands. The Diplexer has been designed using passive, propri- etary techniques which minimizes cost and size. Addition- ally, it ensures minimal loss and very high reliability at input power up to 50W. Dual diplexer mounting configurations for 4x4 MIMO applications are available by adding “W“(Stack)or “X“(side-side) to the part number.
