Description
Description
D41 series of 2, 3 & 4 way Reactive style Power Dividers covers the Public Safety spectrum of 138 - 960 MHz using a unique design that keeps the size of the unit managable for DAS installations.pbr/p One part number handles VHF, UHF, FirstNet, 700 MHz, 800 MHz and 900 MHz Critical Communications.
Manufacturer
Microlab
Product Description

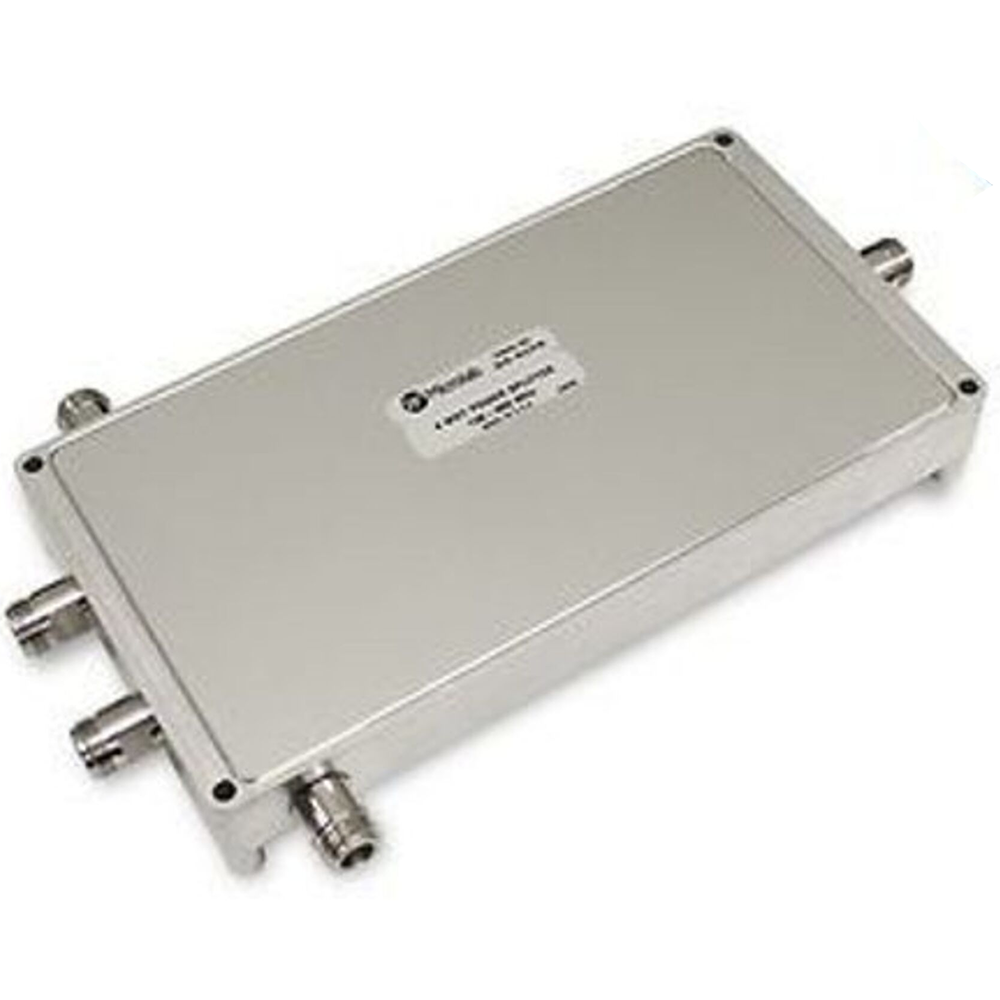

Four-Way Power Splitter
Frequency Range
138-960 MHz
Maximum Power
100 Watts
RF Connectors
N Female
Warranty
1 Year
Frequency: 138 – 960 MHz
Number of Ways: 4
Split Loss: 3 dB
Power: 100W
VSWR: <1.30:1 @138-174 MHz
<1.20:1 @174-960 MHz
PIM: -158 dBc (2 tones at +43 dBm)
-161 dBc typ
Connectors: N-Type
Ingress Protection: IP64
Weight: 1.75 lbs (0.8 kg)
Number of Ways: 4
Split Loss: 3 dB
Power: 100W
VSWR: <1.30:1 @138-174 MHz
<1.20:1 @174-960 MHz
PIM: -158 dBc (2 tones at +43 dBm)
-161 dBc typ
Connectors: N-Type
Ingress Protection: IP64
Weight: 1.75 lbs (0.8 kg)
