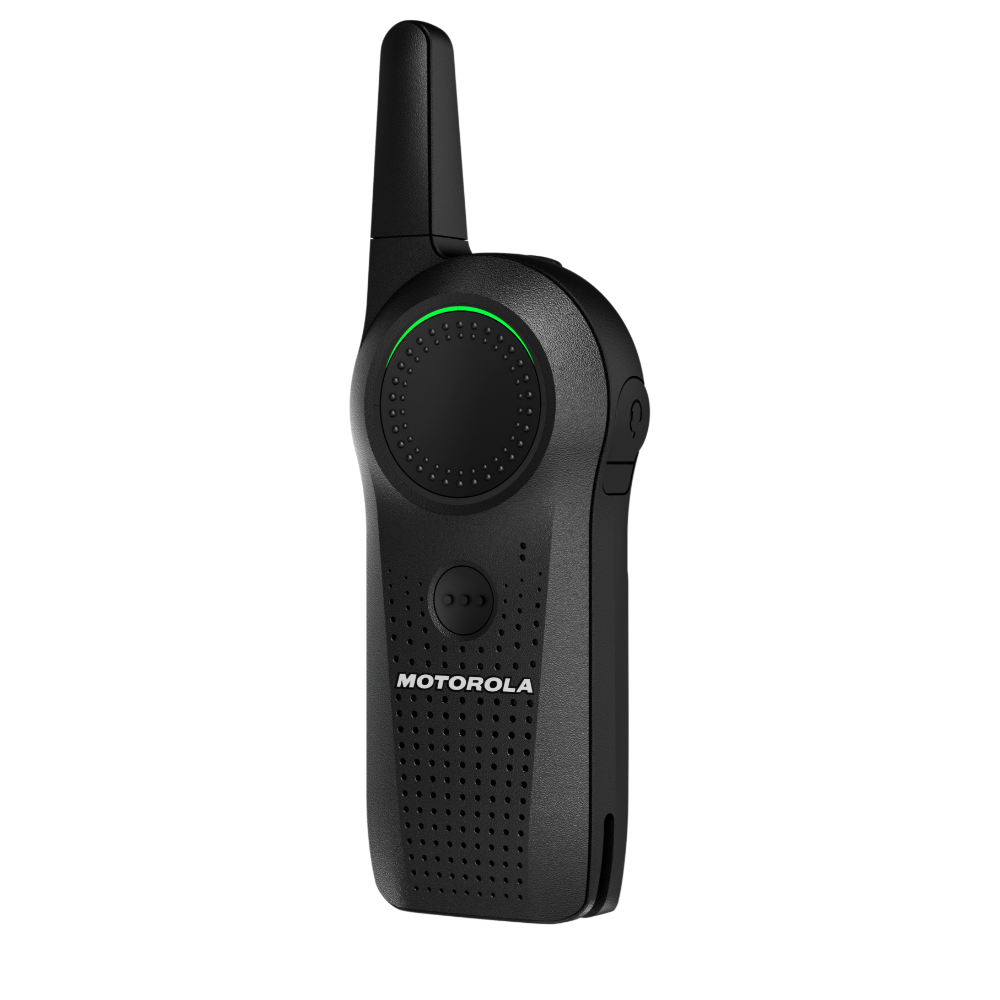

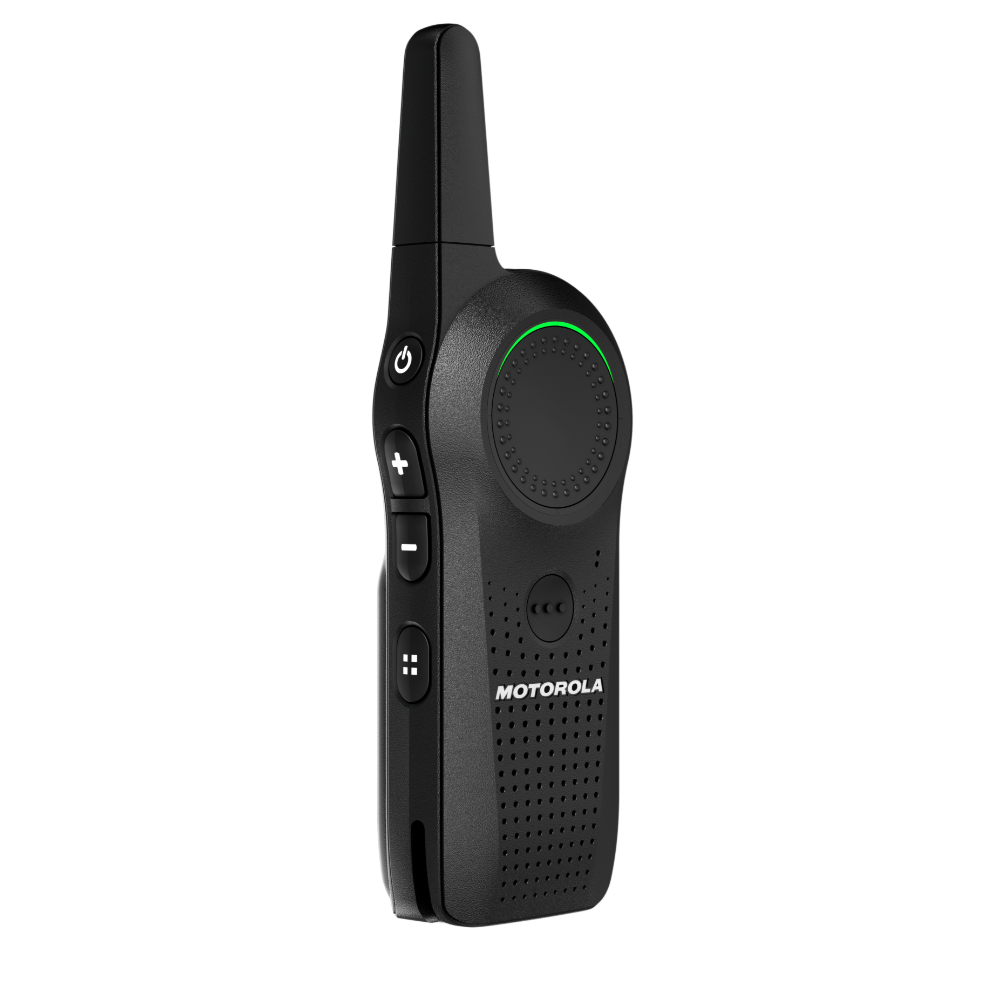

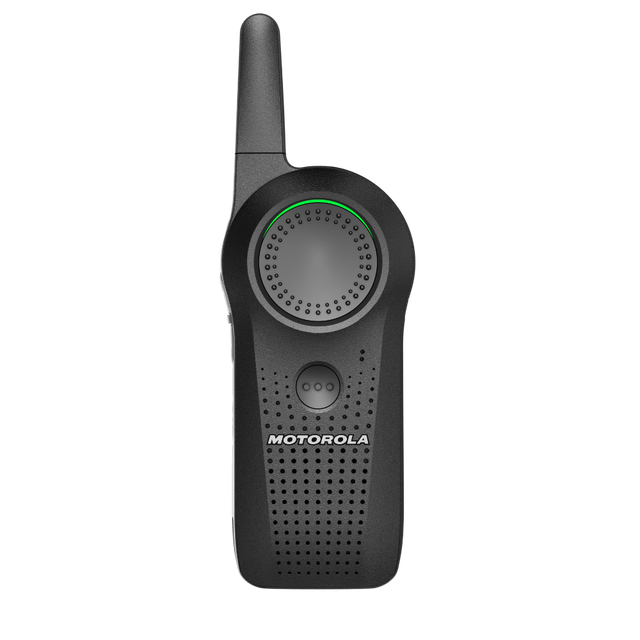

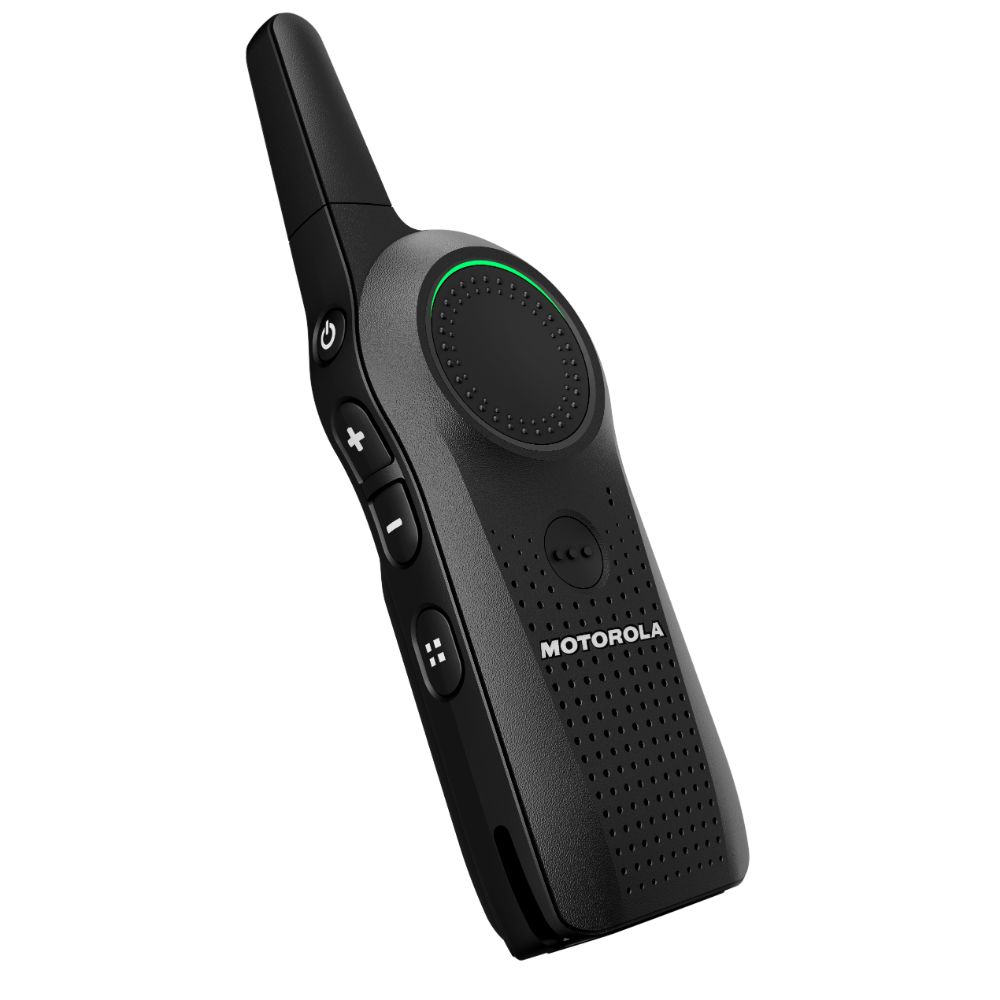

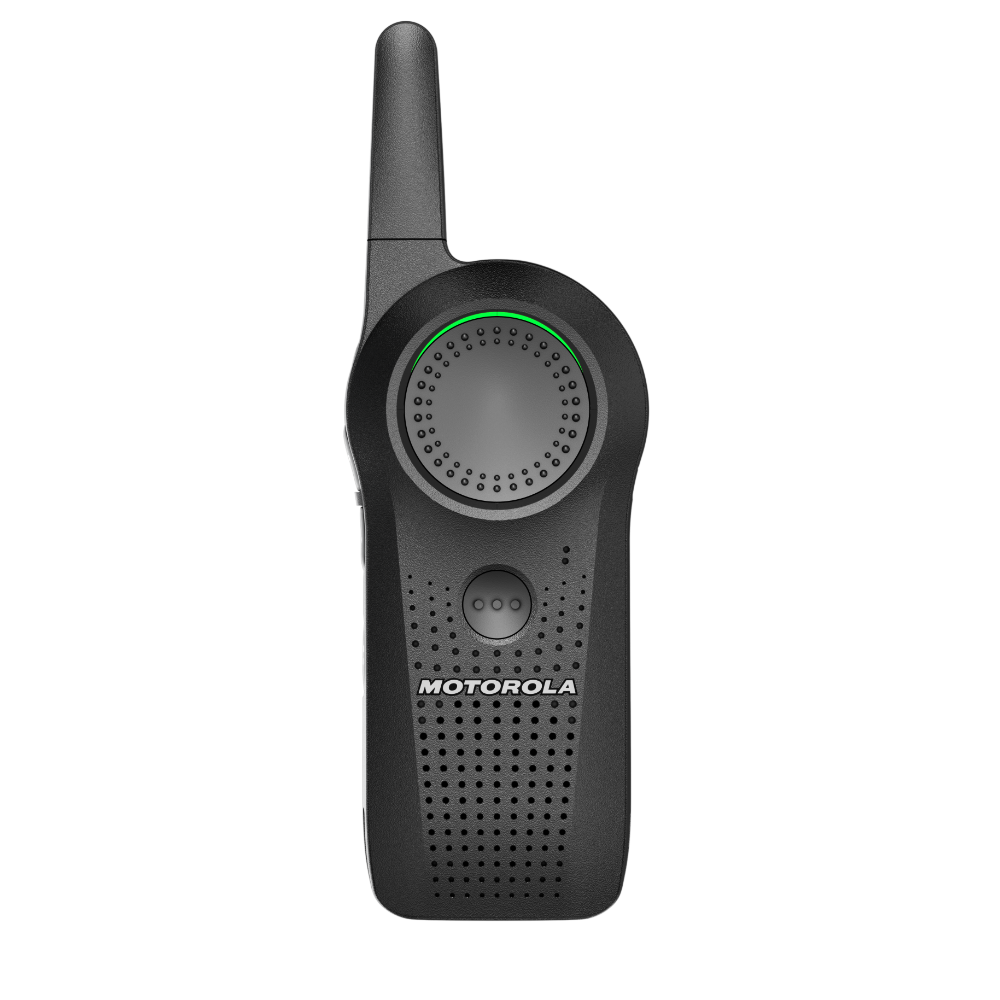

CURVE 900 MHZ 1 WATT 10 CHANNELS PORTABLE RADIO
The Curve radio combines simple, intuitive radio operation with advanced, Wi-Fi-enabled features that help your team stay in touch while remaining productive and focused on their work. Built for business, designed to last.
What's in the box
- Curve Radio
- Li-ion battery

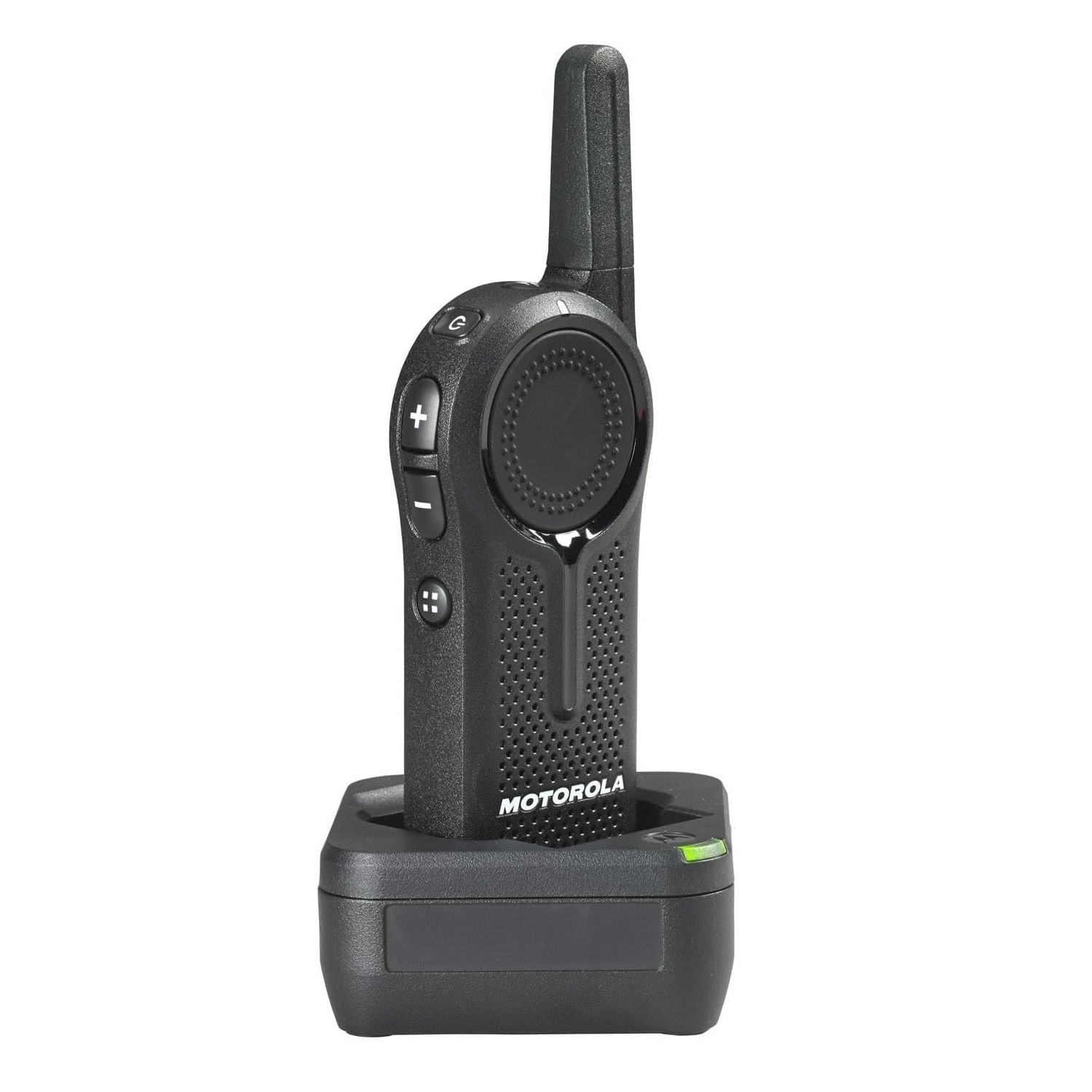

- Single-unit charger
- Power adapter
- Holster
- Operating Manual
- Safety Manual
General Specifications
Channels
10
Frequency
902-928 MHz
Range
Up to 300,000 Sq. Feet or 20 Floors*
License Free Band
Operates FCC license-free in 900 MHz ISM Band
DIMENSIONS
WITH BT90 BATTERY WITH BT110 BATTERY
HxWxD with battery and door
4.55” x 1.87” x 0.95” 4.55” x 1.87” X 1.02”
115.5 x 47.5 x 24.0mm 115.5 x 47.5x 26.0mm
Weight with battery and door
5.11 oz/145 g 5.45 oz/155 g
POWER
WITH BT90 BATTERY WITH BT110 BATTERY
Battery Capacity
1800 mAh 2500 mAh
Charging Time
4 hours 5 hours 15 minutes
Battery Life*** (Wi-Fi off)
11.5 hours 16 hours
Battery Life*** (Wi-Fi on, Voice Assistant active)
10 hours 14.5 hours
RECEIVER
Preamble Sensitivity
-125dBm
Frequency Stability
± 1PPM
RX Spur Emissions- Radiated
<43.5dBuV/m (3m)
Blocking Immunity: ±500 kHz to ±1 MHz
75dB
Blocking Immunity: ±1 MHz to ±15 MHz
80dB
Audio Distortion @ Rated
<5%
TRANSMITTER
RF Output
1W
Channel Spacing
50kHz
Frequency Stability (-30⁰C to 60⁰C)
± 1PPM
TX Spurious Emissions - radiated
<54dBuV/m (3m)
Audio Distortion
<3%
TX ACPR
-50dBc
FCC Modulation
8-level FSK 900MHz FHSS
ENVIRONMENTAL
Operating Temperature
-20⁰C to +60⁰C (Radio)
Storage Temperature
-40⁰C to +85⁰C (Radio)
Dust Intrusion
IEC 60529 IP5X
Warranty
2-Year Limited Radio Warranty
