Description
Description
Manufacturer
PCTEL
Model #
ASP931
Product Description

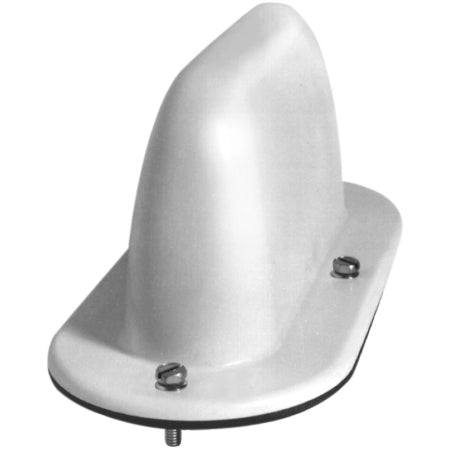

806-894 Low Profile Silhouette Antenna. Rugged low silhouette transit antenna. Enclosed in a high impact molded ASA radome. Includes 4 truss head slotted bolts (#10), 4 self-tapping sheet metal screws and 1 1/8" thick rubber pad. Direct N female termination. Ground plane is required.
Frequency (MHz)
806-894
Gain (dB)
Unity
Maximum Power
100 Watts
Whip Length(In.)
H 3.4" x L 8" W 3.5"
Whip Material
Brass Rod with ASA plastic radome
Mount Type
Surface Mount
Connector
N Female
Warranty
2 Years
