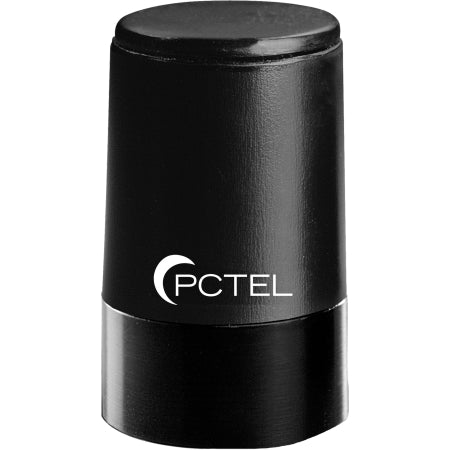

PCTEL Maxrad BMLPV800
MPN BMLPV800SKU 922Product type Mobile Antenna
Regular price
$4995
Unit price
Documents
Key Specifications
- Frequency Range
- 806-824 MHz, 824-869 MHz, 869-896 MHz, 896-902 MHz, 902-928 MHz, 928-960 MHz
- Antenna Design
- Stealth/Covert
- Gain
- Low Gain (0-3 dBi)
- Mount Method
- NMO
Product details
Manufacturer
PCTEL Maxrad
Model #
BMLPV800
Product Description
Low Profile Antenna. The MLPV800 series has 1 dB gain and superior pattern coverage for mobile and fixed applications using frequencies from 806 to 960. The design provides broadband performance with minimum loss and no tuning. Efficient radiator design with rugged solid brass construction. Ground plane is required.
Frequency (MHz)
806-960
Gain (dB)
1
Maximum Power
150 Watts
Whip Length
2.4 in H x 1.5 in diameter
Mount Type
NMO
Warranty
2 Years
