PCTEL Maxrad BMLPV800HD
MPN BMLPV800HDSKU 925Product type Mobile Antenna
Regular price
$5995
Unit price
Documents
Key Specifications
- Frequency Range
- 806-824 MHz, 824-869 MHz, 869-896 MHz, 896-902 MHz, 902-928 MHz, 928-960 MHz
- Antenna Design
- Stealth/Covert
- Gain
- Low Gain (0-3 dBi)
- Mount Method
- NMO
Product details
Manufacturer
PCTEL Maxrad
Model #
BMLPVDB800HD
Product Description

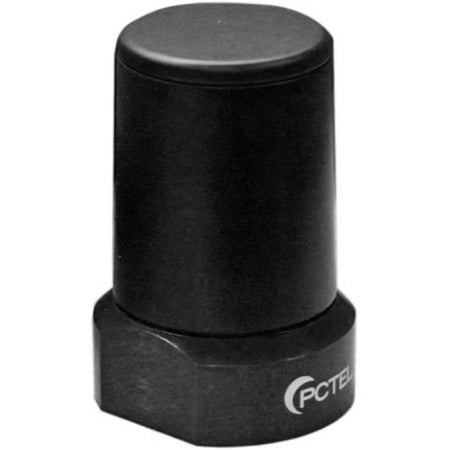

Low Profile Ant, Black. The BMLPV800HD has superior pattern coverage for mobile and fixed applications using frequencies from 806 to 960. The design provides broadband performance with minimum loss and no tuning. Heavy duty one-piece construction designed to withstand the toughest operating conditions. Ground plane is required.
Frequency (MHz)
806-960
Gain (dB)
1
Maximum Power
100 Watts
Whip Length
1.79 in H x 1.50 in OD
Mount Type
NMO
Warranty
2 Years
