PCTEL Maxrad MFB4500
Regular price
$12995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
PCTEL
Product Description

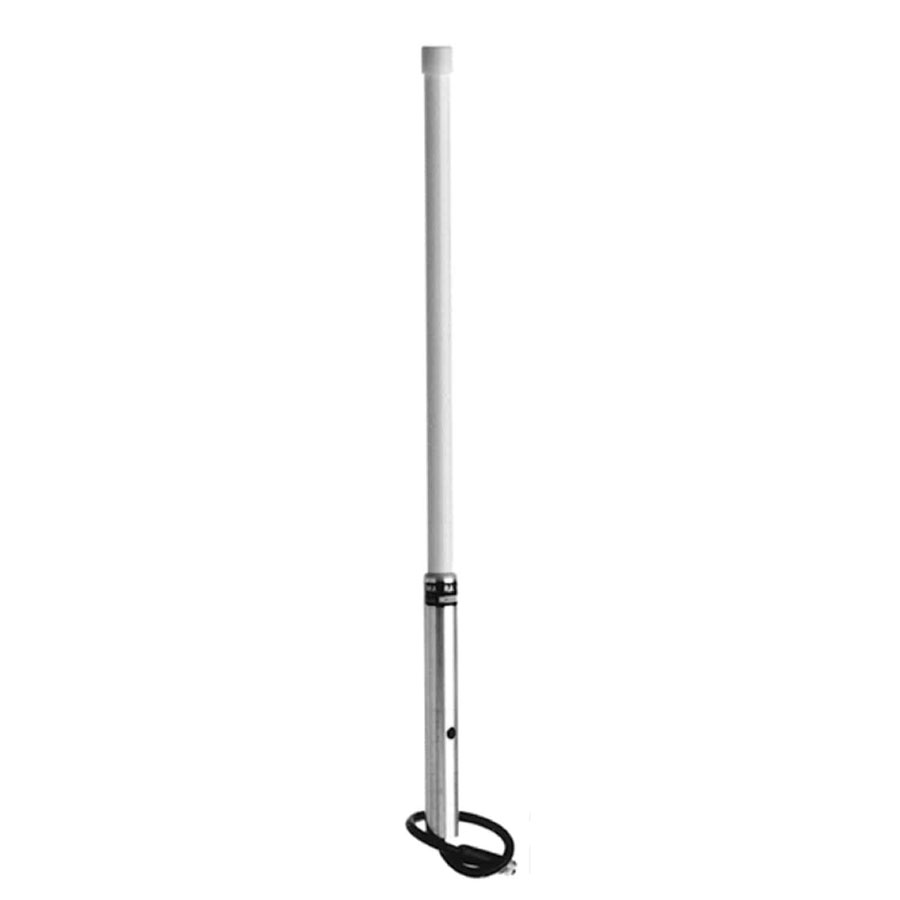

PCTEL's MFB4500 is a unity gain white fiberglass omnidirectional antenna operating in the 450 – 460 MHz frequency range. This UHF omni antenna has a power input of 250 W, is DC grounded, and terminated with an N Male connector at the end of a 16 in jumper.
The PCTEL MFB4500 is a non-cellular omnidirectional antenna. This economical UHF antenna is composed of base matched half-wave antennas that are enclosed in heavy-duty fiberglass radome with a sturdy aluminum mounting base.
The PCTEL MFB4500 is a non-cellular omnidirectional antenna. This economical UHF antenna is composed of base matched half-wave antennas that are enclosed in heavy-duty fiberglass radome with a sturdy aluminum mounting base.
Maximum Rated Wind Velocity
100 mile/h
Maximum VSWR
1.5:1
RF Connectors
N Male
Polarization
Vertical
Item Weight
1 lb
Item Height
30 in
Gain dBi
2.15 dBi
Maximum Power
250 W
