Description
Description
Manufacturer
PCTEL
Product Description

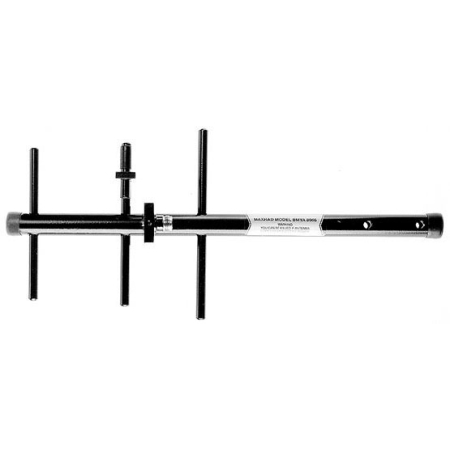

806-866 MHz 6dB 3 Element Yagi Antenna
Product Narrative
PCTEL's MYA8063 aluminum Yagi antenna operates in the 806 – 866 MHz frequency range. This 800 MHz Yagi antenna is unsurpassed in its price to performance ratio. The MYA8063 is a three-element, 8.1 dBi gain Yagi that features rugged 6060-T6 aluminum construction, stainless steel hardware, and through-boom mounting of all elements, providing years of reliable service. Elements are DC grounded to the boom. Maximum power input is 150 W and is terminated with an N Female connector. Mounting hardware is included fitting for pipes up to 1 5/8 in.
Specific Frequency
806-866 MHz
Lightning Protection
DC Ground
Item Weight
1.5 lb
Horizontal Beamwidth
72 deg
Item Length
17 in
Gain dBd
6 dBd
RF Connectors
N Female
Type of Hardware Included
MYK-1 Mount
Gain dBi
8.1 dBi
Connector Placement
Center
Polarization
Linear
Vertical Beamwidth
57 deg
Maximum Power
150 W
Maximum VSWR
1.5:1
Maximum Rated Wind Velocity
125 mile/h
