Product Description

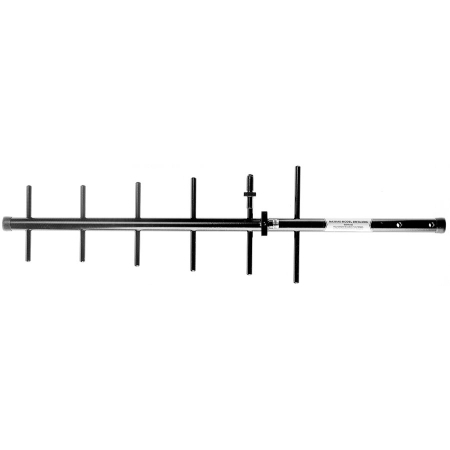

806-866 MHz 9dB 6 Element Yagi Antenna
Product Narrative
PCTEL's MYA8066 aluminum Yagi antenna operates in the 806 – 866 MHz frequency range. This 800 MHz Yagi antenna is unsurpassed in its price to performance ratio. The MYA8066 is a six-element, 11.1 dBi gain Yagi features rugged 6060-T6 aluminum construction, stainless steel hardware, and through-boom mounting of all elements providing years of reliable service. Elements are DC grounded to the boom. Maximum power input is 150 W and is terminated with an N Female connector. Mounting hardware is included.
Manufacturer
PCTEL
Type of Hardware Included
MYK-1 Mount
Maximum VSWR
1.5:1
Specific Frequency
806-866 MHz
Lightning Protection
DC Ground
Tuned Frequency (MHz)
N/A
Gain dBi
11.1 dBi
RF Connectors
N Female
Connector Placement
Center
Maximum Power
150 W
Item Length
28 in
Maximum Rated Wind Velocity
125 mile/h
Vertical Beamwidth
40 deg
Maximum VSWR
1.5:1
Item Weight
2 lb
Horizontal Beamwidth
42 deg
Gain dBi
11.15 dBi
