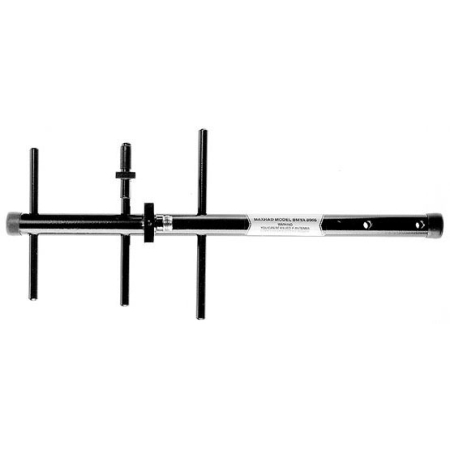

896-940 MHz 8.1dBi 3 Element Yagi Antenna
Narrative
PCTEL's MYA9153 aluminum Yagi antenna operates in the 896 – 940 MHz frequency range. This 900 MHz Yagi antenna is unsurpassed in it's price to performance ratio. The MYA9153 is a three-element, 8.1 dBi gain Yagi that features rugged 6060-T6 aluminum construction, stainless steel hardware, and through-boom mounting of all elements for years of reliable service. Elements are DC grounded to the boom. Maximum power input is 150 W and is terminated with an N Female connector. Mounting hardware is included.
Manufacturer
PCTEL
Horizontal Beamwidth
72 deg
Item Width
9 in
Item Length
24 in
Gain dBi
8.1 dBi
RF Connectors
N Female
Lightning Protection
DC Ground
Connector Placement
Center
Vertical Beamwidth
57 deg
Polarization
Linear
Maximum Power
150 W
Type of Hardware Included
MYK-1 Mount
Specific Frequency
896-940 MHz
Gain dBd
6 dBd
Maximum Rated Wind Velocity
125 mile/h
Item Weight
2 lb
Maximum VSWR
1.5:1
Item Height
3 in
