Description
Description
Product Description

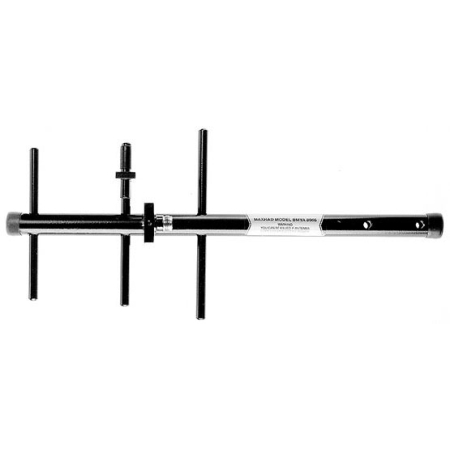

896-970 MHz 6dB 3 Element Yagi Antenna
Narrative
PCTEL's MYA9303 aluminum Yagi antenna operates in the 896 – 970 MHz frequency range. This 900 MHz Yagi antenna is unsurpassed in it's price to performance ratio. The MYA9303 is a three-element, 8.1 dBi gain Yagi that features rugged 6060-T6 aluminum construction, stainless steel hardware, and through-boom mounting of all elements for years of reliable service. Elements are DC grounded to the boom. Maximum power input is 150 W and is terminated with an N Female connector. Mounting hardware is included.
Manufacturer
PCTEL
Item Length
24 in
RF Connectors
N Female
Gain dBi
8.15 dBi
Lightning Protection
DC Ground
Connector Placement
Center
Vertical Beamwidth
57 deg
Polarization
Linear
Maximum Power
150 W
Specific Frequency
896-970 MHz
Type of Hardware Included
MYK-1 Mount
Gain dBd
6 dBd
Maximum Rated Wind Velocity
125 mile/h
Item Weight
1.5 lb
Maximum VSWR
1.5:1
Horizontal Beamwidth
72 deg
Item Height
3 in
Item Width
9 in
