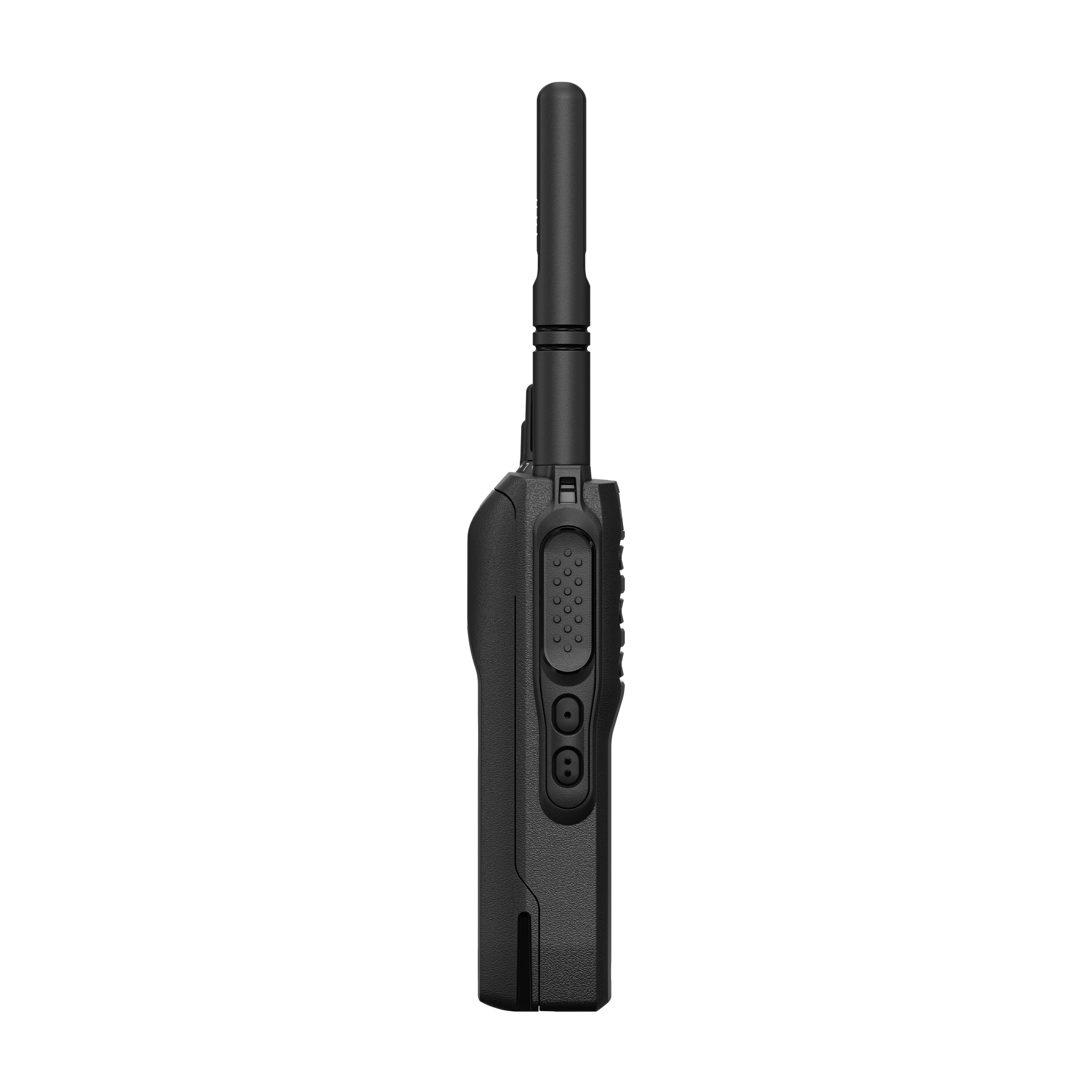

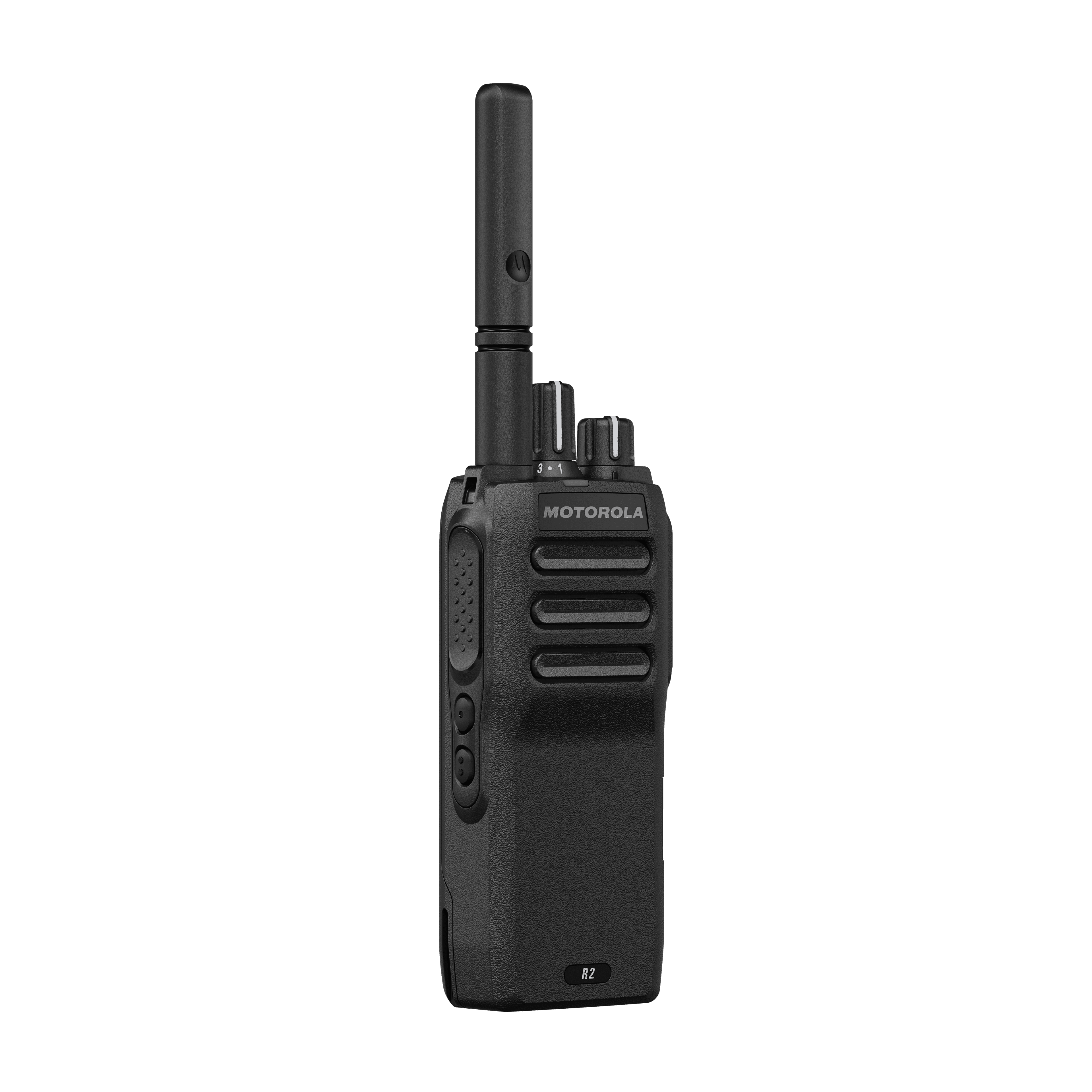

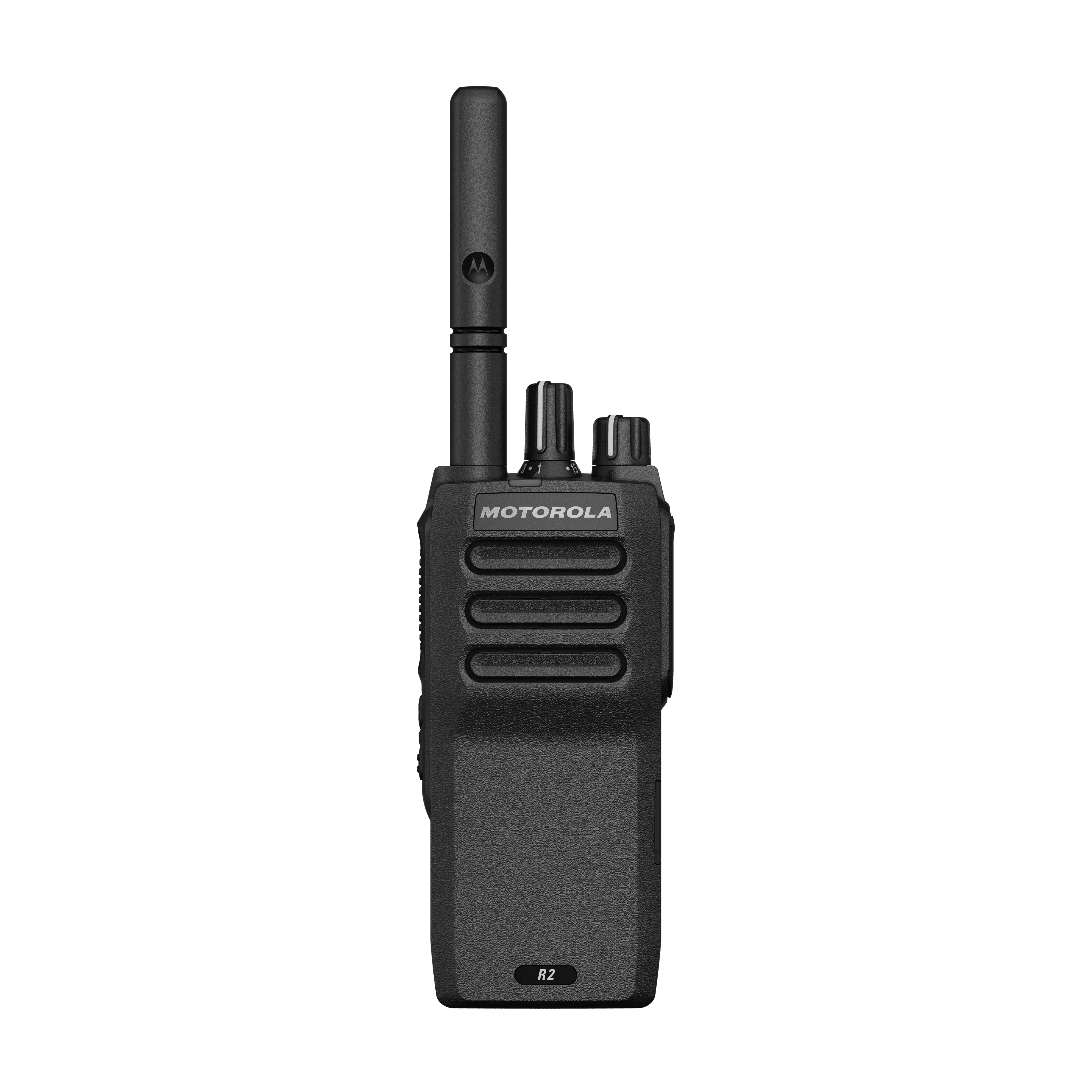

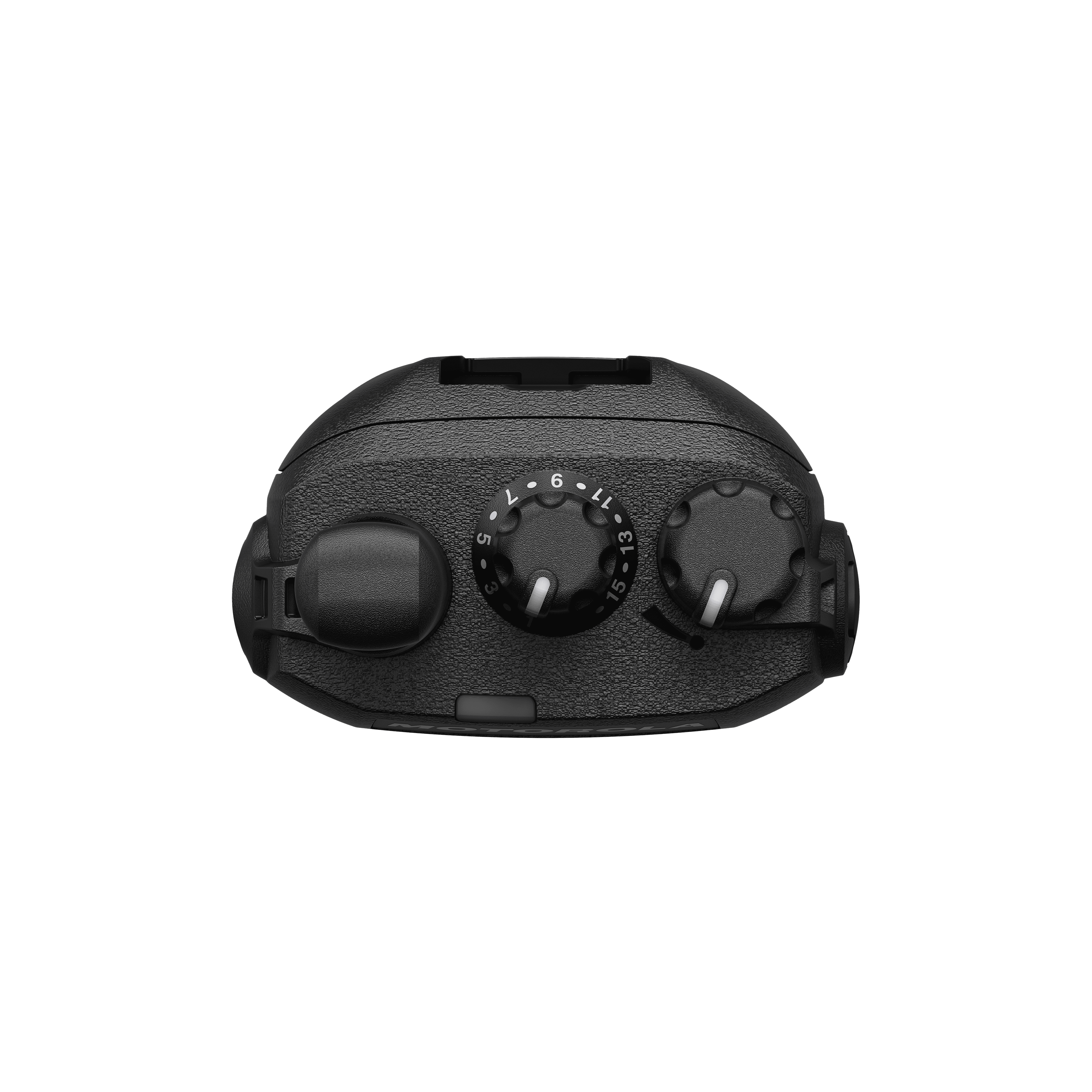

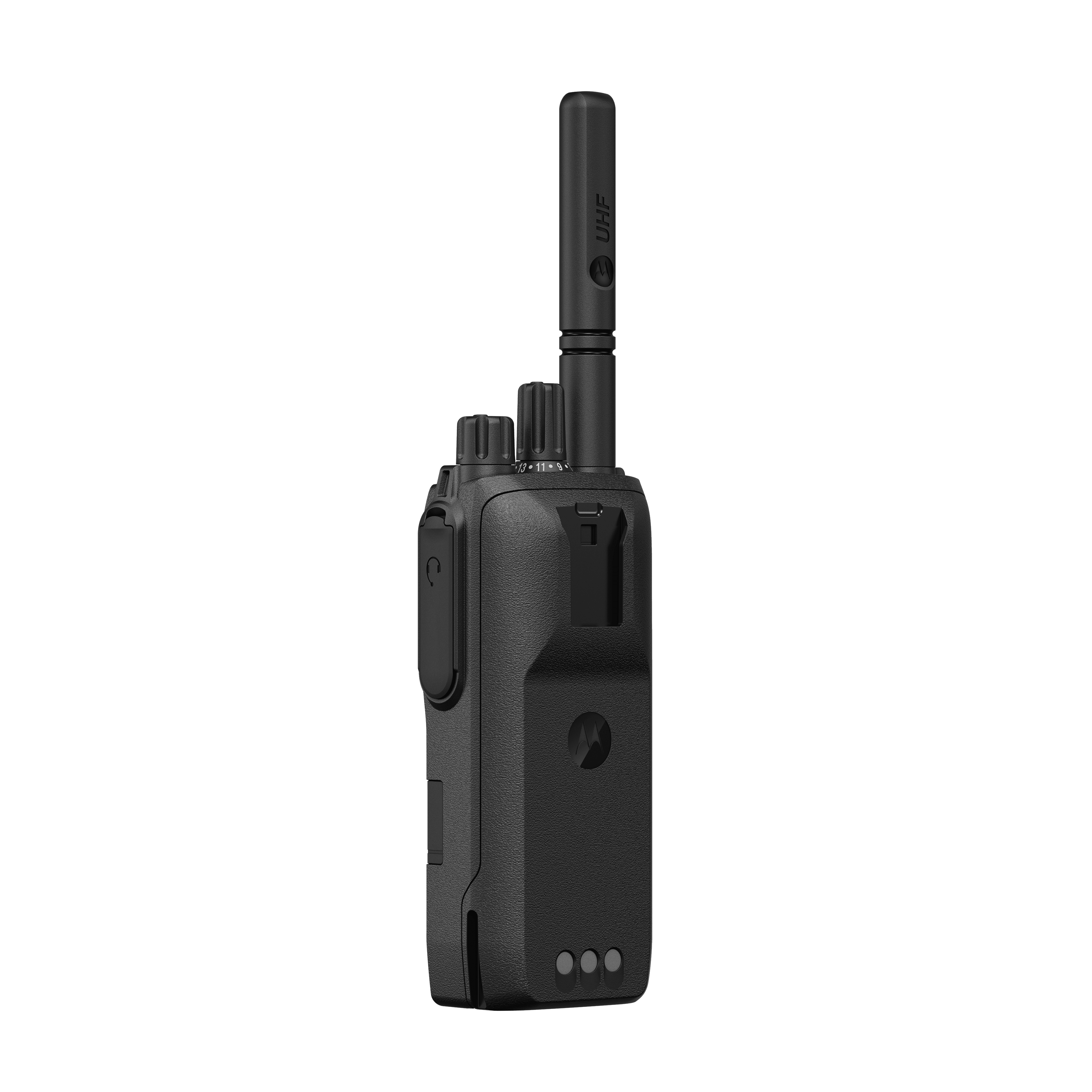

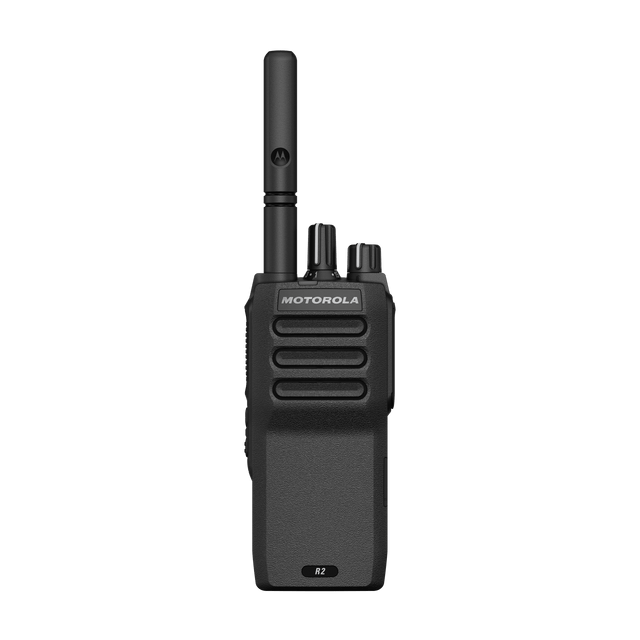

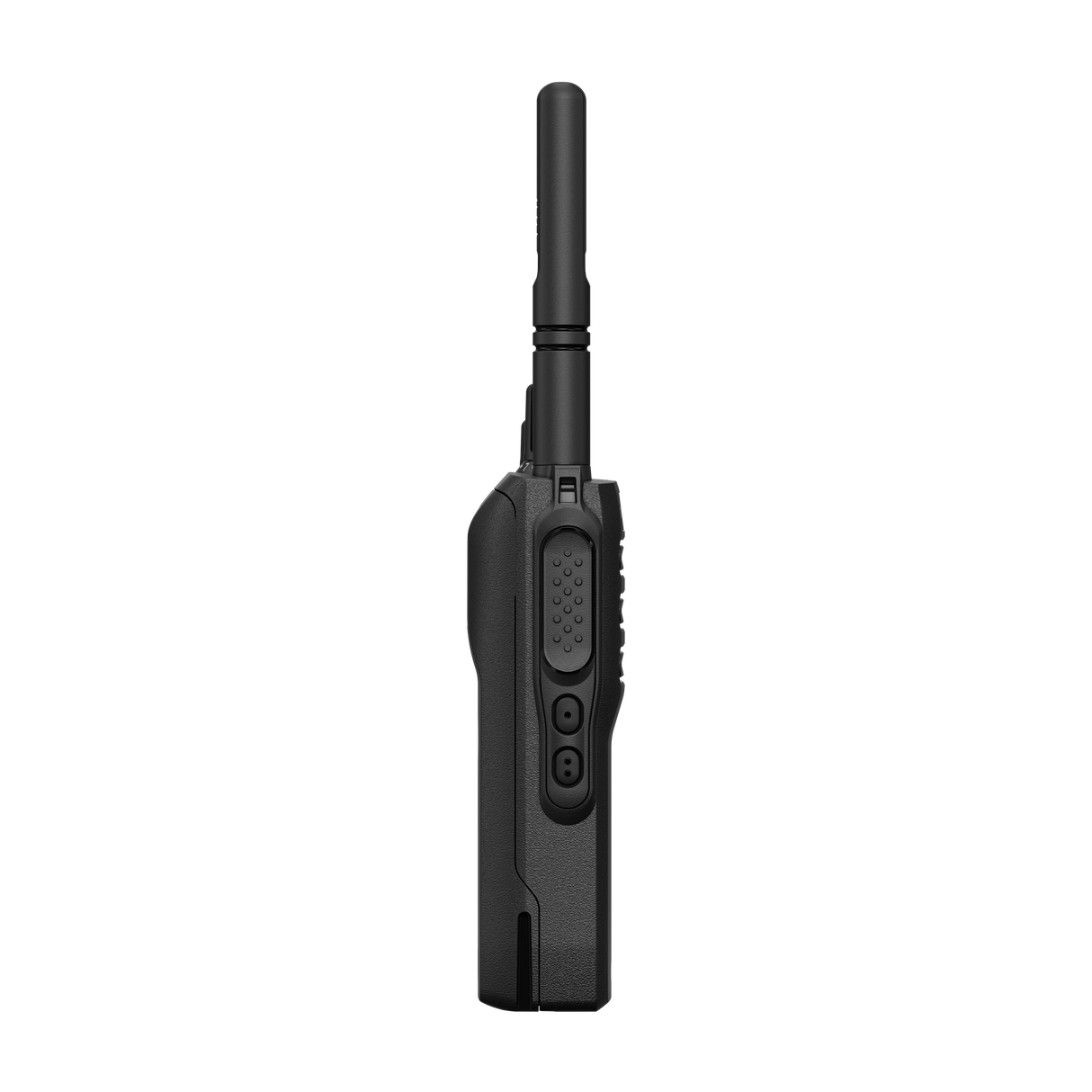

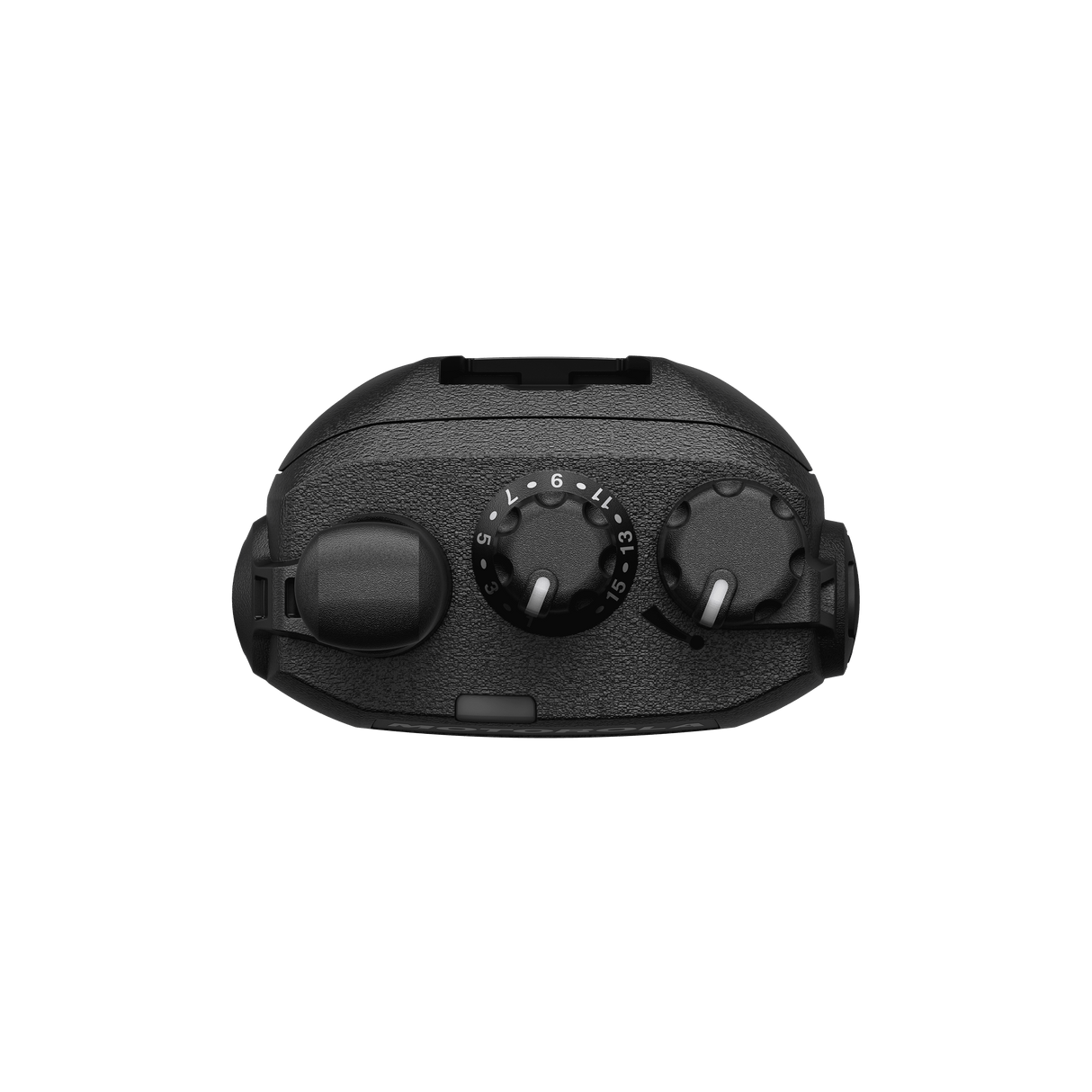

Motorola R2-UA-L2 (UHF Analog)
Regular price
$44995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
A next-level workhorse, the MOTOTRBO R2 marries durability and ergonomics to ensure confident, easy handling. And with superior range, configurable audio and seamless integration, the R2 is a reliable addition to an uninterrupted workday. This model is an analog radio.
General Specifications
Frequency
400-480 MHz
Typical RF Output
High Power
4W
Low Power
1W
Channel spacing
12.5 / 25.01 kHz1
Channel capacity
64
Dimension2 (H x W x D) with battery
PMNN4598 high capacity battery
125mm x 55mm x 36.8 mm
PMNN4600 slim battery
125mm x 55mm x 31.7mm
Weight3 with battery
PMNN4598 high capacity battery
286g
PMNN4600 Slim battery
261g
Battery life4 (analog / digital)
PMNN4598 high capacity battery
19.5 Hours / 26.5 Hours
PMNN4600 Slim battery
17 Hours / 22.5 Hours
Power supply
7.5V (nominal)
FCC description
AZ489FT4971
IC description
109U-89FT4971
Warranty
2-Year Limited Radio Warranty
- 25 kHz channels not available in USA
- Dimensions at grip area
- Excludes antenna
- Typical battery life, 5/5/90 profile at maximum transmitter power. Actual observed runtimes may vary
What's In The Box
- Standard Package
- R2 Radio
- Li-ion battery
- Single-unit charger w/power supply
- Belt clip
- Antenna
- Operating Manual
- Safety Manual
