BRAND: Motorola
PRODUCT TYPE: Handheld Radio
SKU: 19109

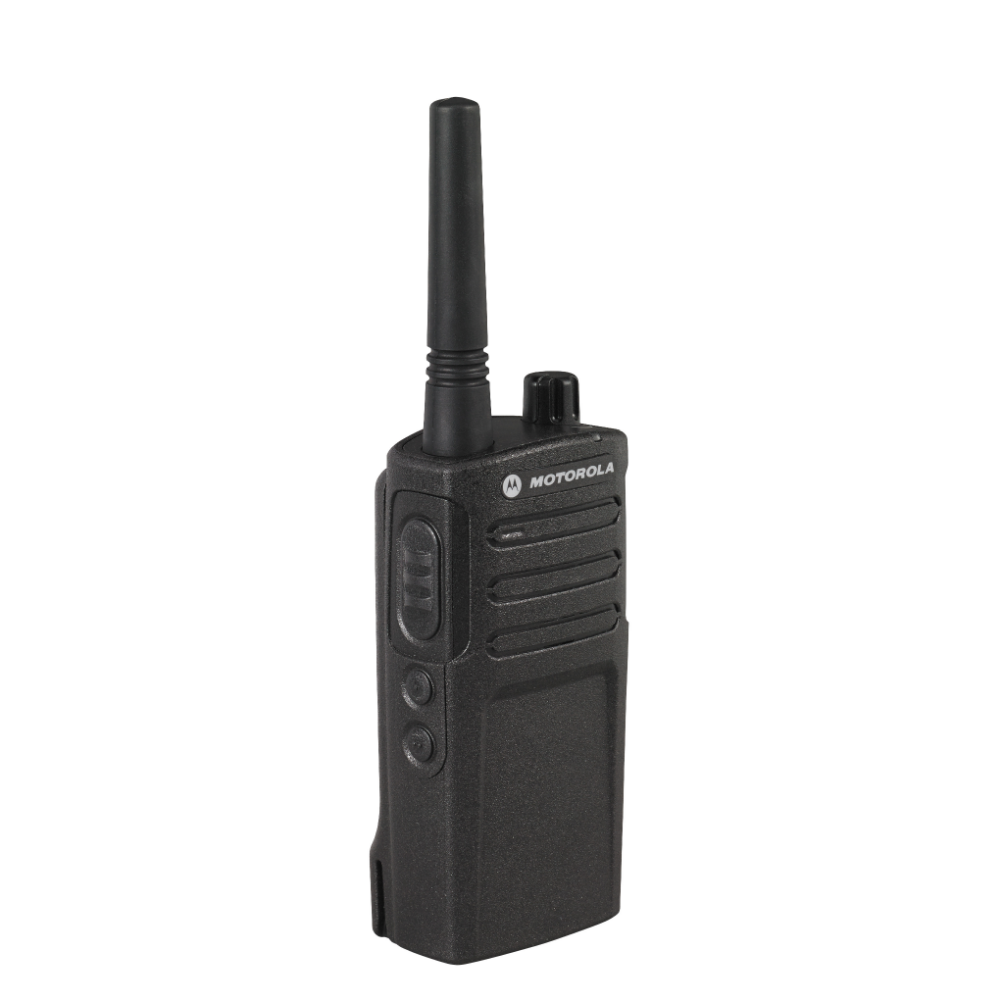

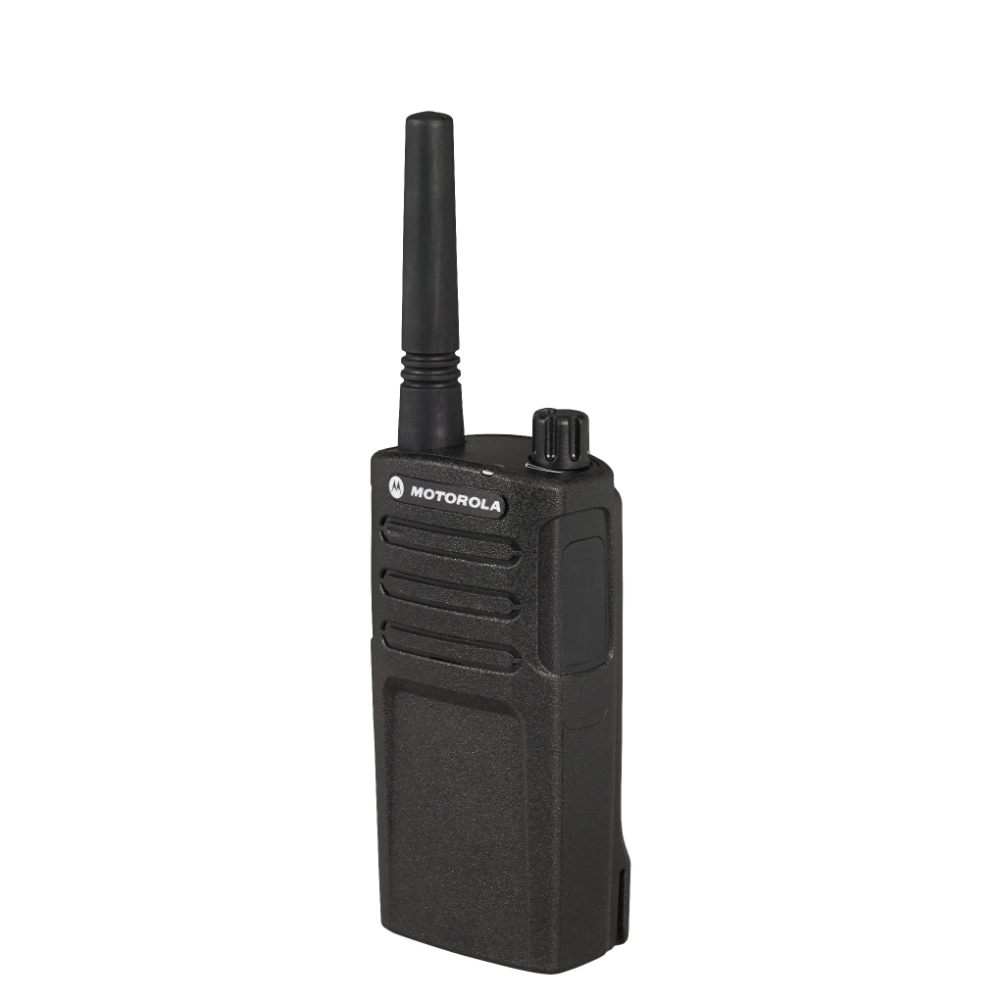

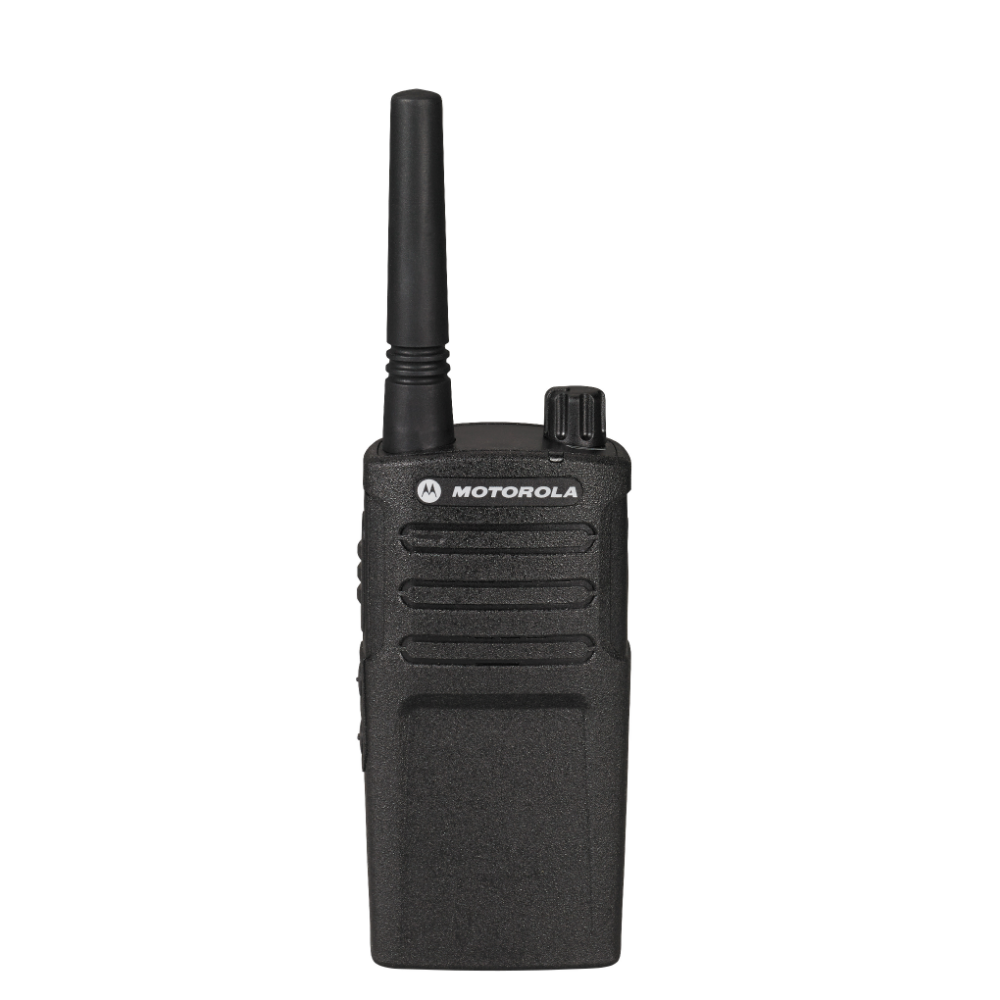

Motorola RMU2040

Pre-Programmed UHF Radio, 99 Channels, 2 Watts

Regular price $21995
Shipping calculated at checkout.

DOCUMENTS

Description

Empower your team with a faster way to communicate. The RMU2040 on-site two-way business radio helps you communicate instantly, without missing a beat. With crisp, clear audio throughout the workplace and exceptional durability, the RMU2040 won’t quit in high noise, harsh conditions, and high use.

The RMU2040 2 watt radio operates on 99 UHF business exclusive frequencies and is FCC Narrowband ready. Enhanced audio quality, a rugged design, and versatile HTML-based customer programming software make this radio an exceptional choice for all of your on-site business needs. Advanced features such as customized channel announcement keep your hands free, so you can focus on the task at hand.

Whether you’re coordinating resources at the construction site or on the manufacturing line, the RMU2040 two-way radio is tested to last. Unleash the power of your RM series radio with accessories that are comfortable, durable and discreet to fit the way you work.

What's in the box

  • Standard Package
  • RM Radio
  • Standard li-ion battery
  • Drop-in charger
  • Charging power supply
  • Swivel holster
  • Operating Manual
  • Safety Manual

Business-exclusive frequencies
Operates on 99 UHF business exclusive frequencies and features 219 PL/DPL codes, including 6 customizable codes to help ensure a clear signal.

Enhanced audio quality
Powerful 1500 mW speaker ensures clear communication without distracting feedback in noisy conditions.

Rugged design
Meets military specifications for sealing against dust, wind, shock, vibration and other adverse conditions. These radios also undergo Motorola’s exclusive Accelerated Life Testing (ALT) that simulates up to 5 years of field use.

Channel Announcement with Voice Alias
Leave your radio on your belt and know exactly what channel you are communicating on. Customize your list of channels by selecting from 16 pre-recorded work functions, such as security, customer service, cashier, etc.*

Power and Coverage
2 Watt UHF radio provides coverage up to 250,000 Sq. Ft./20

Advanced Voice Activation (VOX)
Enables hands-free operation with or without the use of optional accessories.
Antimicrobial Coating
Helps prevent the growth of mold and germs on the surface of the radio.
Customer Programming Software (CPS)
CPS software provides a modern graphical user interface, allowing access to advanced features. Adding RM Series radios to your existing radios fleet is easier than ever. (CPS is available as free Internet download. Separate programming cable required.)

Accessories
RM series radios ship standard with a carry holster with a swivel belt clip that lets you rotate the radio to fit comfortably. Re-use RDX series audio accessories for flexible and dependable performance.

Simplified cloning
Quickly copies settings from radio to radio (between RM series radios or between RM and RDX series radios). Cloning is done with radio-to-radio cloning cable or through the multi-unit charger.

Tricolor LED interface
Allows users to identify radio features and status.

General Specifications

Frequency Range
UHF (450 to 470 MHz)
Audio Output
1500 mW
Channel Capacity
99 Channels
Channel Bandwidth
12.5kHz
Dimensions with:
4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
Standard Li-Ion Battery
4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
High Capacity Li-Ion Battery
8.6 oz (244g)
Weight with:
8.7 oz (247g)
Standard Li-Ion Battery
Up to 15 hours with battery save on or up to 12 hours without battery save.
High Capacity Li-Ion Battery
Available in Q4/2013
Average Battery Life @ 5/5/90: with Standard 2150 mAH Li-Ion Battery
3.7V Li-Ion
with High Capacity 3200 mAH Li-Ion Battery

Battery Voltage


-122 dBm (0.18 µV)
RECEIVER
70 dB @ 12.5 kHz 75 dB @ 25 kHz
Sensitivity (12 dB SINAD)
70 dB
Adjacent Channel Selectivity
90 dB
Intermodulation Rejection
< 5%
Spurious Response Rejection (blocking 1 MHz)
-50 dB
Audio Distortion
-50 dB
CSQ Hum and Noise @ 12.5 kHz
-45 dB
PL Hum and Noise @ 12.5 kHz
< -54 dBm
DPL Hum and Noise @ 12.5 kHz
< -52 dBm
Spurious Emissions (< 1 GHz)
1.5W @ 8 ohms
Spurious Emissions (> 1 GHz)

Audio Output @ < 5% Distortion


2 Watts
TRANSMITTER
1 Watt
RF Output: High (conducted) Low (conducted)
< 1.5 ppm
Frequency Stability
< -45 dBc
Spurs and Harmonics
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
FM Hum and Noise
±2.5 kHz @ 12.5 kHz ±5.0 kHz @ 25.0 kHz
Modulation Limiting
70 dBc
Adjacent Channel Power
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 12.5 kHz
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 25 kHz
+1 to -3 dB
Audio Frequency Response (0.3 - 3.0 kHz)
< 2%
Audio Distortion



MILITARY SPECIFICATIONS
MIL 810 C Methods/ Procedures
Standard
500.1 / Procedure 1
Low Pressure
501.1 / Procedure 1,2
High Temperature
502.1 / Procedure 1
Low Temperature
503.1 / Procedure 1
Temperature Shock
505.1 / Procedure 1
Solar Radiation
506.1 / Procedure 1,2
Rain
507.1 / Procedure 2
Humidity
510.1 / Procedure 1
Dust
514.2 / Procedure 8,10
Vibration
516.2 / Procedure 1,2,5
Shock



ENVIRONMENTAL SPECIFICATIONS
-30ºC to +60ºC (Radio)
Operating Temperature
IP55
Sealing
Polycarbonate Housing passes EIA 603*
Shock and Vibration
Satisfied EIA 603*
Warranty
2-Year Limited Radio Warranty
