BRAND: Motorola
PRODUCT TYPE: Handheld Radio
SKU: 19111

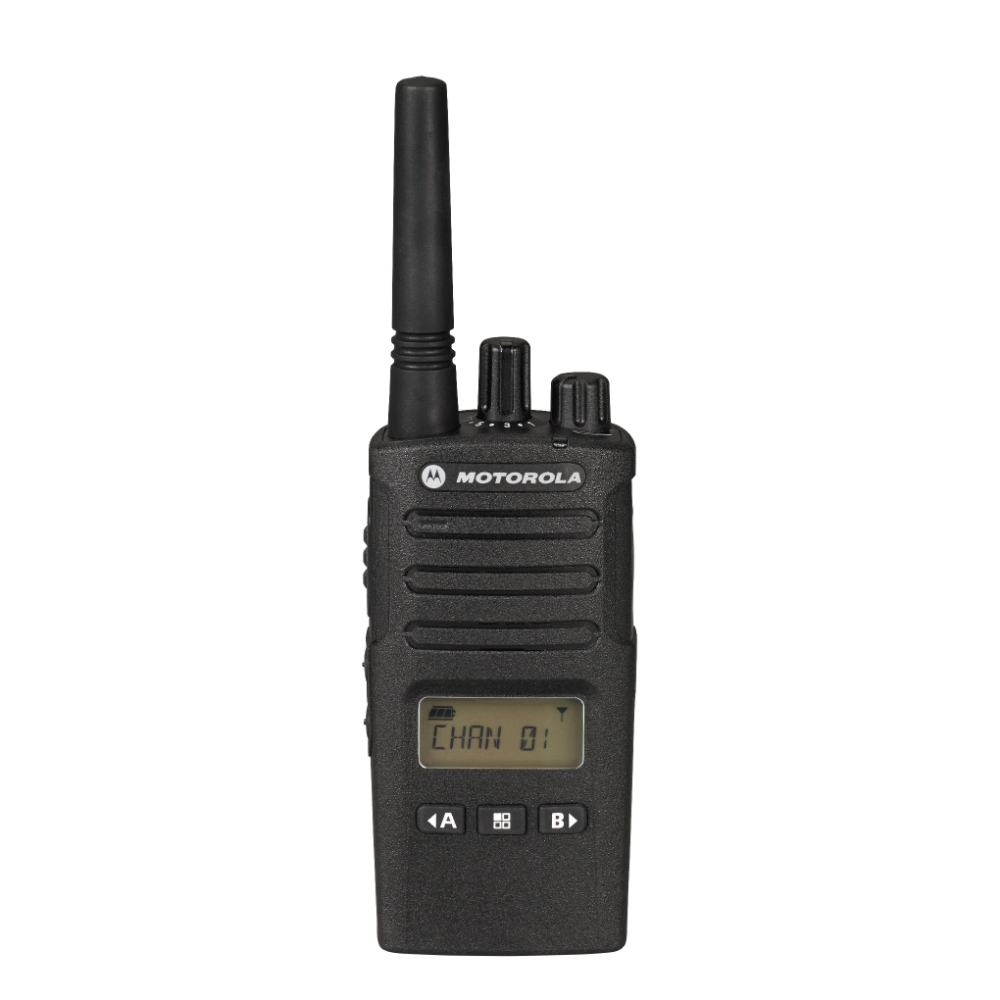

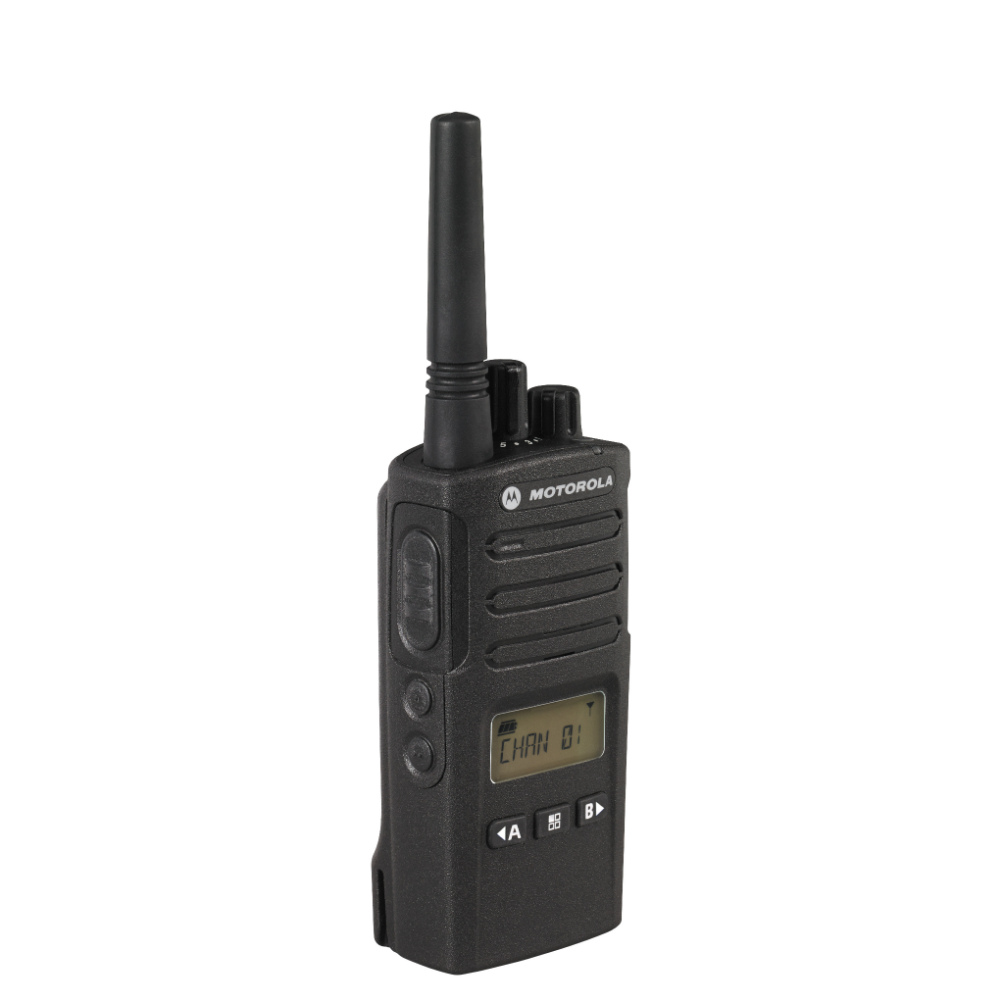

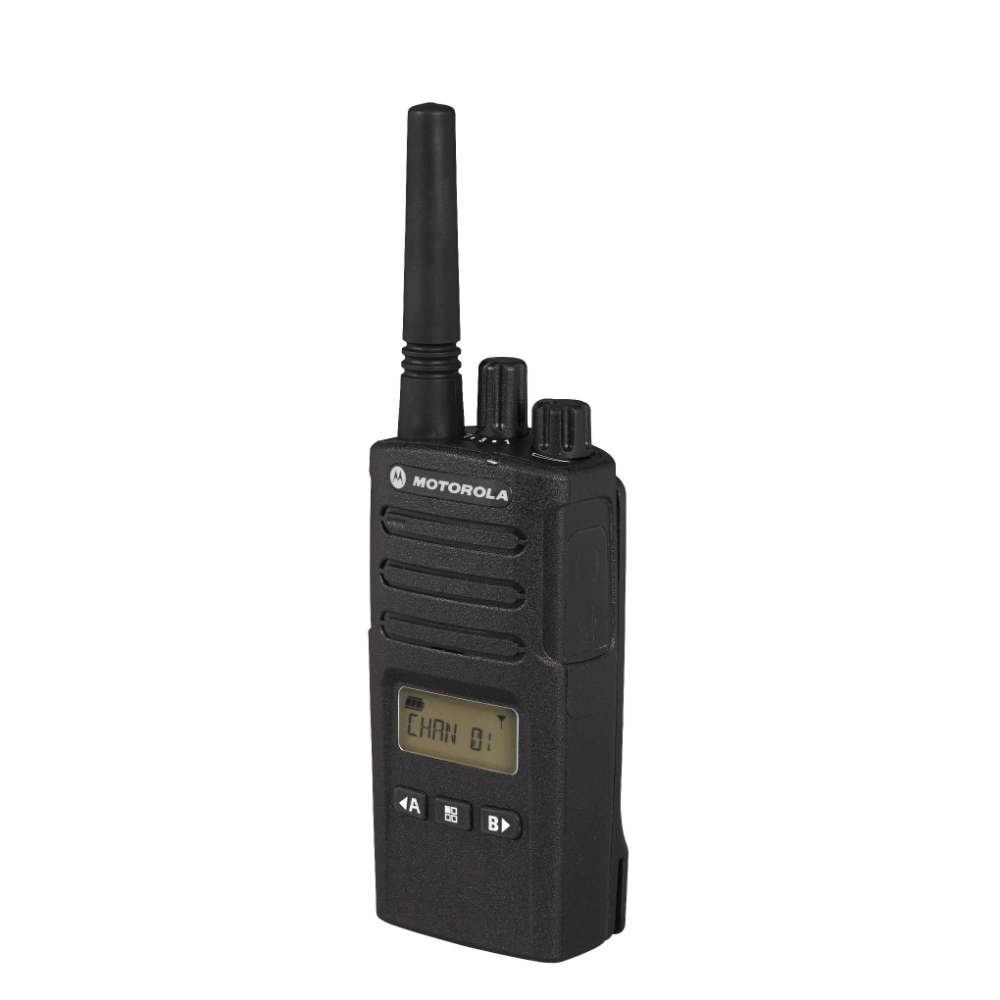

Motorola RMU2080D

Pre-Programmed UHF Radio, Digital, 99 Channels, 2 Watts

Regular price $26995
Shipping calculated at checkout.

DOCUMENTS

Description

Empower your team with a faster way to communicate. The RMU2080D (Display) on-site two-way business radio helps you communicate instantly, without missing a beat. This fully-featured portable combines outstanding quality with excellent affordability to give your operation the competitive edge. With crisp, clear audio throughout the workplace and exceptional durability, the RMU2080D won’t quit in high noise, harsh conditions, and high use.

The RMU2080D 2 watt, two-way radio operates on 99 UHF business exclusive frequencies and is FCC Narrowband ready. An easy to read display and four programmable buttons enables quick access to features. Enhanced audio quality, a rugged design and versatile customer programming software, make this radio an exceptional choice for all of your on-site business needs.

Whether you’re coordinating resources at the construction site or on the manufacturing line, the RMU2080D is tested to last, with high-powered accessories that work overtime for your business.

What's in the box

  • Standard Package
  • RM Radio
  • Standard li-ion battery
  • Drop-in charger
  • Charging power supply
  • Swivel holster
  • Operating Manual
  • Safety Manual

Business Exclusive Frequencies
Operates on 99 UHF business exclusive frequencies and features 219 PL/DPL codes, including 6 customizable codes to help ensure a clear signal.

Easy-to-Read Display
Quickly view your operating channel and radio status at a glance with the easily readable display.

Enhanced audio quality
Powerful 1500 mW speaker ensures clear communication without distracting feedback in noisy conditions.

NOAA Weather Radio
(NWR) Channel 8 is pre-assigned to receive official National Weather Service warnings, watches, forecasts and other hazard information 24 hours a day, 7 days a week. The Weather Channel configuration can be customized based on geographic location.

Channel Announcement with Voice Alias
Leave your radio on your belt and know exactly what channel you are communicating on. Customize your list of channels by selecting from 16 pre-recorded work functions, such as security, customer service,
cashier, etc.*

Power and Coverage
2 Watt UHF radio provides coverage up to 250,000 sq. ft./20

Rugged design
Meets military specifications for sealing against dust, wind, shock, vibration and other adverse conditions. These radios also undergo Motorola’s exclusive Accelerated Life Testing (ALT) that simulates up to 5 years of field use.
Advanced Voice Activation (VOX)
Enables hands-free operation with the use of optional accessories.
Antimicrobial Coating
Helps prevent the growth of mold and germs on the surface of the radio.

Customer Programming Software (CPS)
CPS software provides a modern graphical user interface, allowing access to advanced features. Adding RM Series radios to your existing radios fleet is easier than ever. (CPS is available as free Internet download. Separate programming cable required.)

Simplified cloning
Quickly copies settings from radio to radio when used with accessory.

Tricolor LED interface
Allows users to identify radio features and status.

Disable Channel
Allows users to disable and skip undesirable channels via the customer programming software (CPS).

General Specifications

Frequency Range
UHF (450 to 470 MHz)
Audio Output
1500 mW
Channel Capacity
8 Channels
Channel Bandwidth
12.5kHz
Dimensions with:
4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
Standard Li-Ion Battery
4.5 in H x 2.2 in W x 1.6 in D (115.6 mm H x 57.6 mm W x 40.5 mm D)
High Capacity Li-Ion Battery
9 oz (256g)
Weight with:
9.1 oz (259g)
Standard Li-Ion Battery
Up to 15 hours with battery save on or up to 12 hours without battery save.
High Capacity Li-Ion Battery
Available in Q4/2013
Average Battery Life @ 5/5/90: with Standard 2150 mAH Li-Ion Battery
3.7V Li-Ion
with High Capacity 3200 mAH Li-Ion Battery

Battery Voltage


-122 dBm (0.18 µV)
RECEIVER
70 dB @ 12.5 kHz 75 dB @ 25 kHz
Sensitivity (12 dB SINAD)
70 dB
Adjacent Channel Selectivity
90 dB
Intermodulation Rejection
< 5%
Spurious Response Rejection (blocking 1 MHz)
-50 dB
Audio Distortion
-50 dB
CSQ Hum and Noise @ 12.5 kHz
-45 dB
PL Hum and Noise @ 12.5 kHz
< -54 dBm
DPL Hum and Noise @ 12.5 kHz
< -52 dBm
Spurious Emissions (< 1 GHz)
1.5W @ 8 ohms
Spurious Emissions (> 1 GHz)

Audio Output @ < 5% Distortion


2 Watts
TRANSMITTER
1 Watt
RF Output: High (conducted) Low (conducted)
< 1.5 ppm
Frequency Stability
< -45 dBc
Spurs and Harmonics
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
FM Hum and Noise
±2.5 kHz @ 12.5 kHz ±5.0 kHz @ 25.0 kHz
Modulation Limiting
70 dBc
Adjacent Channel Power
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 12.5 kHz
-36 dbm for f < 1GHz, -30 dbm for f> 1GHz
Spurious Emissions @ 25 kHz
+1 to -3 dB
Audio Frequency Response (0.3 - 3.0 kHz)
< 2%
Audio Distortion



MILITARY SPECIFICATIONS
MIL 810 E Methods/ Procedures
Standard
500.3 / Procedure 2
Low Pressure
501.3 / Procedure 1,2
High Temperature
502.3 / Procedure 1,2
Low Temperature
503.3 / Procedure 1
Temperature Shock
505.3 / Procedure 1
Solar Radiation
506.3 / Procedure 1,2
Rain
507.3 / Procedure 2,3
Humidity
510.3 / Procedure 1
Dust
514.4 / Procedure 1
Vibration
516.4 / Procedure 1,4
Shock



ENVIRONMENTAL SPECIFICATIONS
-30ºC to +60ºC (Radio)
Operating Temperature
IP55
Sealing
Polycarbonate Housing passes EIA 603*
Shock and Vibration
Satisfied EIA 603*
Warranty
2-Year Limited Radio Warranty
